3.2.5 Installing Deck
CAUTION
Draper supports in deck are slippery due to graphite coating.
1008403
A
B
C

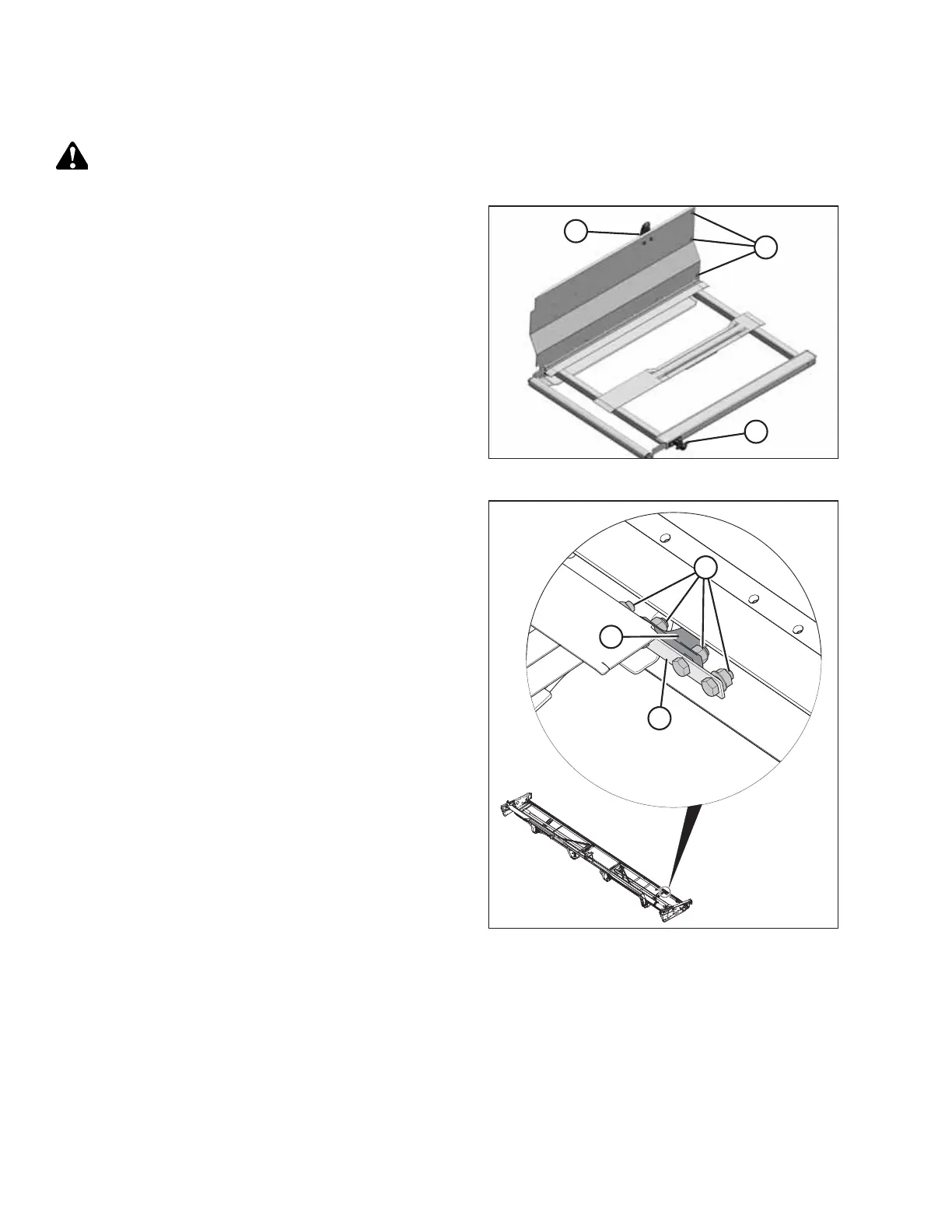

Figure 3.74: Deck Extension Backsheet
1. Remove three bolts and nuts (A) from deck extension
backsheet. Retain for reinstallation.
2. Remove deck support assembly (B) from deck extension
backsheet. Retain for reinstallation.
3. Remove deck support casting (C) at front of extension deck.
Retain for reinstallation.
C
1013577
A
B
Figure 3.75: Cutterbar Deck Support
4. Remove four nuts (A) at inboard deck front support and
remove bar (B). Do NOT remove casting (C). Retain for
reinstallation.
