215184 51 Revision A

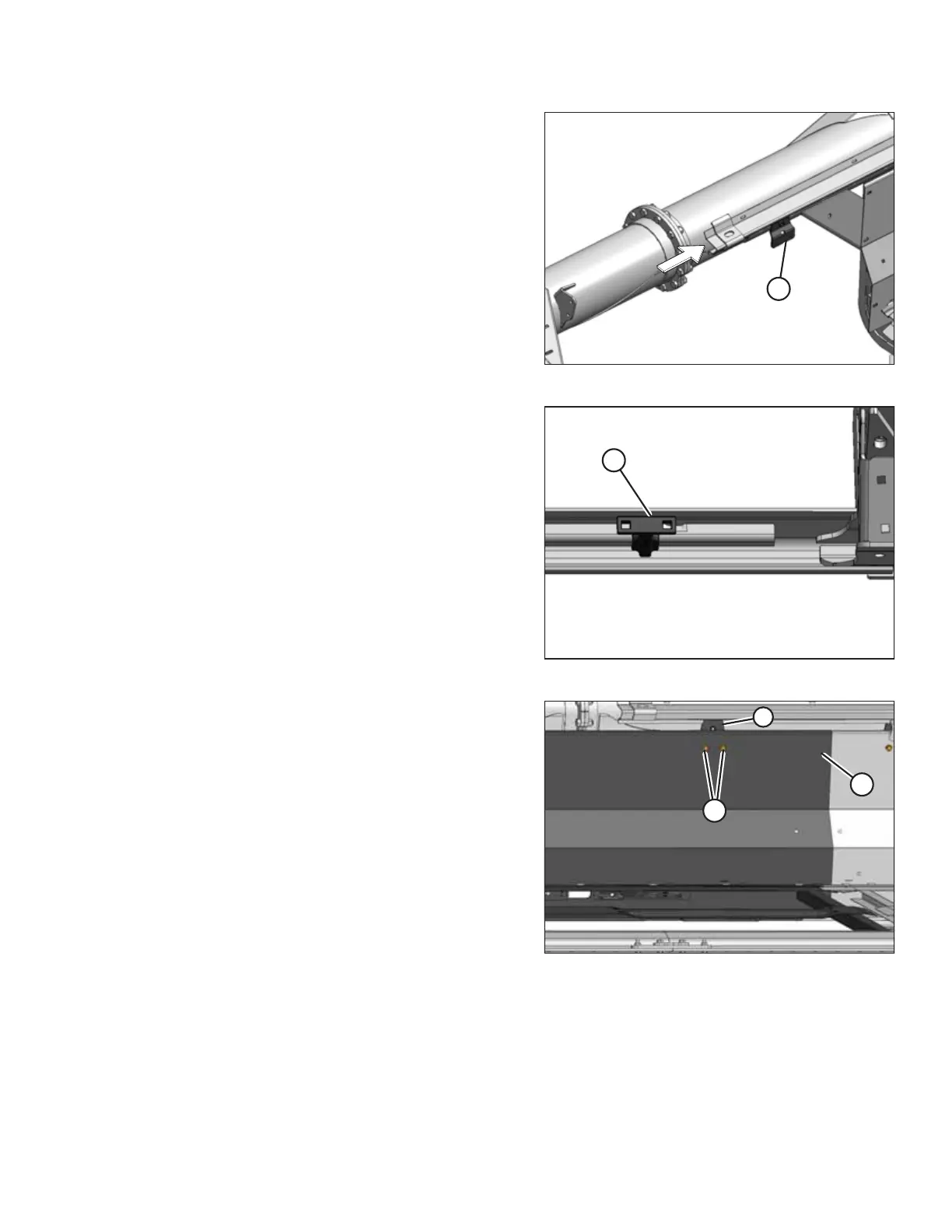

Figure 3.76: Backtube Deck Support
5. Install deck support assembly (A) removed in Step 2, page
50. Slide it on from the outboard end of track on backtube.
Figure 3.77: Cutterbar Deck Support
6. Position deck support casting (A), removed in Step 3, page
50, inside cutterbar from the backside. Slide onto support
angle at the outboard location shown.
7. Position deck extension in header. Use wooden blocks to
support deck.
Figure 3.78: Deck Extension Backsheet
8. Attach backsheet (A) to support assembly (B) on the
backtube with existing hardware (C).
ASSEMBLING THE HEADER AND FLOAT MODULE
