215184 52 Revision A

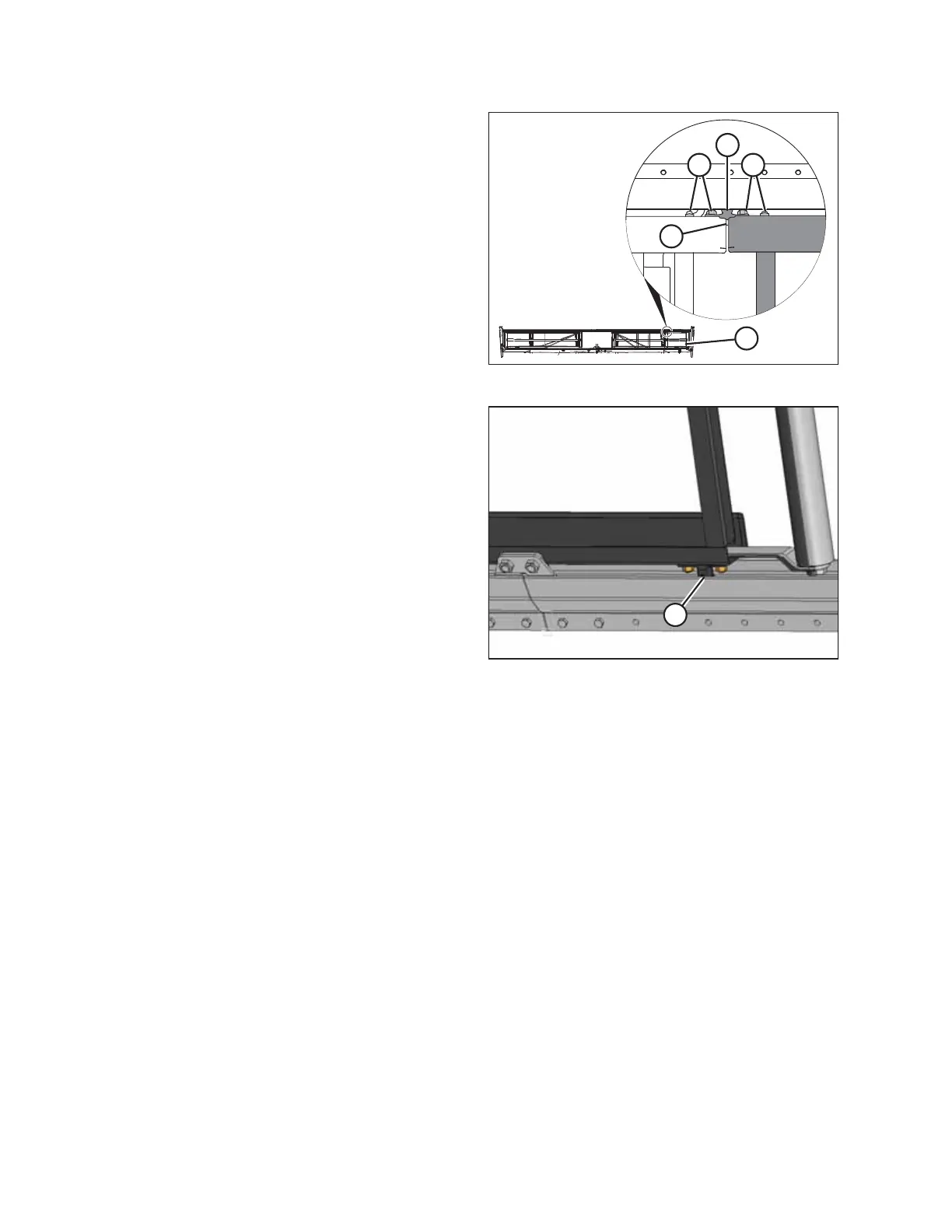

Figure 3.79: View from below Deck
9. Attach deck extension (A) to the existing deck at front
cutterbar support (B) with bar (C) and four existing nuts and
bolts (D).
Figure 3.80: Deck Underside
10. Attach support casting (A) removed in Step 3, page 50 to
the deck with existing hardware. Do NOT fully tighten.
ASSEMBLING THE HEADER AND FLOAT MODULE
