4.3 Loading with Two Forklifts
WARNING
Equipment used for loading and unloading must meet or exceed the minimum specified requirements. Using
inadequate equipment may result in vehicle tipping, machine damage, or chain breakage.
For minimum lifting equipment requirements, refer to 12.3 Lifting Equipment Requirements, page 515.
IMPORTANT:
To improve forklift load stability and prevent damage to the header/float module, lift the header in the upright position
using the fork slider channels (refer to 4.1 Loading with One Forklift: Upright Position, page 143). If you must lift the header
from the lowered position, proceed cautiously to avoid damaging or scratching the header/float module.

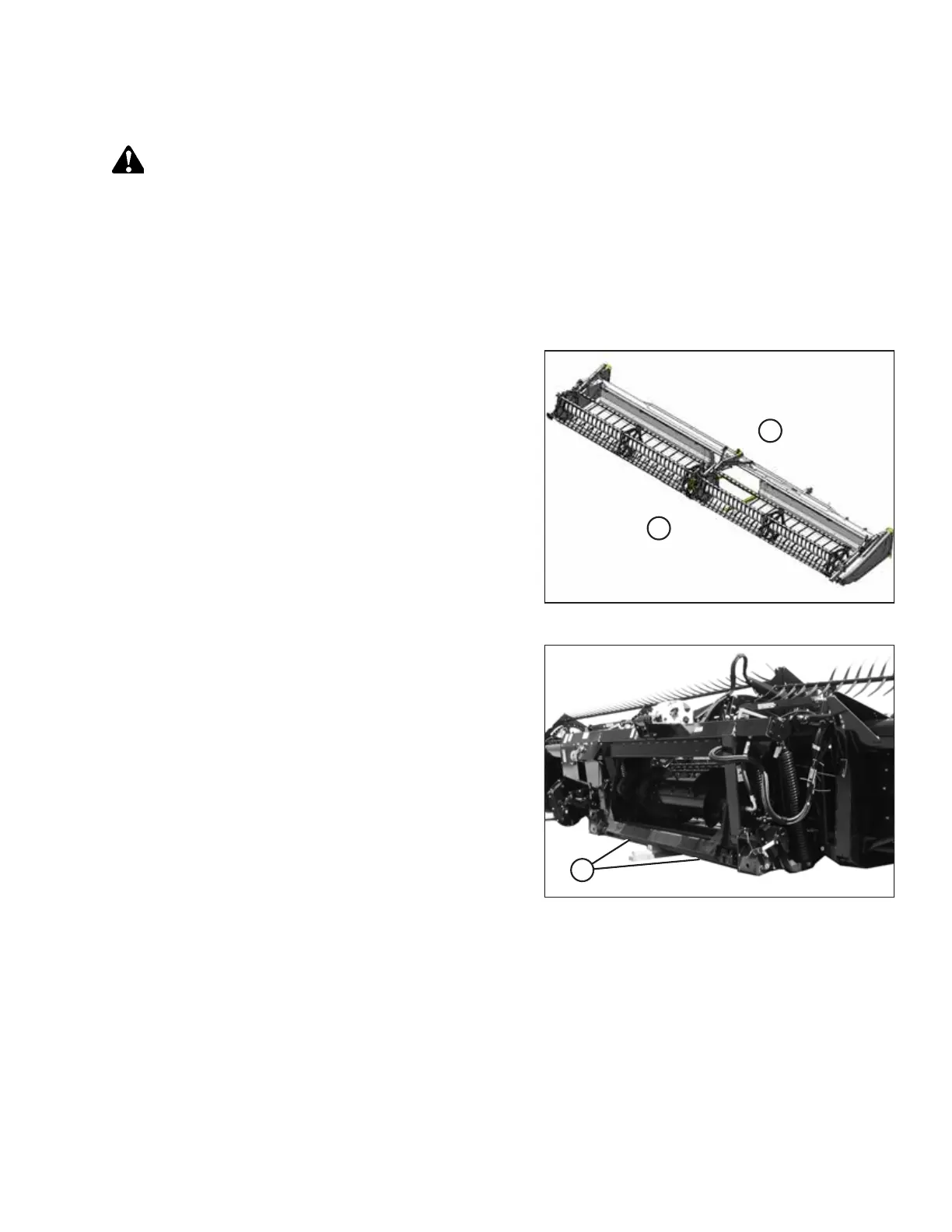

Figure 4.11: Header
1. Position forklifts at front (A) and back (B) of the header.
Figure 4.12: Forks under Float Module
2. With one forklift, position forklift forks (A) underneath the
lower beam structure.
LOADING HEADER FOR TRANSPORT TO DEALERSHIP
