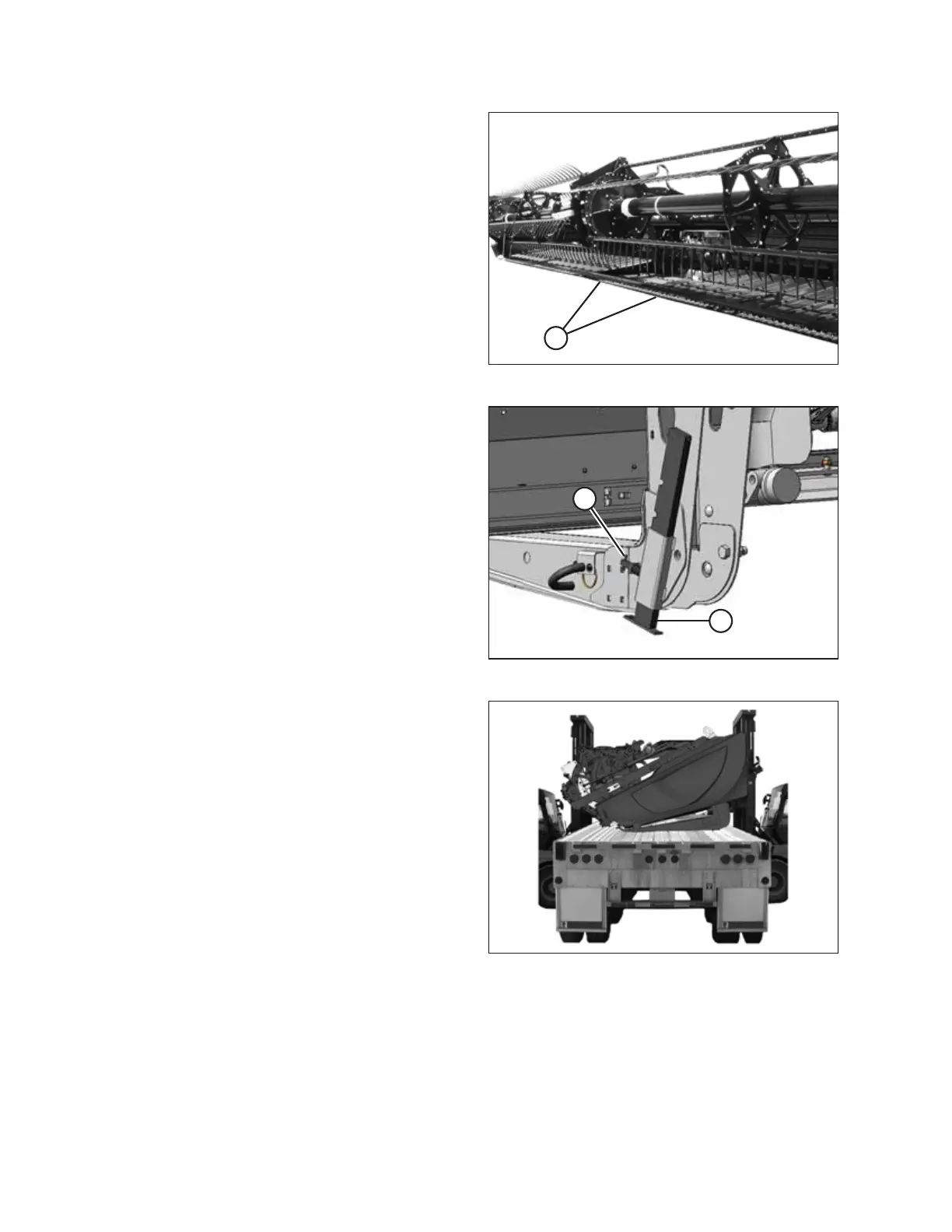

Figure 4.13: Front of Header
3. With the second forklift, position forks underneath
cutterbar (A).
4. Slowly raise header about 150 mm (6 in.) off the ground.
Figure 4.14: Raised Header Stand
5. Raise header stand (B) by pulling pin (A), raising stand, and
releasing pin to secure stand in place.
NOTE:
The header stand is used to support the header off the
ground and should be in the raised position when
transporting the header on a flat deck.
Figure 4.15: Header on Flat Deck
6. Slowly raise both forklifts until header clears trailer deck by
102–204 mm (4–8 in.).
7. Slowly back truck deck under header.
8. Place wooden blocks under cutterbar and float module
frame as required to stabilize header.
9. Lower header onto deck.
10. Slowly back forklifts away from deck.
LOADING HEADER FOR TRANSPORT TO DEALERSHIP
