8.16 Repositioning Right Draper Deflector Angle
The right draper deflector angle is shipped inside the header right endsheet. Install the deflector as follows:
1. Stop engine, and remove key from ignition.
1016499
A

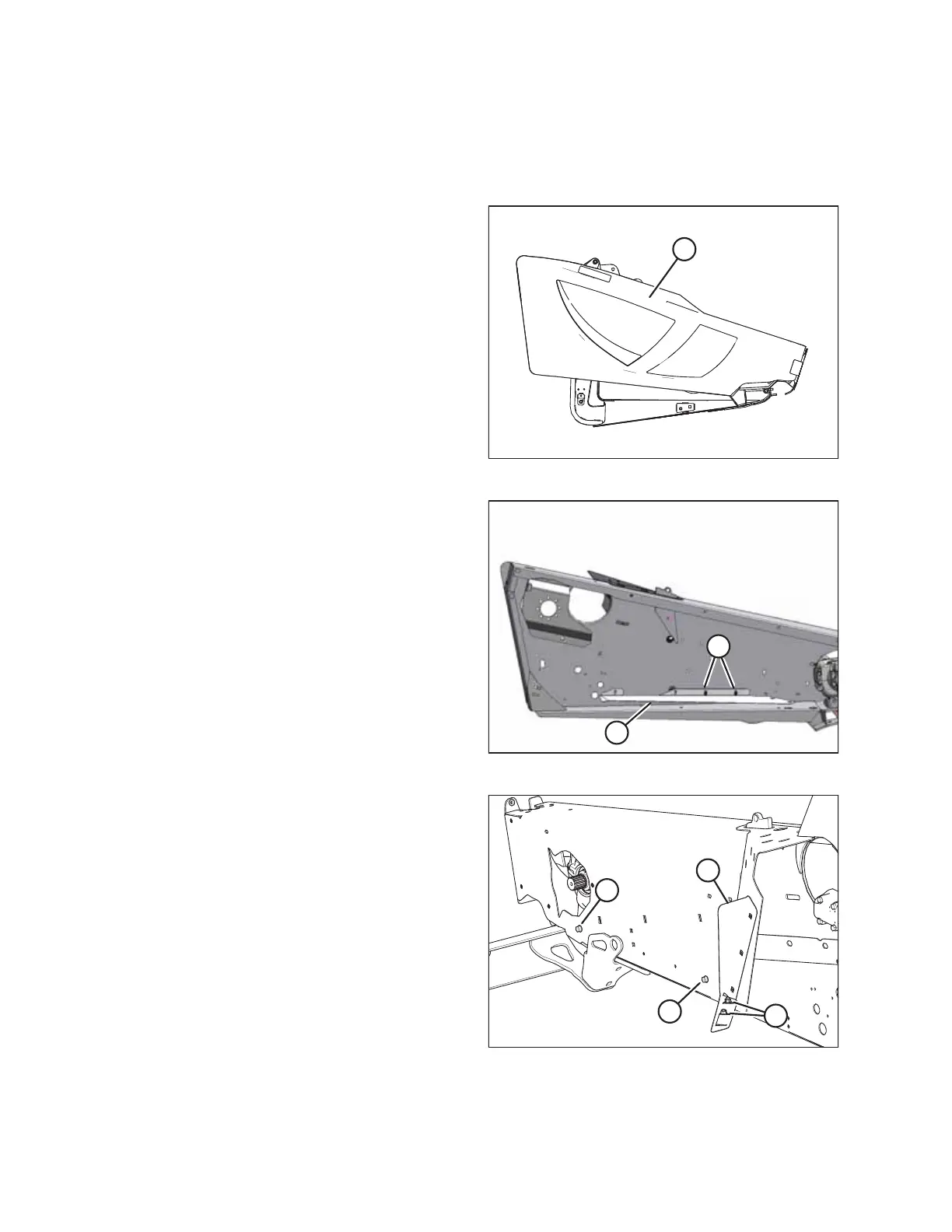

Figure 8.54: Header Right Endshield
2. Open right endshield (A).
1011604
A
B
Figure 8.55: Right Endsheet
3. Remove two screws (A) and deflector angle (B) from inside
the endshield compartment. Retain deflector angle and
screws for reinstallation.
4. Close endshield.
NOTE:
Some parts removed from illustrations for clarity.
1011591
A
A
C
B
Figure 8.56: Right Endsheet
5. At inboard side of right endsheet, remove screws (A).
Retain for reuse later in the procedure.
6. At lower end of deflector (B), remove bolts and nuts (C).
Retain for reuse later in the procedure.
