MacDon D1 Series - Page 315

215184 291 Revision A
1011593
A
B
C
D
E

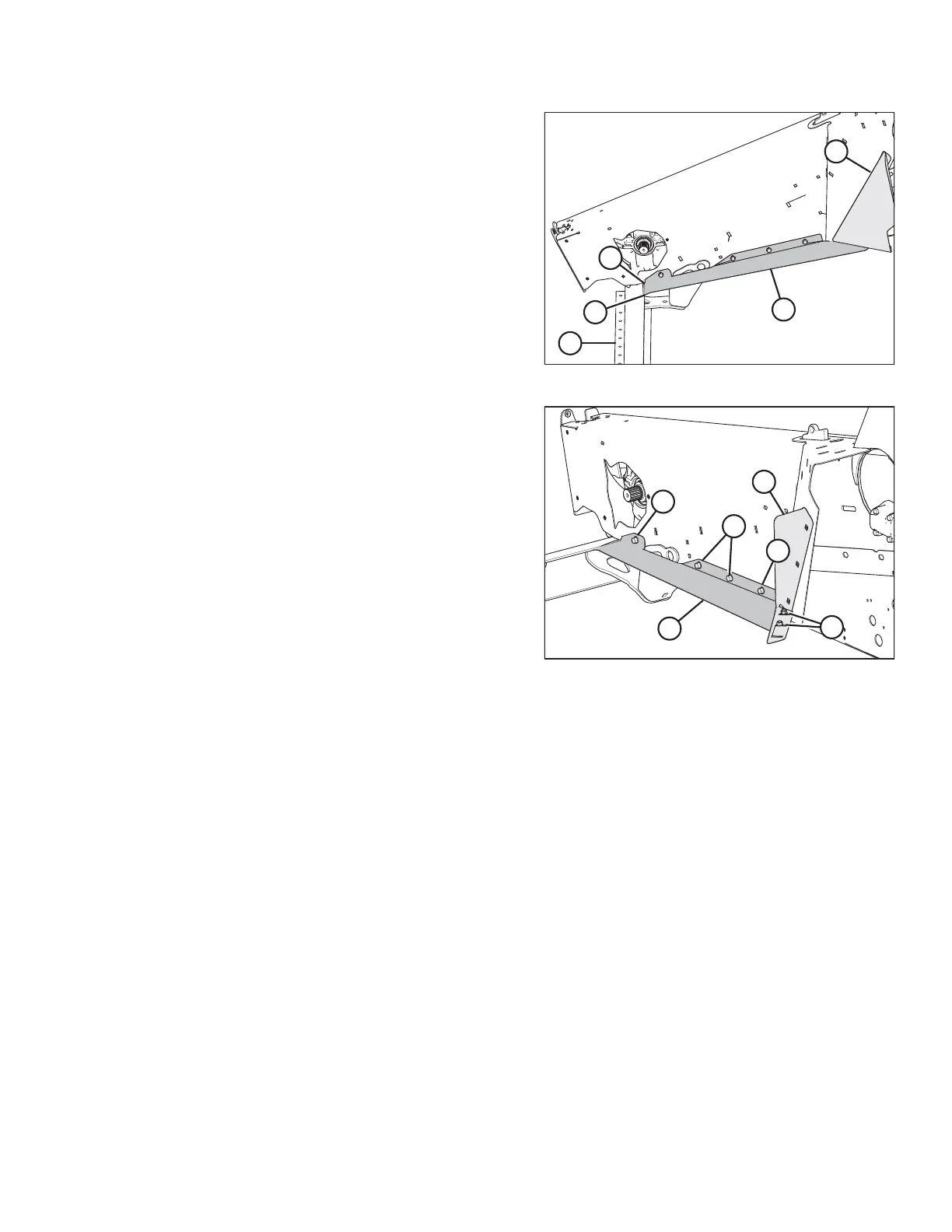

Figure 8.57: Right Endsheet
7. Position deflector angle (A) against the inward side of the
endsheet and deflector (B). The end of the deflector angle
furthest from cutterbar (C) fits under deflector (B).
8. Adjust deflector angle (A) downward to eliminate gaps
between deflector angle (A) and cutterbar (C) at corner (D).
9. Corner (E) should contact the cutterbar first. If necessary,
reduce bend angle of deflector angle.
10. Adjust deflector angle height as needed to eliminate gaps
at cutterbar.
1011587
A
B
C
C
E
D
Figure 8.58: Right Endsheet
11. Attach deflector angle (A) to endsheet with screws (B)
(retained from Step 3, page 290) and (C) (retained from
Step 5, page 290).
12. Attach deflector angle to deflector (D) using bolts and
nuts (E) (retained from Step 6, page 290).
PERFORMING PREDELIVERY CHECKS
