6.2 FM100 Feed Auger Configurations
The FM100 feed auger can be configured to suit various crop conditions; there are five configurations available.

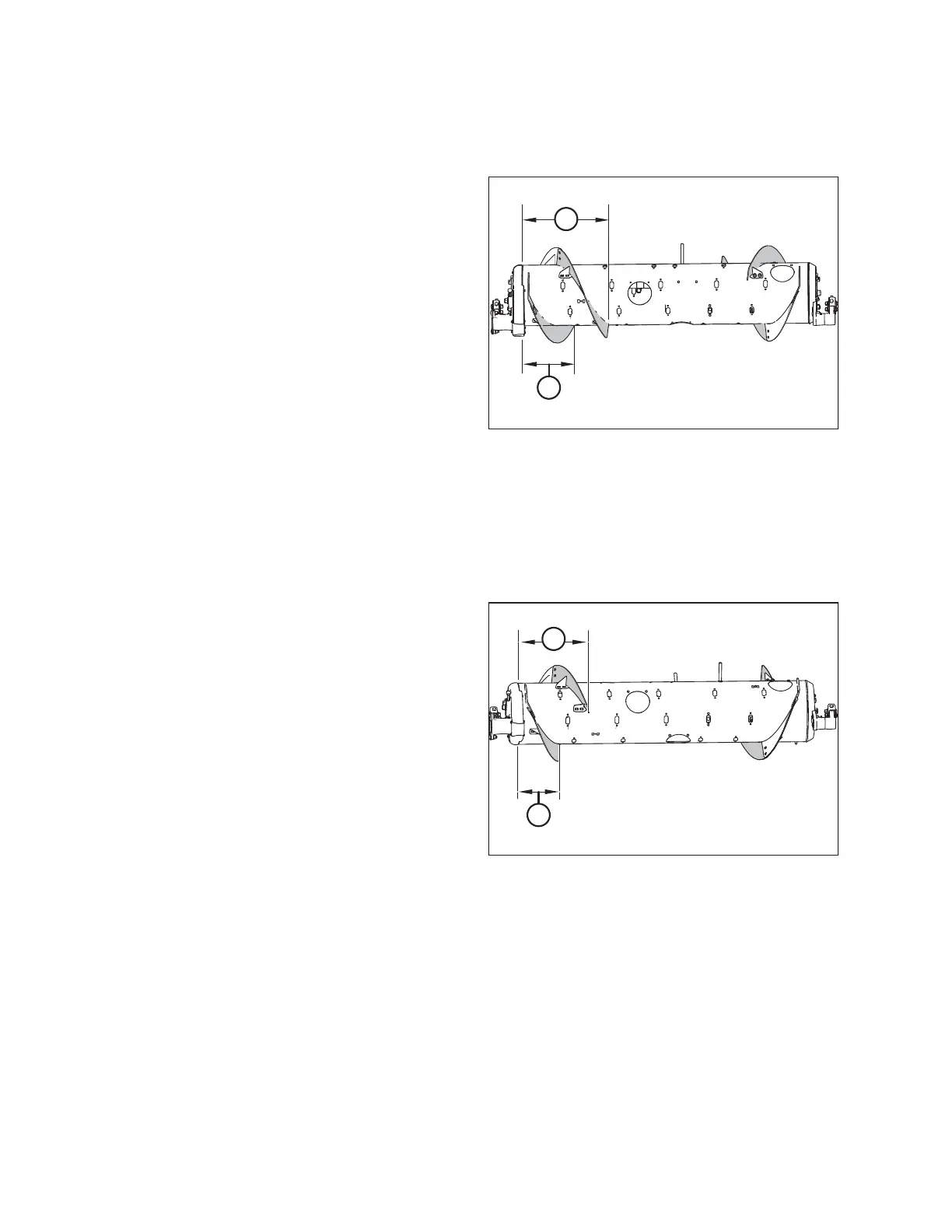

Figure 6.7: Narrow Configuration – Rear View
A - 514 mm (20 1/4 in.) B - 356 mm (14 in.)
NOTE:
Dimensions (A) and (B) are the same for both ends of the auger.
They should be within 15 mm (9/16 in.) of the numbers given.
Narrow configuration is a standard configuration for the
following combines:
• AGCO IDEAL
™
Series
• Gleaner R6/75, R6/76, S6/77, S6/7/88, S96/7/8
• New Holland CR 920/940/960, 9020/40/60/65, 6090/7090,
8060/8070/8080
Narrow configuration uses 4 long bolt-on flightings (2 on the left
and 2 on the right) and 18 feed auger fingers are
recommended.
To convert to Narrow configuration from Medium or Wide configuration, refer to 6.2.3 Converting from Medium
Configuration or Wide Configuration to Narrow Configuration, page 185.
To convert to Narrow configuration from Ultra Narrow configuration, refer to 6.2.4 Converting from Ultra Narrow
Configuration to Narrow Configuration, page 187.
Figure 6.8: Medium Configuration – Rear View
A - 410 mm (16 1/8 in.) B - 260 mm (10 1/4 in.)
NOTE:
Dimensions (A) and (B) are the same for both ends of the auger.
They should be within 15 mm (9/16 in.) of the numbers given.
Medium configuration is a standard configuration for the
following combines:
• Case IH 2300/2500 Series
• Case IH 5/6/7088, 7/8010, 7/8/9120, 5/6/7130, 7/8/9230,
5/6/7140, 7/8/9240, 5/6/7150, 7/8/9250
• Challenger 66/67/680B, 54/560C, 54/560E
• CLAAS 56/57/58/590R, 57/58/595R, 62/63/64/65/66/670,
73/74/75/76/77/780, 7000/8000
• John Deere 95/96/97/9860, 95/96/97/9870,
S65/66/67/68/690, T670, S76/77/78/790
• Massey Ferguson 96/97/9895, 9520/40/60, 9545/65, 9380
• New Holland CR 970/980, 9070/9080, 8090/9090,
X.90, X.80, 10.80/10.90
• New Holland CX 8X0, 80X0, 8.X0, 8080/8090
• Rostselmash Torum 760/780
• Versatile RT490
Medium configuration is an optional configuration for AGCO IDEAL
™
Series.
Medium configuration uses 4 short bolt-on flightings (2 on the left and 2 on the right) and 22 feed auger fingers are
recommended.
