215184 179 Revision A
To convert to Medium configuration from Narrow or Ultra Narrow configuration, refer to 6.2.1 Converting from Ultra
Narrow Configuration or Narrow Configuration to Medium Configuration, page 181.
To convert to Medium configuration from Wide configuration, refer to 6.2.2 Converting from Wide Configuration to
Medium Configuration, page 183.

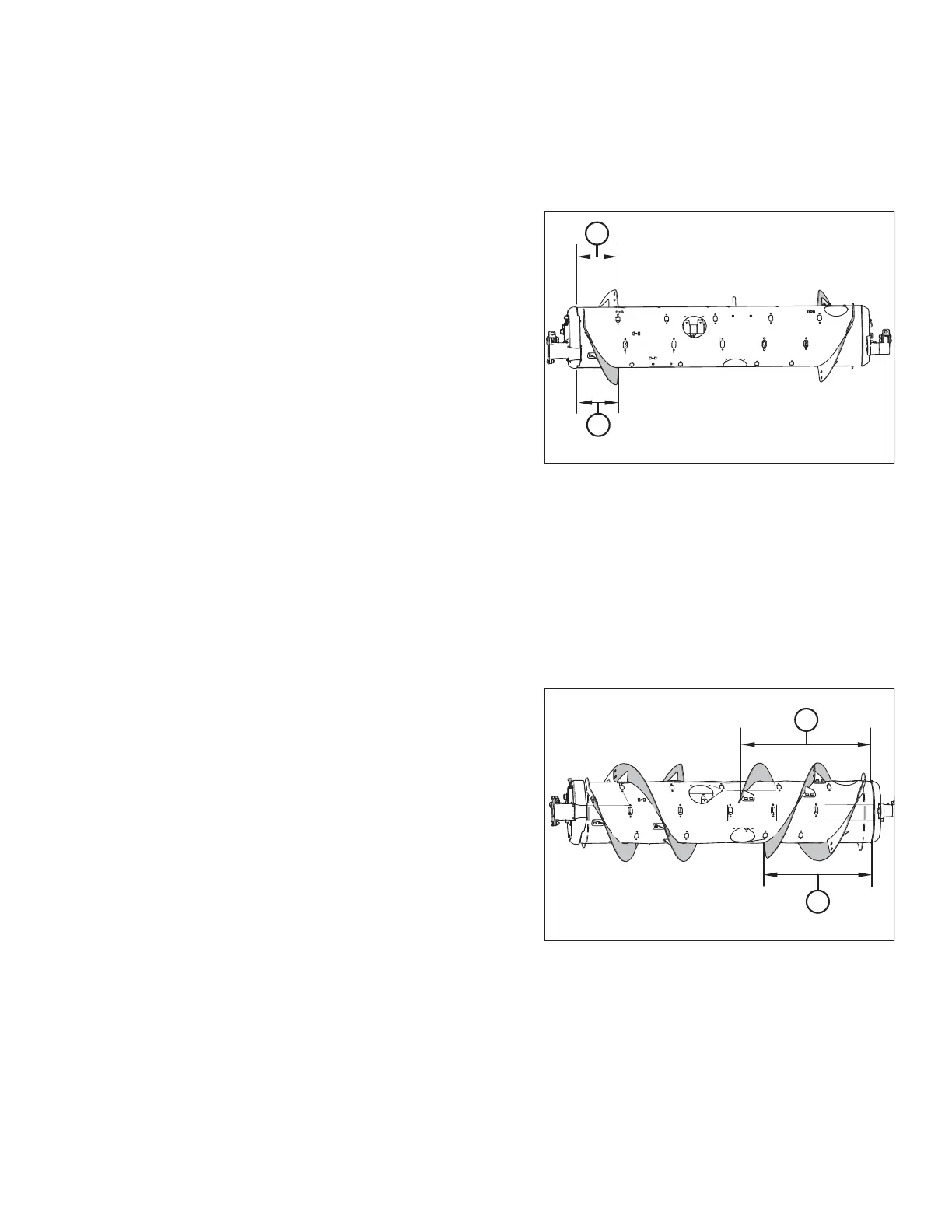

Figure 6.9: Wide Configuration – Rear View
A - 257 mm (10 1/8 in.) B - 257 mm (10 1/8 in.)
NOTE:
Dimensions (A) and (B) are the same for both ends of the auger.
They should be within 15 mm (9/16 in.) of the numbers given.
Wide configuration is an optional configuration for the
following combines:
• Challenger 670B/680B, 540C/560C, 540E/560E
• CLAAS 590R/595R, 660/670, 760/770/780, 8000
• John Deere T670
• Massey Ferguson 9895, 9540, 9560, 9545, 9565, 9380
• New Holland CX 8X0, 80X0, 8.X0
Wide configuration uses 2 short bolt-on flightings (1 on the left
and 1 on the right) and 30 feed auger fingers are
recommended.
NOTE:
This configuration may increase combine capacity on wide feeder house combines in certain crop conditions.
To convert to Wide configuration from Medium configuration, refer to 6.2.5 Converting from Medium Configuration to
Wide Configuration or Ultra Wide Configuration, page 188.
To convert to Wide configuration from Ultra Narrow or Narrow configuration, refer to 6.2.6 Converting from Ultra Narrow
or Narrow Configuration to Wide or Ultra Wide Configuration, page 190.
Figure 6.10: Ultra Narrow Configuration – Rear View
A - 760 mm (29 15/16 in.) B - 602 mm (23 11/16 in.)
NOTE:
Dimensions (A) and (B) are the same for both ends of the auger.
They should be within 15 mm (9/16 in.) of the numbers given.
Ultra Narrow configuration is an optional configuration that
may improve feeding performance on combines with narrow
feeder houses. It may also be helpful when harvesting rice.
Ultra Narrow configuration uses 8 long bolt-on flightings (4 on
the left and 4 on the right) and 18 auger fingers are
recommended.
NOTE:
You will need to drill holes in the flighting and in the drum to
install the extra flighting.
To convert to Ultra Narrow configuration from Medium or Wide configuration, refer to 6.2.8 Converting from Medium
Configuration or Wide Configuration to Ultra Narrow Configuration, page 192.
To convert to Ultra Narrow configuration from Narrow configuration, refer to 6.2.9 Converting from Narrow Configuration
to Ultra Narrow Configuration, page 196.
FLOAT MODULE SETUP AT DEALER
