MacDon D1 Series - Setting Deck Position

215184 55 Revision A
1008418
A
B

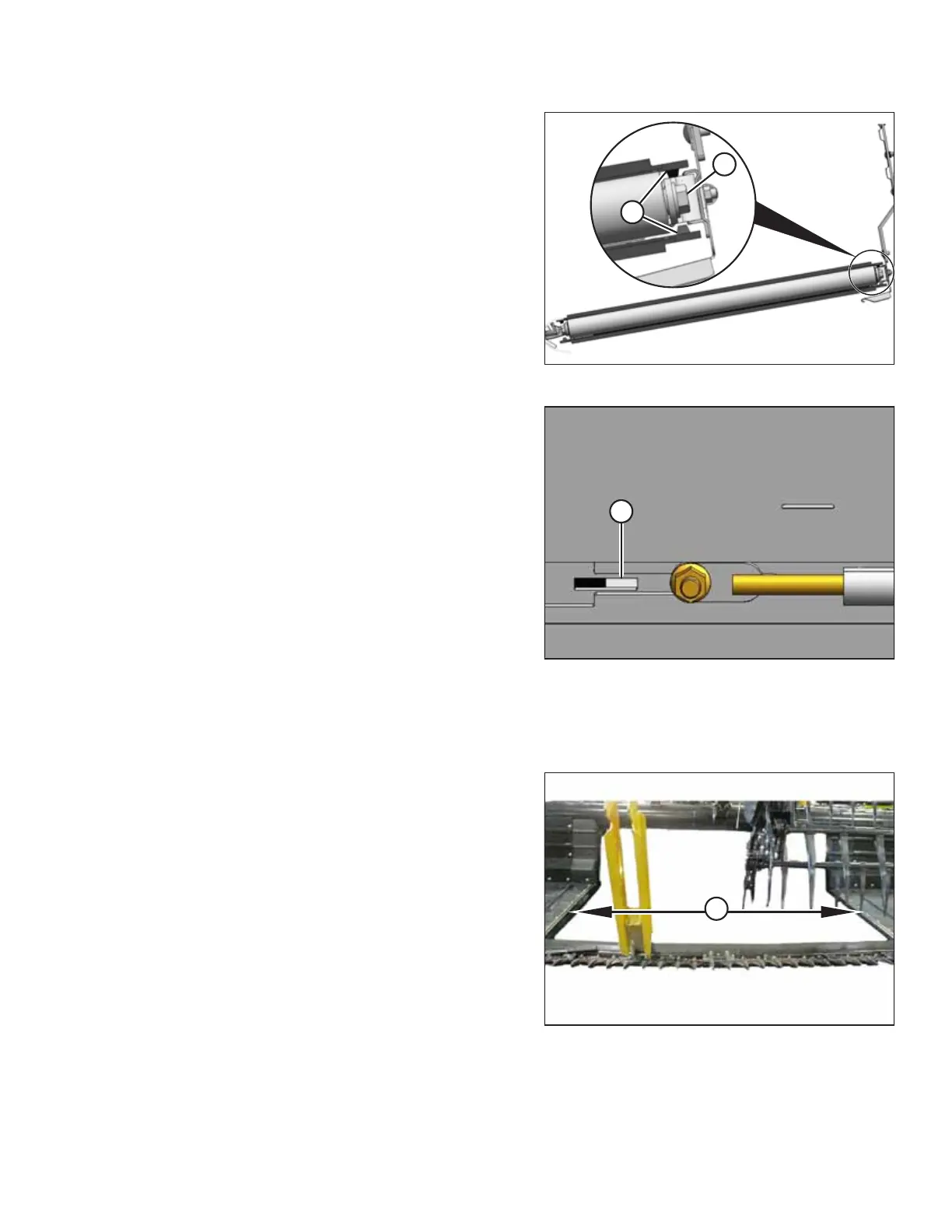

Figure 3.86: Idler Roller
7. Ensure idler roller (A) is between draper guides (B).
1008647
A
Figure 3.87: Tension Adjuster – Left Shown, Right
Opposite
NOTE:
Draper tension should be just enough to prevent slipping
and keep draper from sagging below cutterbar.
8. Ensure white bar (A) is about halfway in the window. If the
side draper tension requires adjustment, refer to 8.13
Adjusting Draper Tension, page 284.
3.2.7 Setting Deck Position
1009155
A
Figure 3.88: Deck Position
1. Adjust deck position (A) 1920 mm (75 1/2 in.) from
existing deck.
ASSEMBLING THE HEADER AND FLOAT MODULE
