215184 355 Revision A
Checking Reel Height Sensor Voltages – Case IH Combines
WARNING
Clear the area of other persons, pets etc. Keep children away from machinery. Walk around the machine to be sure no
one is under, on, or close to it.
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the combine
operator’s manual for updates.

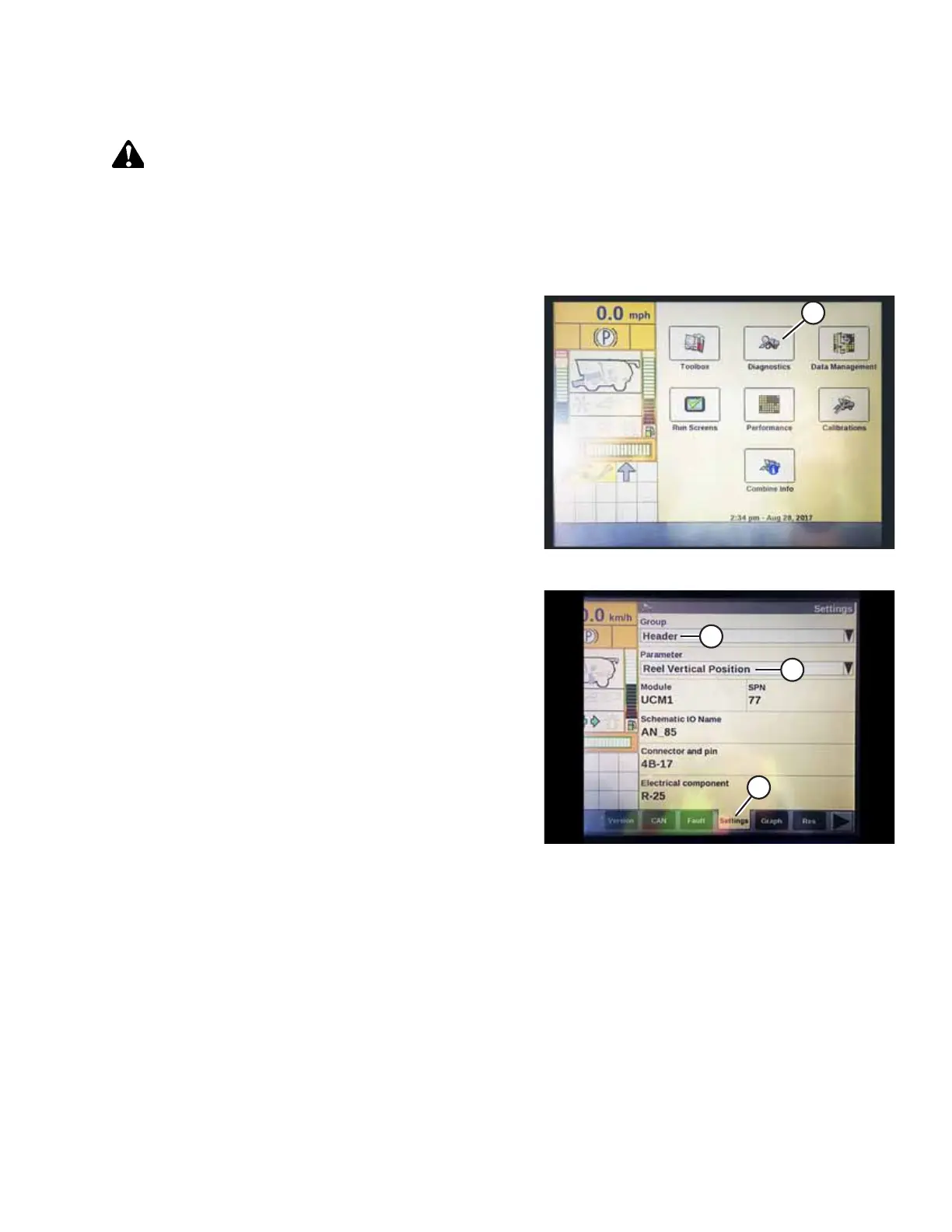

Figure 9.113: Case IH Combine Display
1. On the main page of the combine display, select
DIAGNOSTICS (A). The DIAGNOSTICS page opens.
Figure 9.114: Case IH Combine Display
2. Select SETTINGS tab (A). The SETTINGS page opens.
3. From the GROUP menu, select HEADER (B).
4. From the PARAMETER menu, select REEL VERTICAL
POSITION (C).
SETTING UP AUTO HEADER HEIGHT CONTROL
