MacDon D1 Series - Page 313

215184 289 Revision A
1006432
A
B
C
D

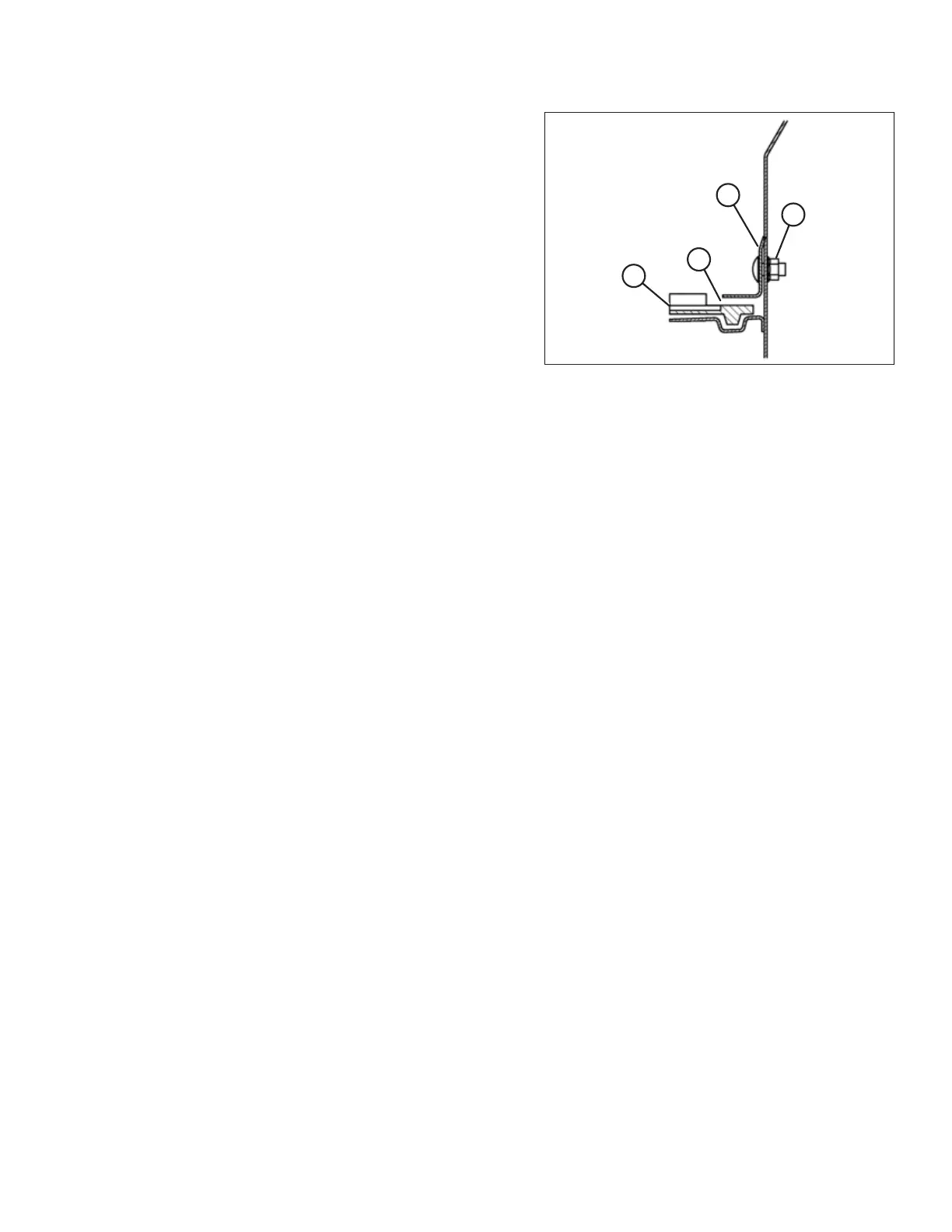

Figure 8.53: Backsheet Deflector
13. If required, adjust backsheet deflector (A) by loosening
nut (D) and moving the deflector until there is a 1 –7mm
(0.04–0.28 in.) gap (C) between draper (B) and the
deflector.
PERFORMING PREDELIVERY CHECKS
