215184 49 Revision A

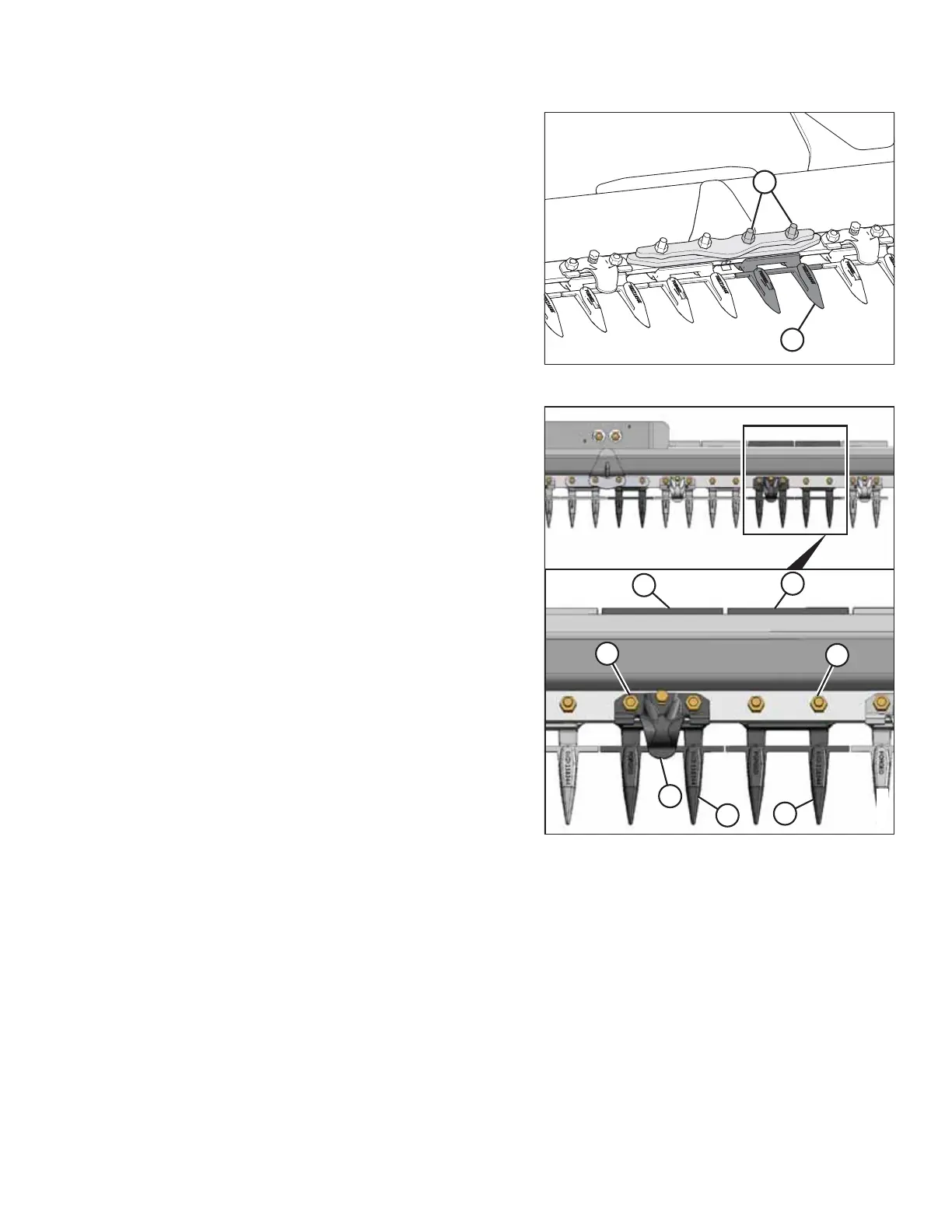

Figure 3.72: Guard
9. Install guard (A) and cutterbar wearplate at split with two
7/16 x 2-1/2 in. special carriage bolts and lock nuts (B)
(existing hardware). Torque bolts to 81–95 Nm
(60–70 lbf·ft).
Figure 3.73: Wearplates and Guard
10. Install cutterbar wearplate (A), guard (B), and clip (C) with
two 7/16 x 1-1/2 in. long special carriage bolts (D) and nuts
at location shown. Tighten nuts to 68 Nm (50 lbf·ft).
Adjuster bolt should not require adjusting.
11. Install cutterbar wearplate (E) and guard (F) with two
7/16 x 1-1/2 in. long special carriage bolts (G) and nuts at
location shown. Tighten nuts to 68 Nm (50 lbf·ft).
ASSEMBLING THE HEADER AND FLOAT MODULE
