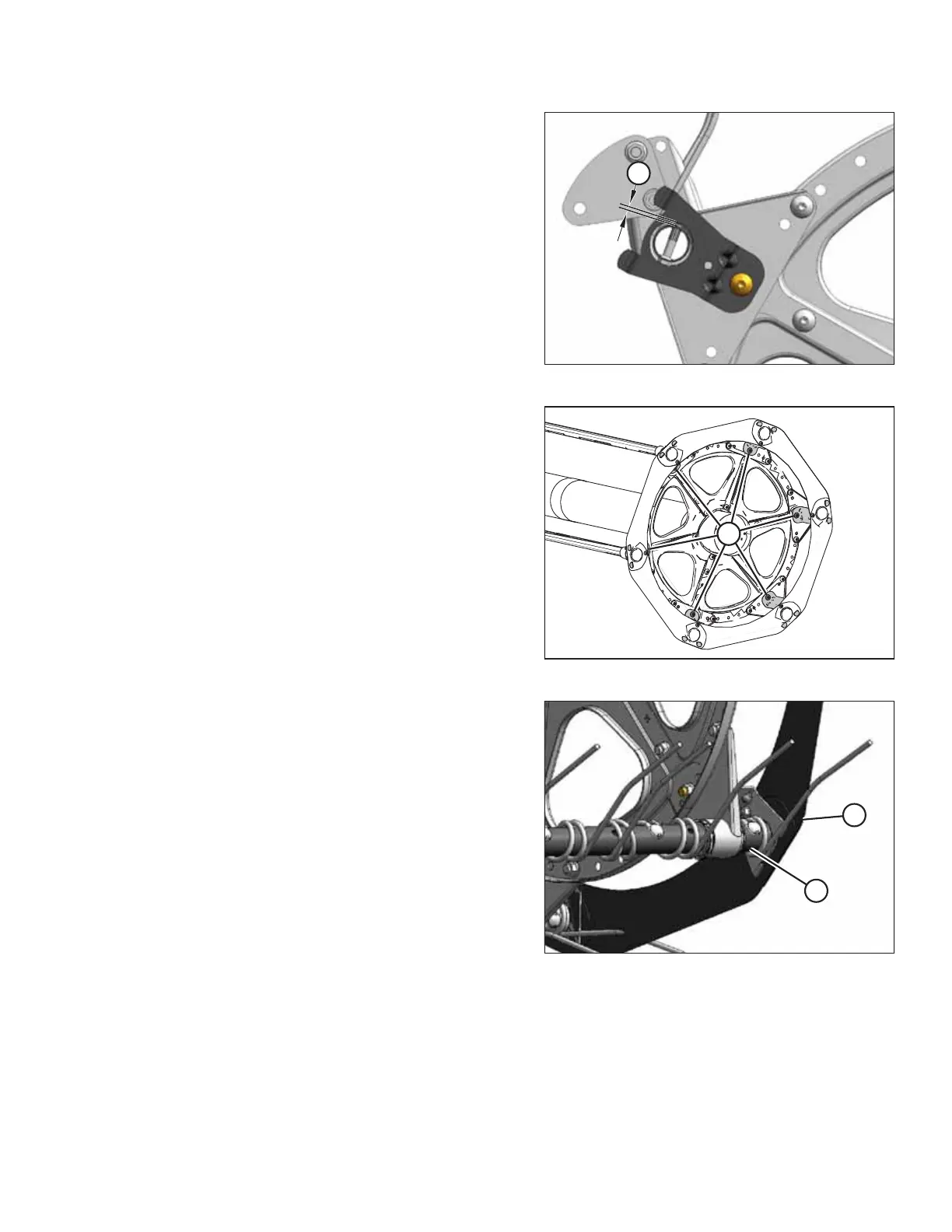

Figure 3.296: Support Clearance
14. Ensure that clearance (A) between tine tubes and endshield
supports is maintained.
NOTE:
Reel endshields not shown in illustration for clarity.
Figure 3.297: Endshield Installation
15. Install endshield supports onto reel disc using existing 1/2 x
1.0 in. long Torx
®
head screws (A) and lock nuts. Do NOT
tighten.
NOTE:
If necessary, remove existing bolts and reinstall with
endshield supports.
Figure 3.298: Support Clearance
16. Recheck clearance between tine tubes (A) and endshield
supports (B), and adjust if necessary.
17. Tighten all hardware.
IMPORTANT:
Use locking jam nuts or use medium-strength threadlocker
(Loctite
®
243 or equivalent).
18. Torque to 27 Nm (20 lbf·ft).
19. Retighten endshield support bolts if necessary.
