MacDon D1 Series - Page 48

215184 24 Revision A
1019682
A

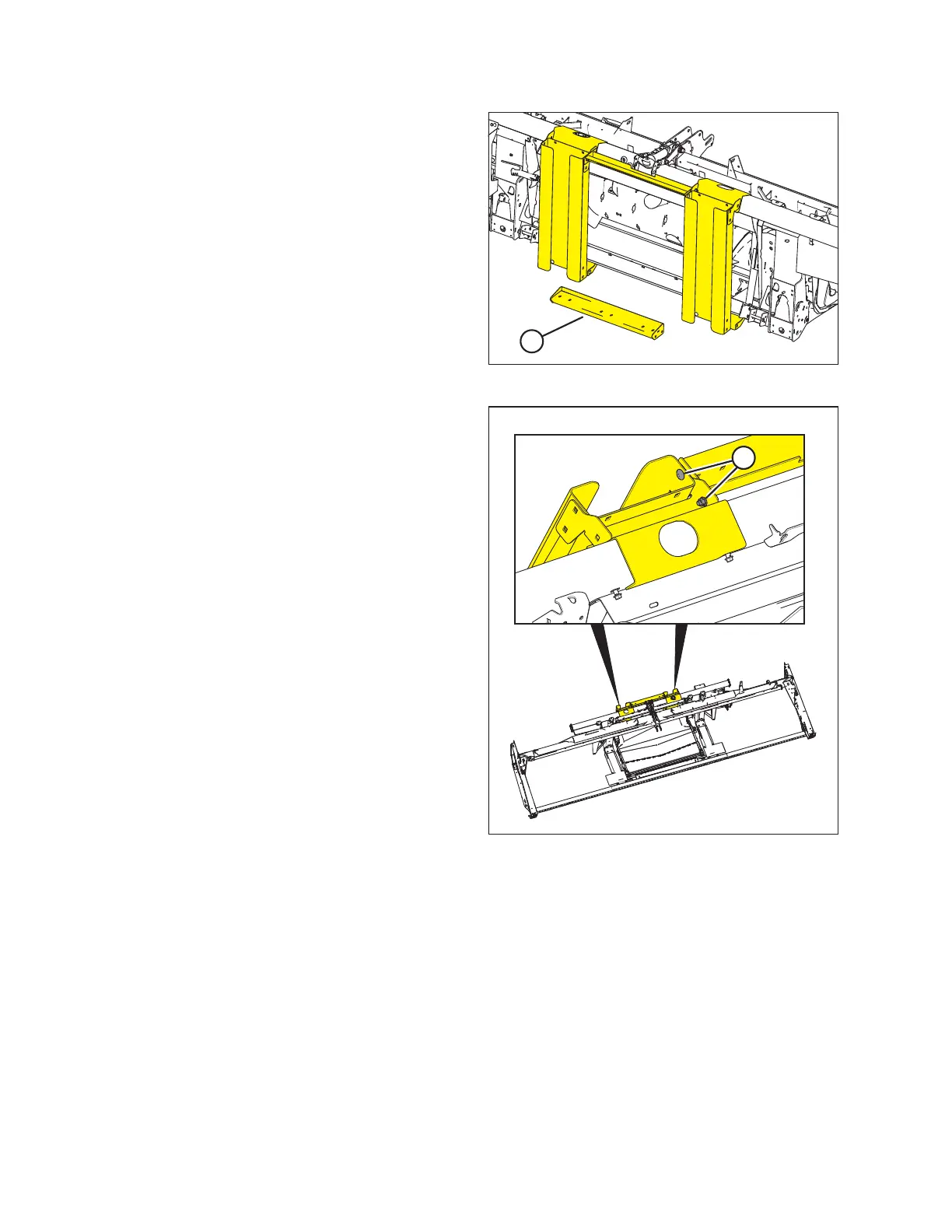

Figure 3.8: Shipping Supports
4. Remove lower brace (A).
1015911
A
Figure 3.9: Shipping Supports
5. From the upper brace, remove two bolts (A). Repeat for the
opposite side.
ASSEMBLING THE HEADER AND FLOAT MODULE
