215184 26 Revision A

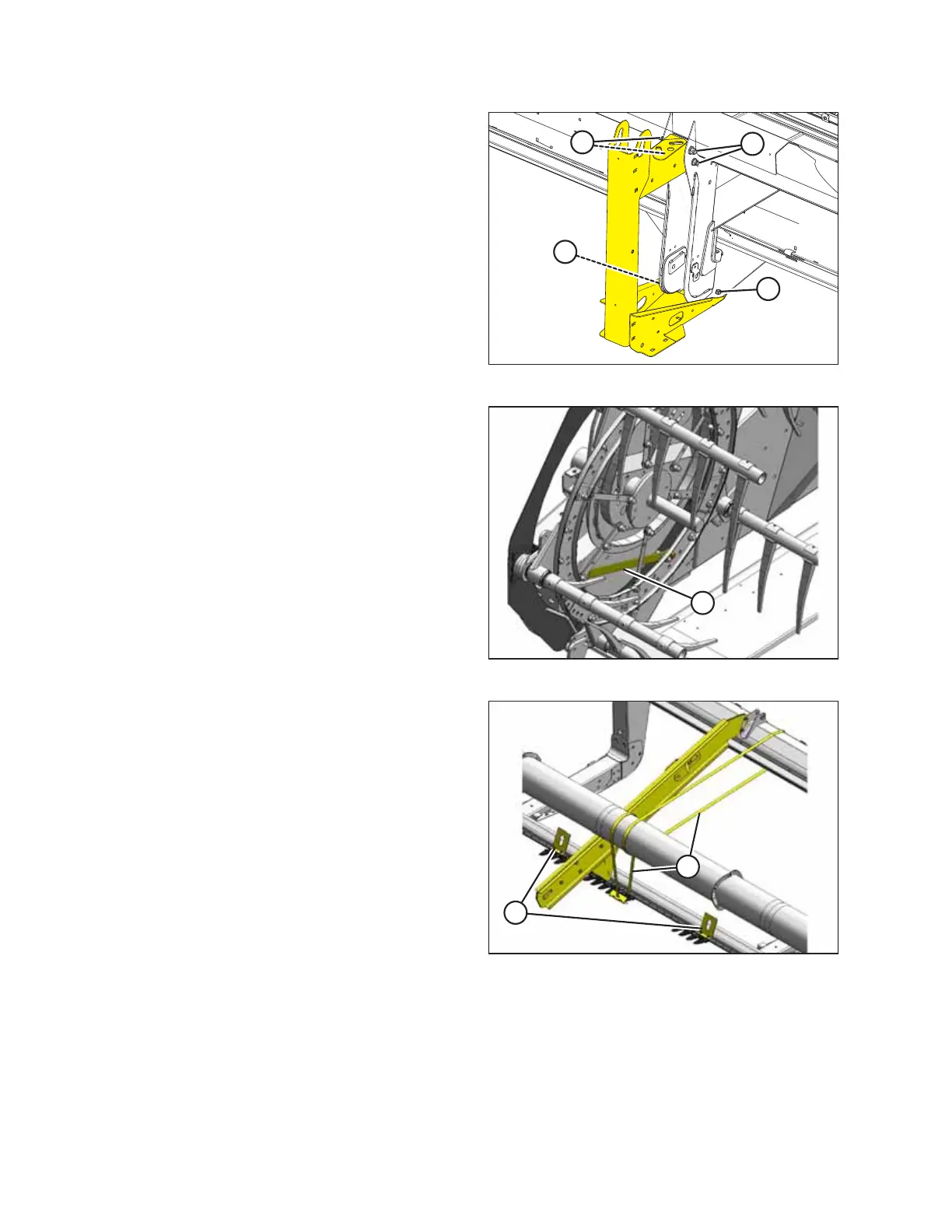

Figure 3.13: Outboard Leg Shipping Stand
12. 9.1 m– 10.7 m (30–35 ft.) only: Remove four bolts (A) and
two bolts (B) from the shipping stands at both outboard
header legs. Remove the shipping stands.
Figure 3.14: Reel Anti-Rotation Strap
Removing additional shipping supports and guards
13. Remove reel anti-rotation strap (A) between the reel
and endsheet.
Figure 3.15: Single Reel Shipping Support
14. Single reel: Cut banding (A) securing the reel to the
cutterbar and backtube.
NOTE:
Do NOT remove brackets (B) on cutterbar.
ASSEMBLING THE HEADER AND FLOAT MODULE
