215184 27 Revision A

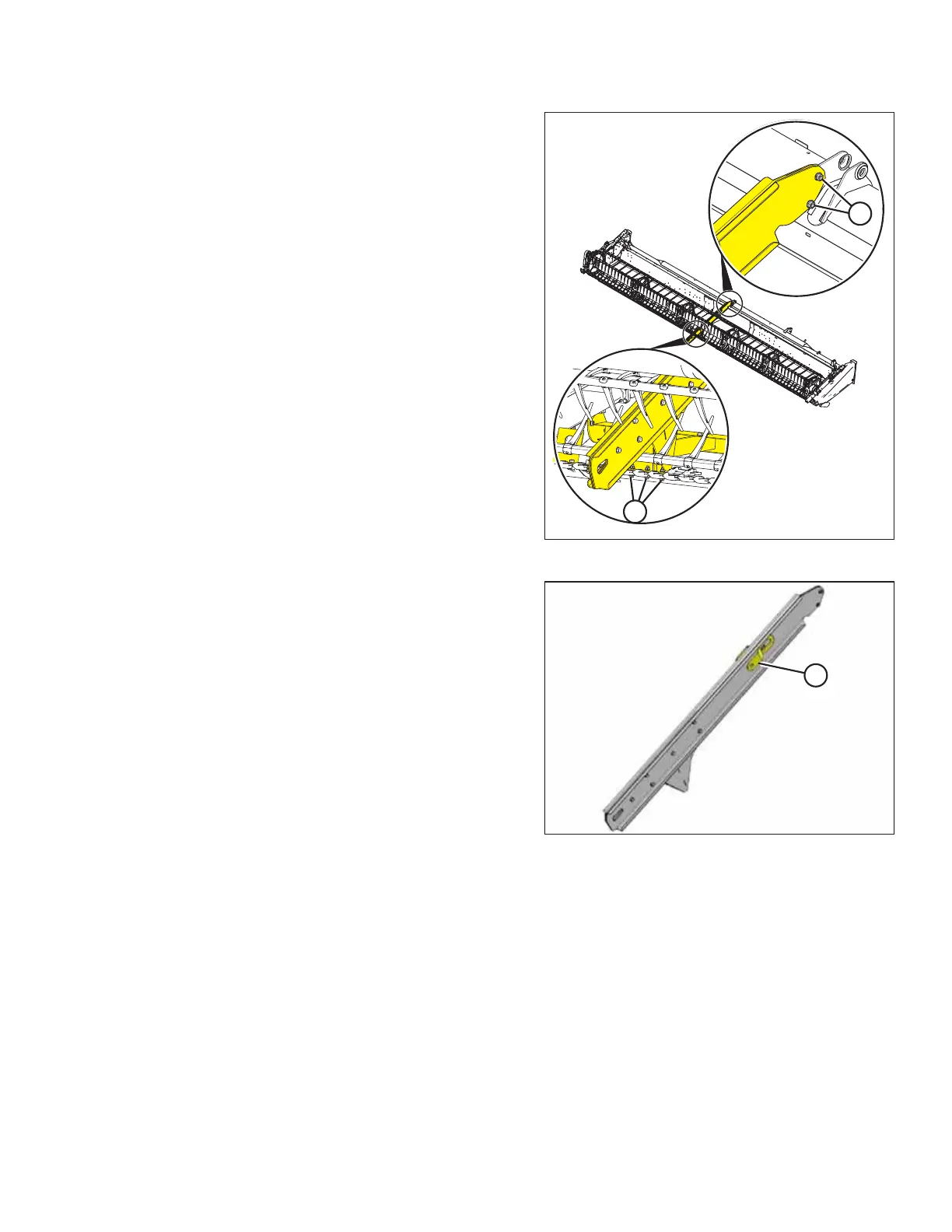

Figure 3.16: Single Reel
15. Single reel: Remove bolts (A) securing the center shipping
beam to the backtube.
16. Single reel: Remove bolts (B) securing the center shipping
beam to the cutterbar.
17. Single reel: Rotate the shipping beam and remove it from
the reel side of the header.
Figure 3.17: Single Reel Lifting Bracket
18. Single reel: Remove lifting brackets (A) from the
shipping beam.
ASSEMBLING THE HEADER AND FLOAT MODULE
