MacDon D1 Series - Page 269

215184 245 Revision A
1014367
A
B

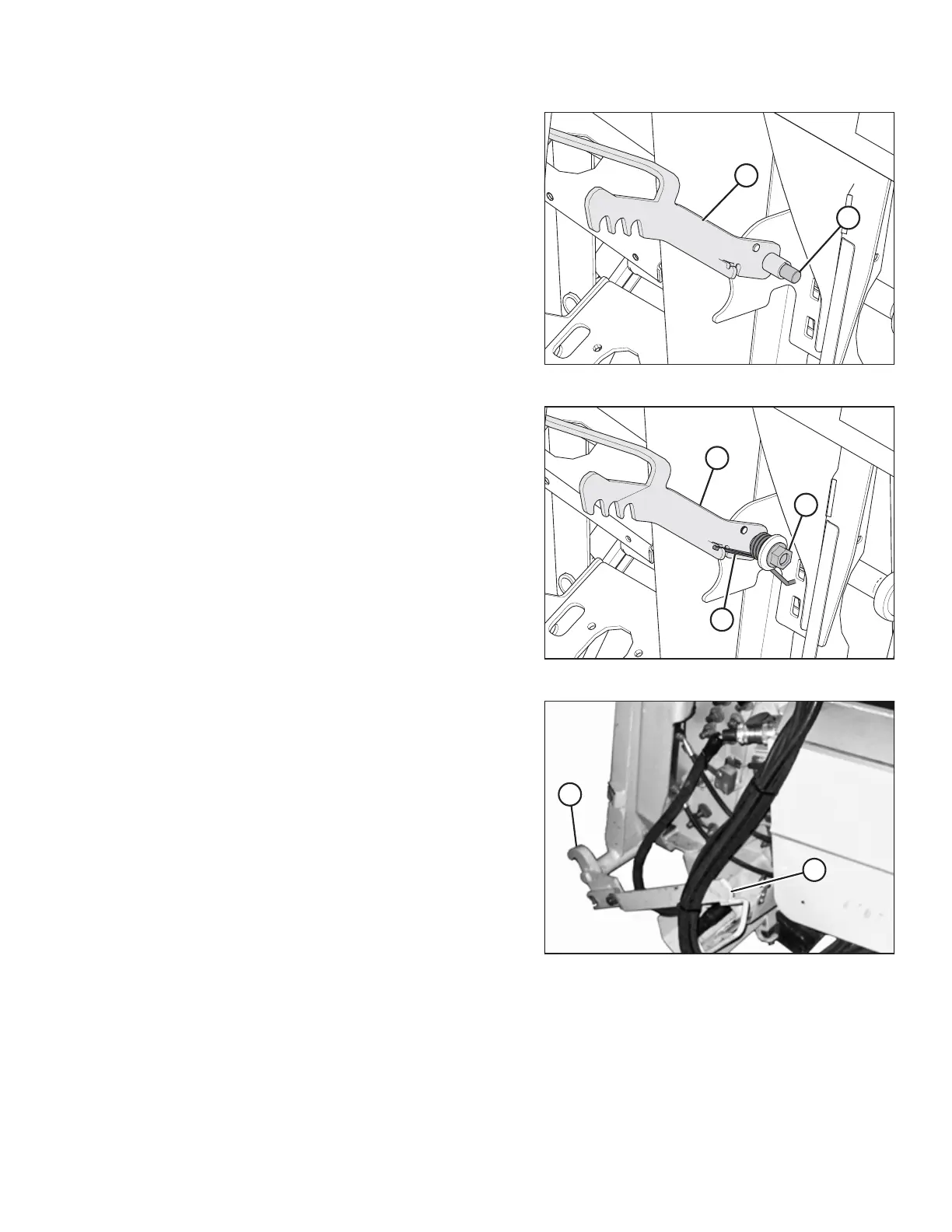

Figure 7.91: Combine Float Module Upper Left Side
3. Position lever (A) onto stud (B).
1004505
A
B
C
Figure 7.92: Combine Float Module Upper Left Side
4. Place spring arm (C) into hook on lever (B) to preload it,
and tighten nut (A) with washer onto the combine float
module.
1001498
B
A
Figure 7.93: Feeder House Locks
5. Ensure handle (A) is positioned so hooks (B) can engage the
float module.
ATTACHING HEADER TO COMBINE
