215184 61 Revision A

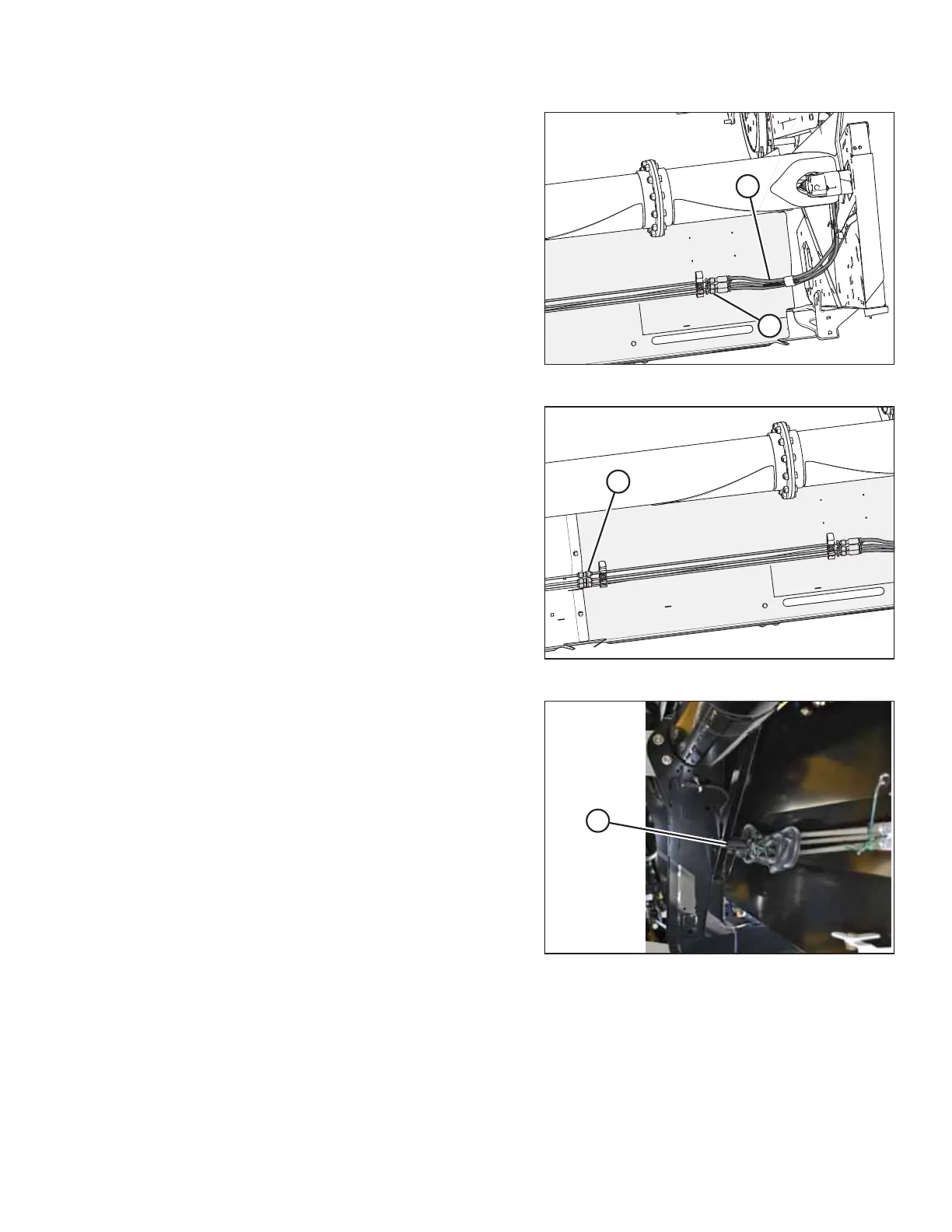

Figure 3.104: Hose Connections on Backsheet
18. Route reel lift/fore-aft hoses (A) to outboard hose
connections (B) on the deck extension backsheet.
19. Match color cable ties at the end of the hoses, remove the
caps and plugs, and make the hose connections as shown.
Figure 3.105: Hose Connections on Backsheet
20. Match the color cable ties at inboard hose connections (A)
on the deck extension backsheet to the outboard hose
connections on the existing backsheet.
21. Remove the caps and plugs, and make the hose
connections as shown.
Figure 3.106: Light Wiring Harness on Backsheet
22. Route wiring harness (A) from the right side of the
backsheet to the reel arm and to the light on the reel arm.
ASSEMBLING THE HEADER AND FLOAT MODULE
