215184 60 Revision A

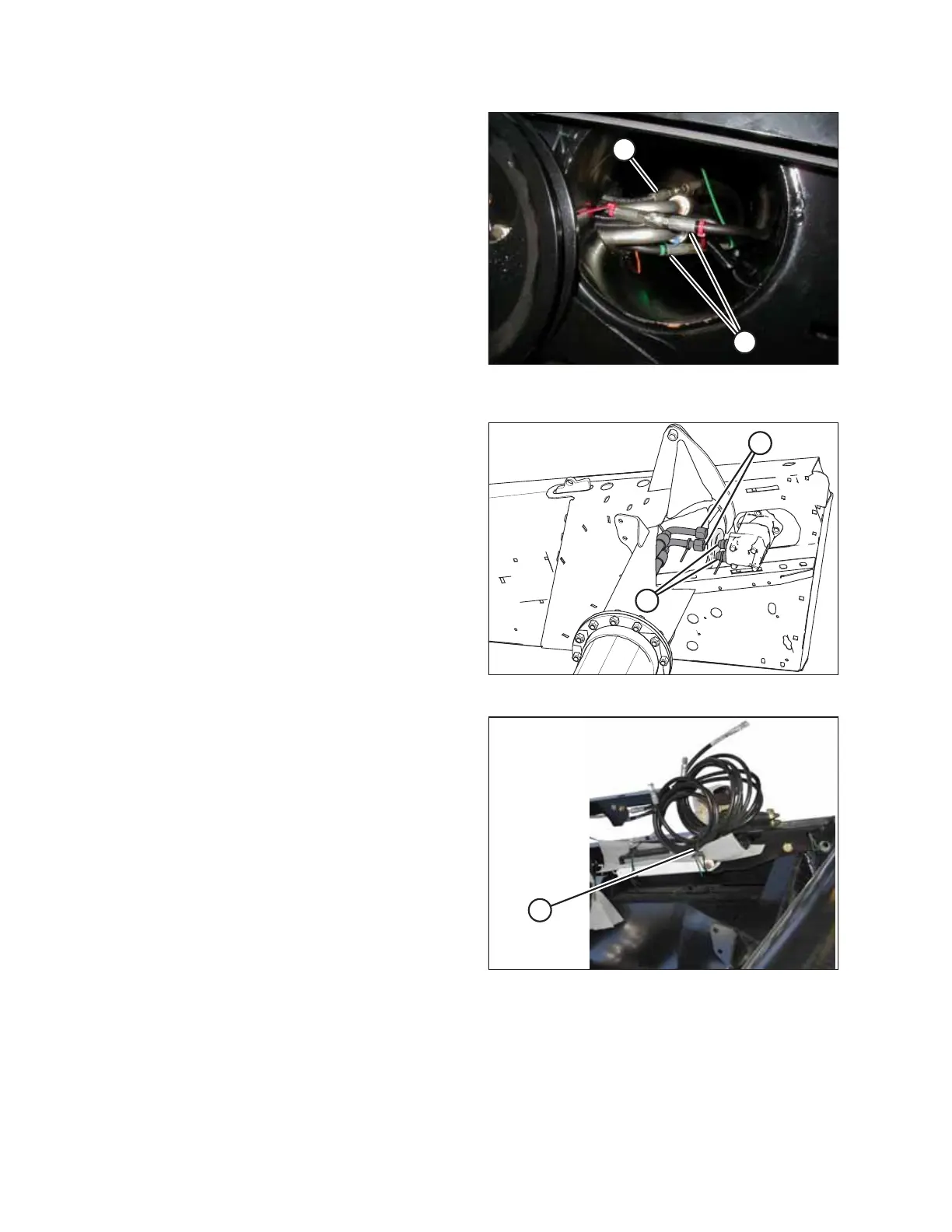

Figure 3.101: Reel Lift and Fore-Aft Hoses
inside Backtube
13. Remove caps and plugs from reel lift and fore-aft hoses and
from hose connections inside backtube.
14. Match the colored cable ties and connect one reel lift
hose (B) and two fore-aft hoses (A) inside backtube.
Figure 3.102: Hydraulic Motor Hoses
15. Remove two caps from motor (A) and two plugs from
hoses (B), and connect hoses to motor—matching the
colored cable ties.
NOTE:
Cutaway view shown. Hoses are routed out through the
backtube hole from inside.
16. Tighten hose fittings onto motor.
Figure 3.103: Reel Lift/Fore-Aft Hoses
17. Remove shipping wire (A) from reel lift/fore-aft hoses
attached to the right reel arm.
ASSEMBLING THE HEADER AND FLOAT MODULE
