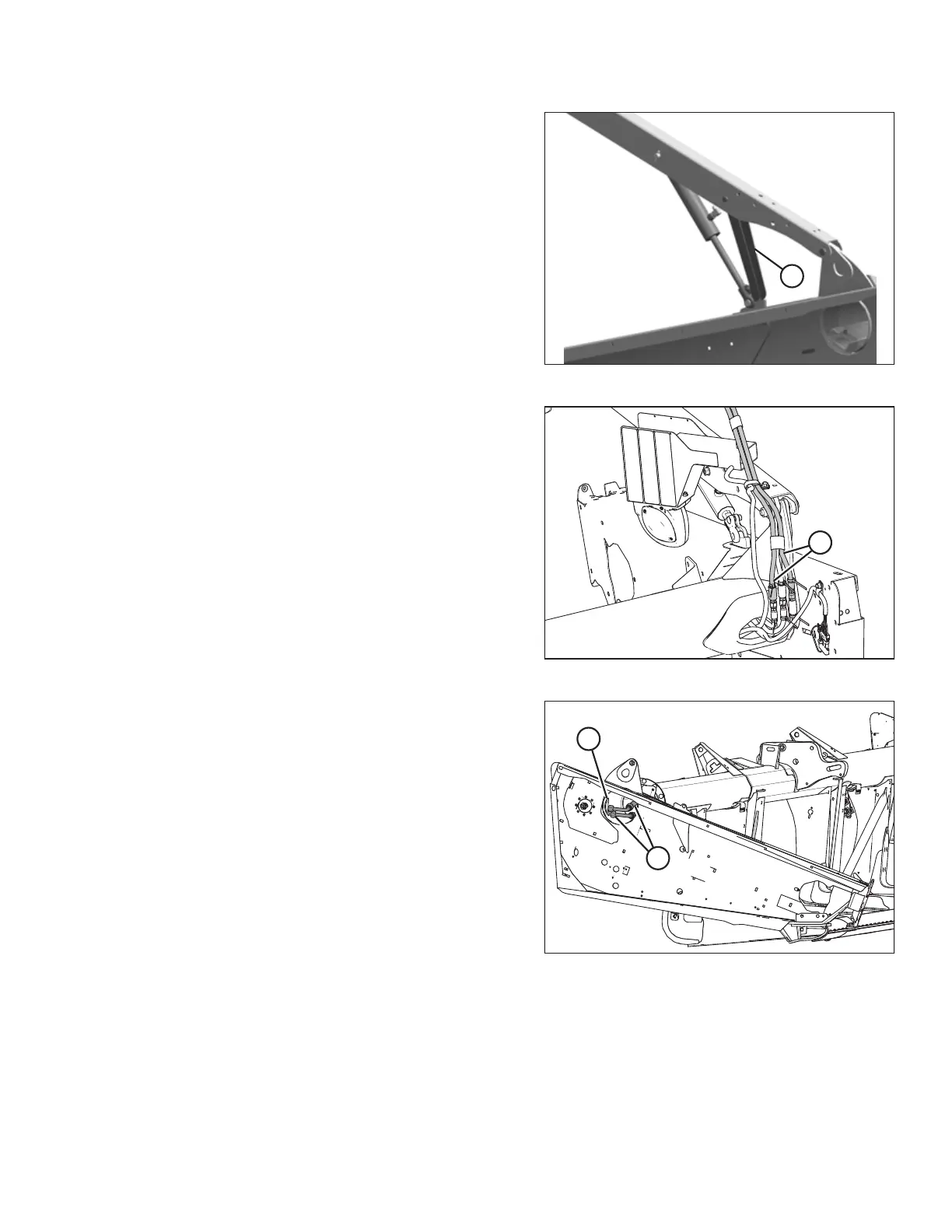

Figure 3.98: Reel Arm Safety Prop
10. Install reel arm safety prop (A) inside reel and secure with
existing hardware.
NOTE:
Tighten reel arm safety prop just enough so it can still be
moved by hand.
Figure 3.99: Reel Fore-Aft Hoses
11. Route two fore-aft hoses (A) from the right reel arm into
the backtube access hole.
NOTE:
Ensure there is enough slack in the hoses for reel to slide all
the way forward.
Figure 3.100: Hydraulic Hoses inside Backtube
12. Locate two 3/4 in. hoses (A) inside the backtube on the
right side of the header and route them out through
backtube hole (B) towards the hydraulic motor.
ASSEMBLING THE HEADER AND FLOAT MODULE
