MacDon D1 Series - Page 142

215184 118 Revision A
1018221
A
B

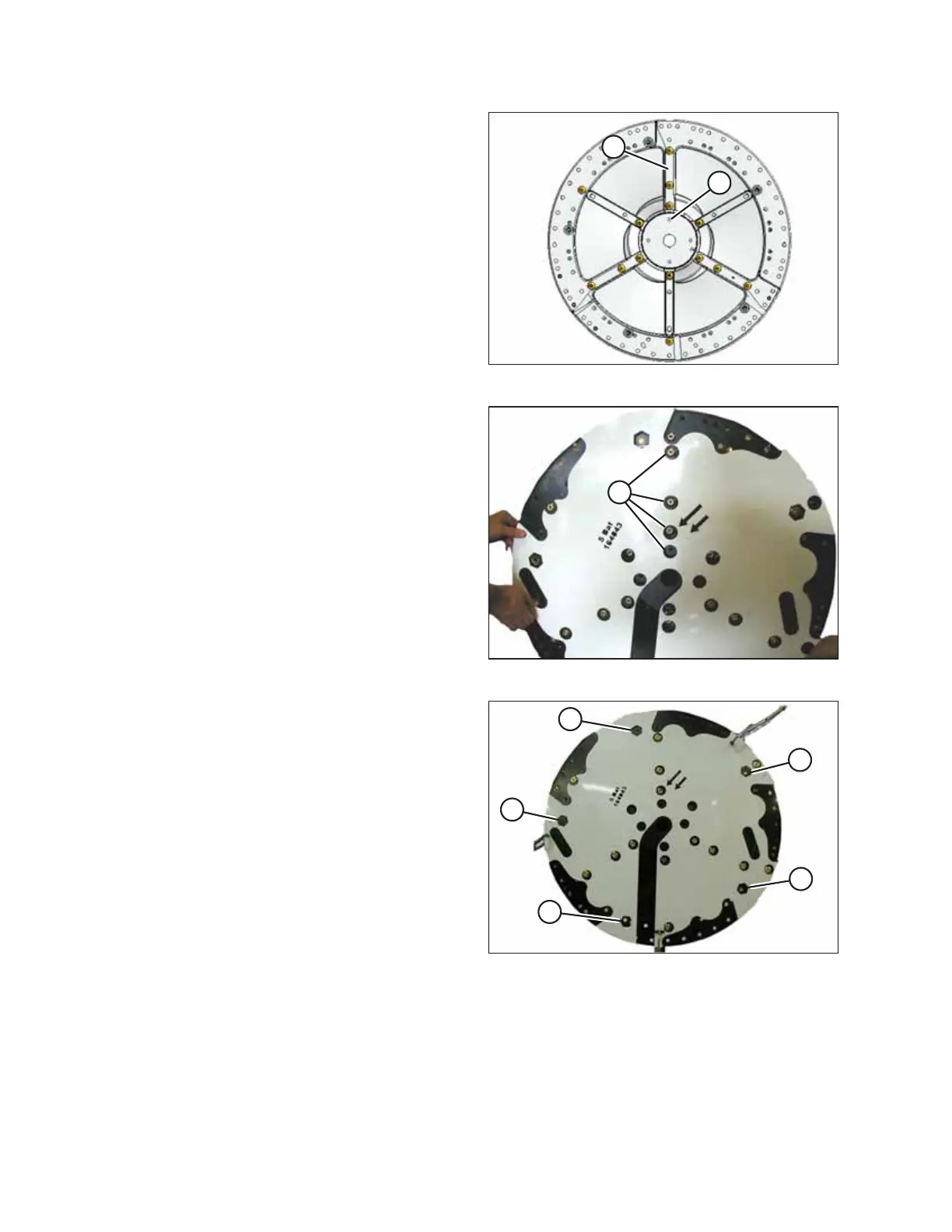

Figure 3.249: Reel Position
1. Rotate reel so seam (A) that lines up with a tapped hole (B)
is in the upright position.
1008510
A
Figure 3.250: Template on Disc
2. Position template on cam track ensuring the row of four
holes (A) is lined up with the row of bolts on the disc.
1008511
A
A
A
A
A
Figure 3.251: Five Hex Hole Locations
3. Transfer the five hex hole locations from the template onto
the disc to identify cam arm attachment points (A).
ASSEMBLING THE HEADER AND FLOAT MODULE
