215184 219 Revision A

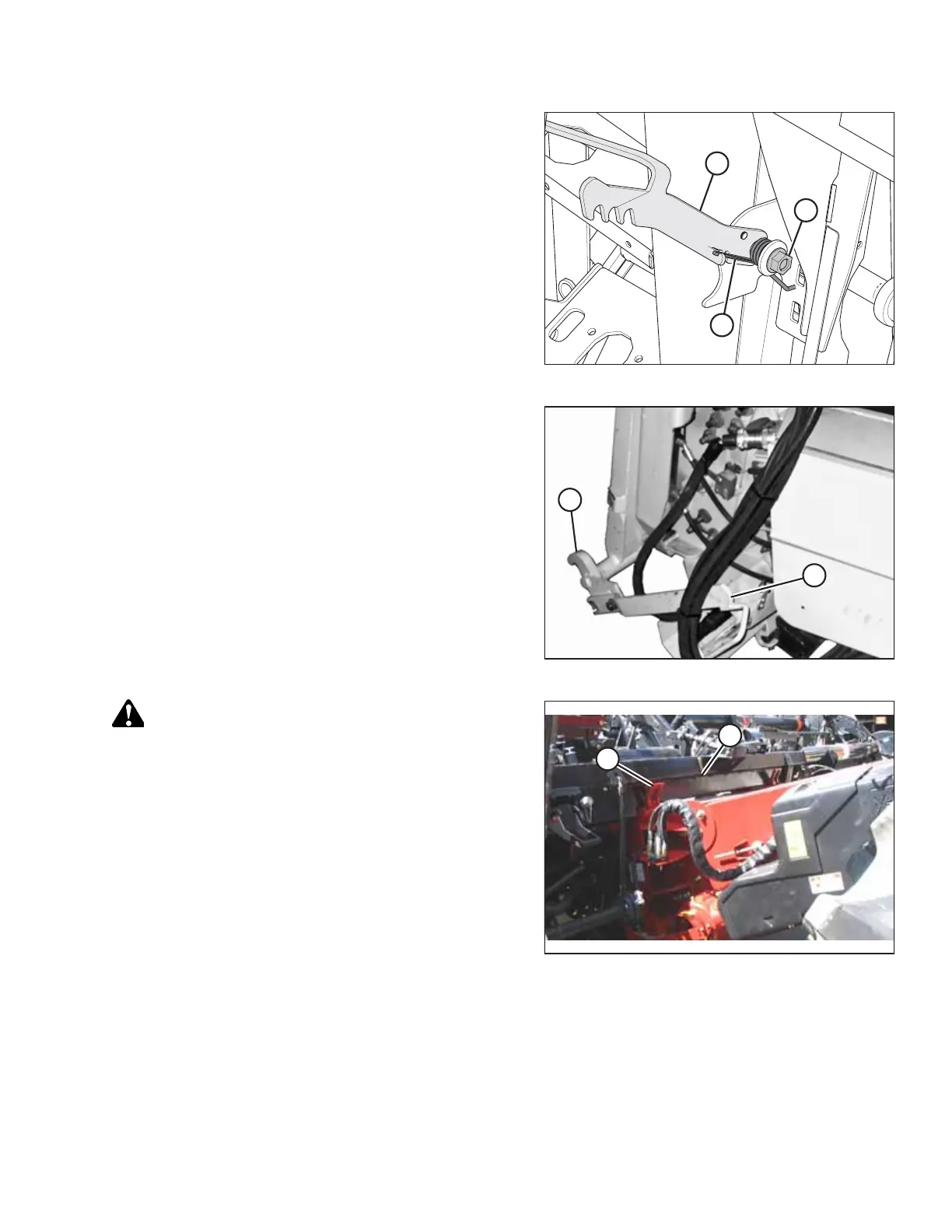

Figure 7.33: Combine Float Module Left Side
4. Place spring arm (C) into hook on lever (B) to preload it,
and tighten nut (A) with washer onto the float module.
Figure 7.34: Feeder House Locks
5. On the combine, ensure lock handle (A) is positioned so
hooks (B) can engage the float module.
Figure 7.35: Combine and Float Module
WARNING
Never start or move the machine until you are sure all
bystanders have cleared the area.
6. Start the engine and slowly drive the combine up to the
header until feeder house saddle (A) is directly under float
module top cross member (B).
7. Raise the feeder house slightly to lift the header, ensuring
the feeder saddle is properly engaged in the float
module frame.
8. Shut down the engine, and remove the key from
the ignition.
ATTACHING HEADER TO COMBINE
