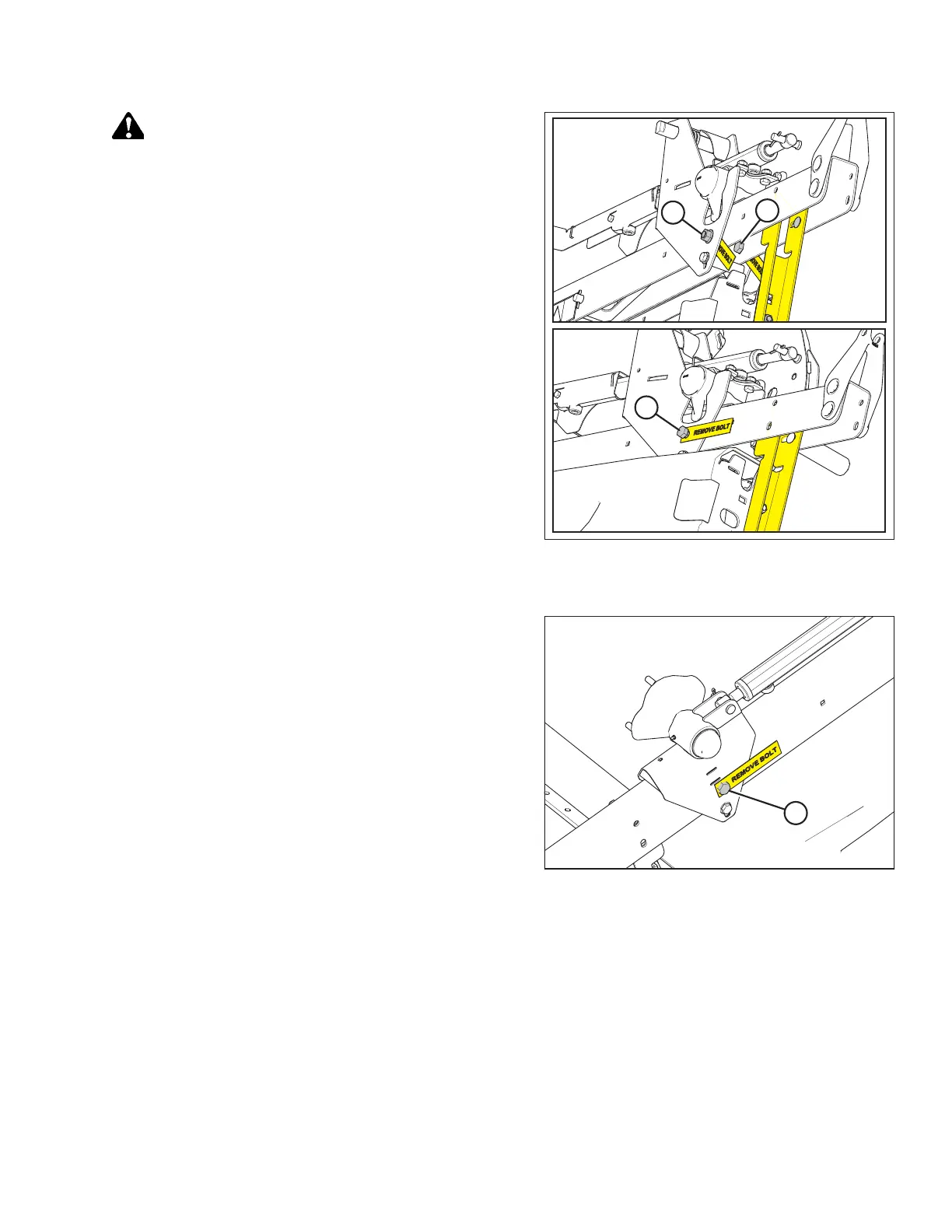

Figure 5.30: Right Reel Arm
Top Image - Single Reel
Bottom Image - Double Reel
Figure 5.31: Left Reel Arm
CAUTION
The reel fore-aft hydraulic cylinders must be connected to the
reel prior to removing the fore-aft supports and shipping
bolts (A). Failure to do so may result in the reel sliding fully
forward when the supports are removed.
UNLOADING HEADER AT DEALER
