MacDon D1 Series - Page 306

215184 282 Revision A
1016610
A
A
B

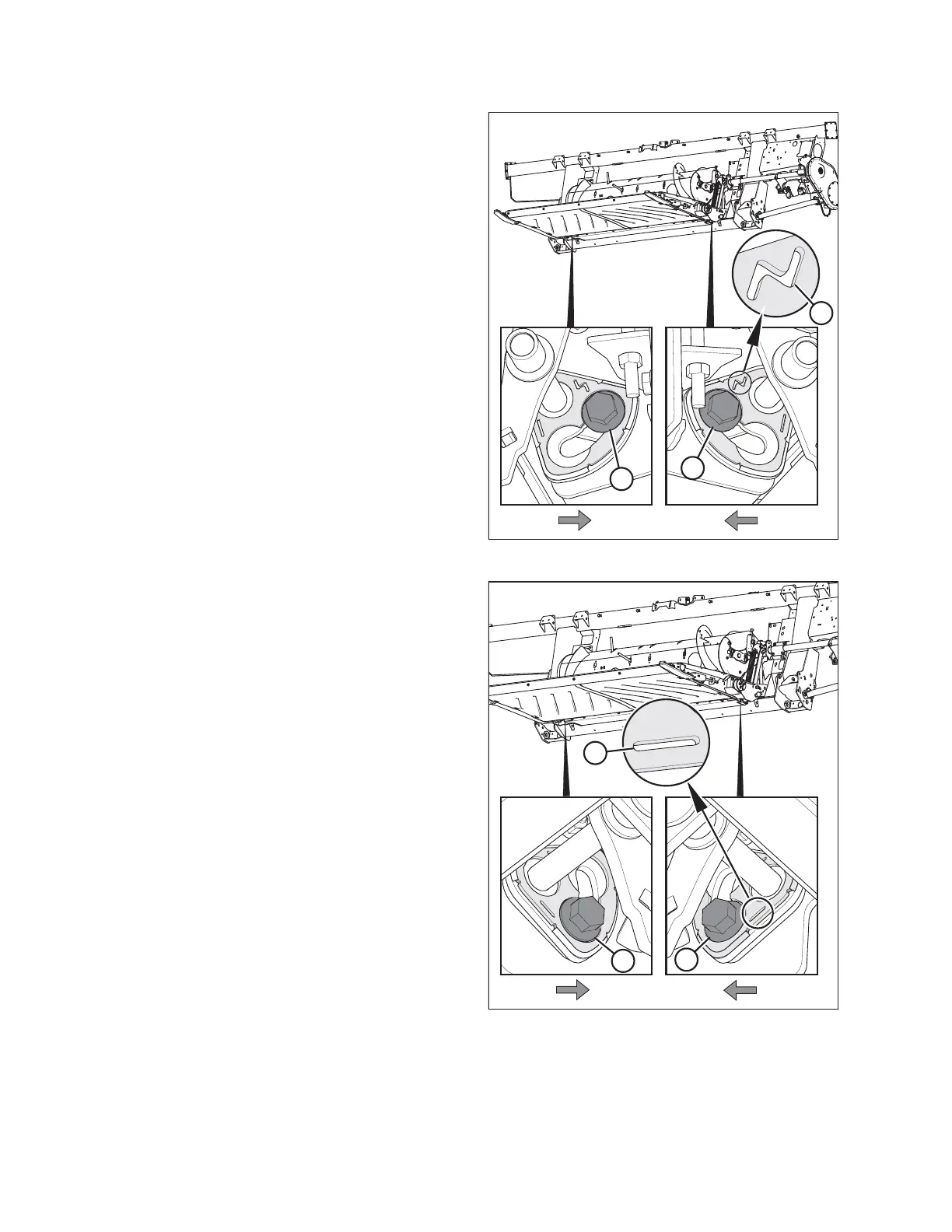

Figure 8.39: Floating Position
4. Before adjusting the auger to pan clearance, check the
auger float position to determine how much clearance is
required:
• If bolt head (A) is closest to floating symbol (B), the
auger is in the floating position.
IMPORTANT:
Make sure bolts (A) are set at the same location on both
ends of the header to prevent damaging the machine
during operation.
1020712
A
A
B
Figure 8.40: Fixed Position
• If bolt head (A) is closest to fixed symbol (B), the auger
is in the fixed position.
IMPORTANT:
Make sure bolts (A) are set at the same location on both
ends of the header to prevent damaging the machine
during operation.
PERFORMING PREDELIVERY CHECKS
