215184 204 Revision A

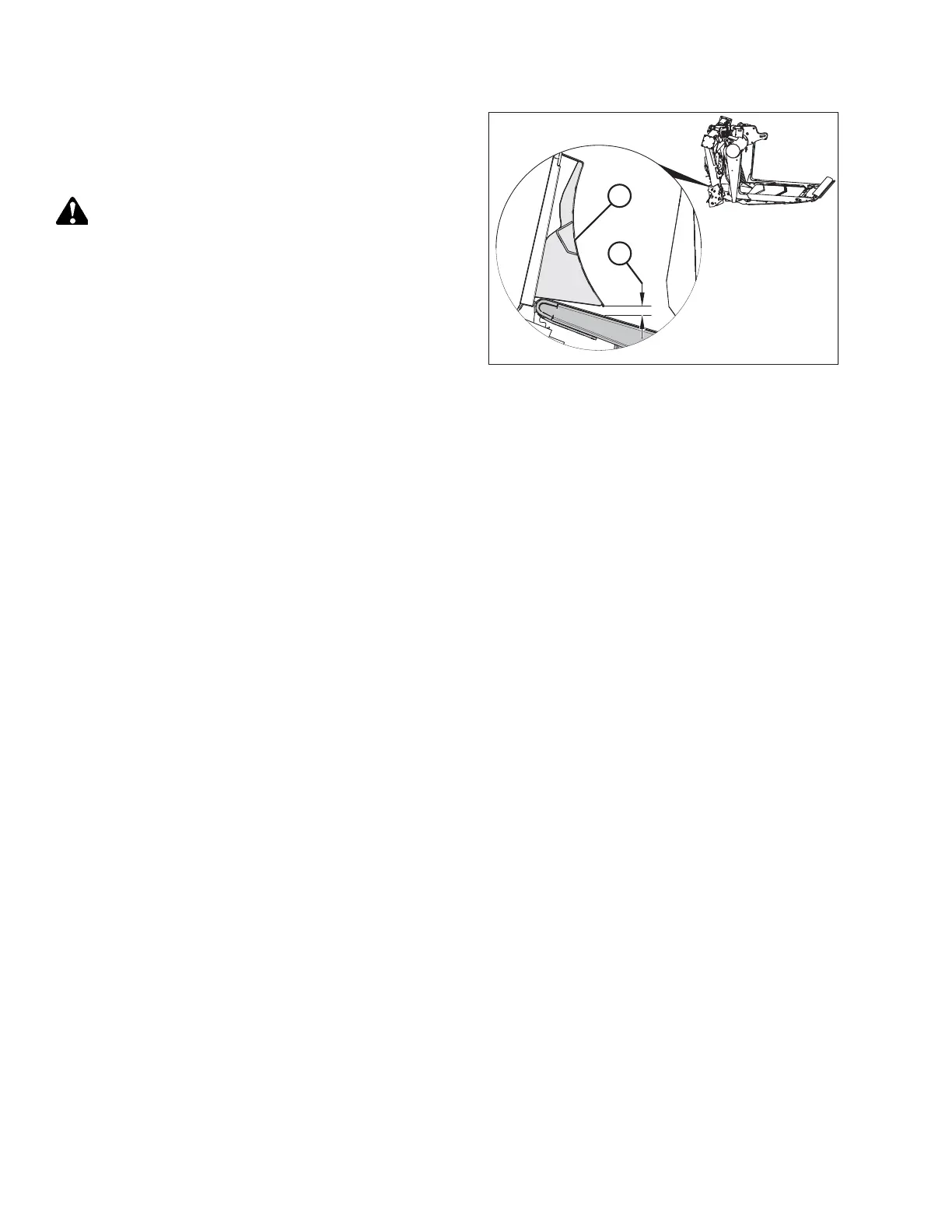

Figure 6.69: Side View of Deflector
4. Set gap (X) to the dimension recorded in Step 1, page 203
and tighten the nuts.
5. Repeat for the opposite deflector.
WARNING
Never start or move the machine until you are sure all
bystanders have cleared the area.
6. Attach the header to a combine and fully extend
center-link.
7. Turn off the combine and remove the key from the ignition.
8. Recheck gap (X) between deflector (A) and the pan.
NOTE:
The minimum gap, when attached to the combine, should
be 19–25 mm (3/4–1 in.).
9. If necessary, detach header from the combine and adjust
the deflector to achieve the minimum gap.
FLOAT MODULE SETUP AT DEALER
