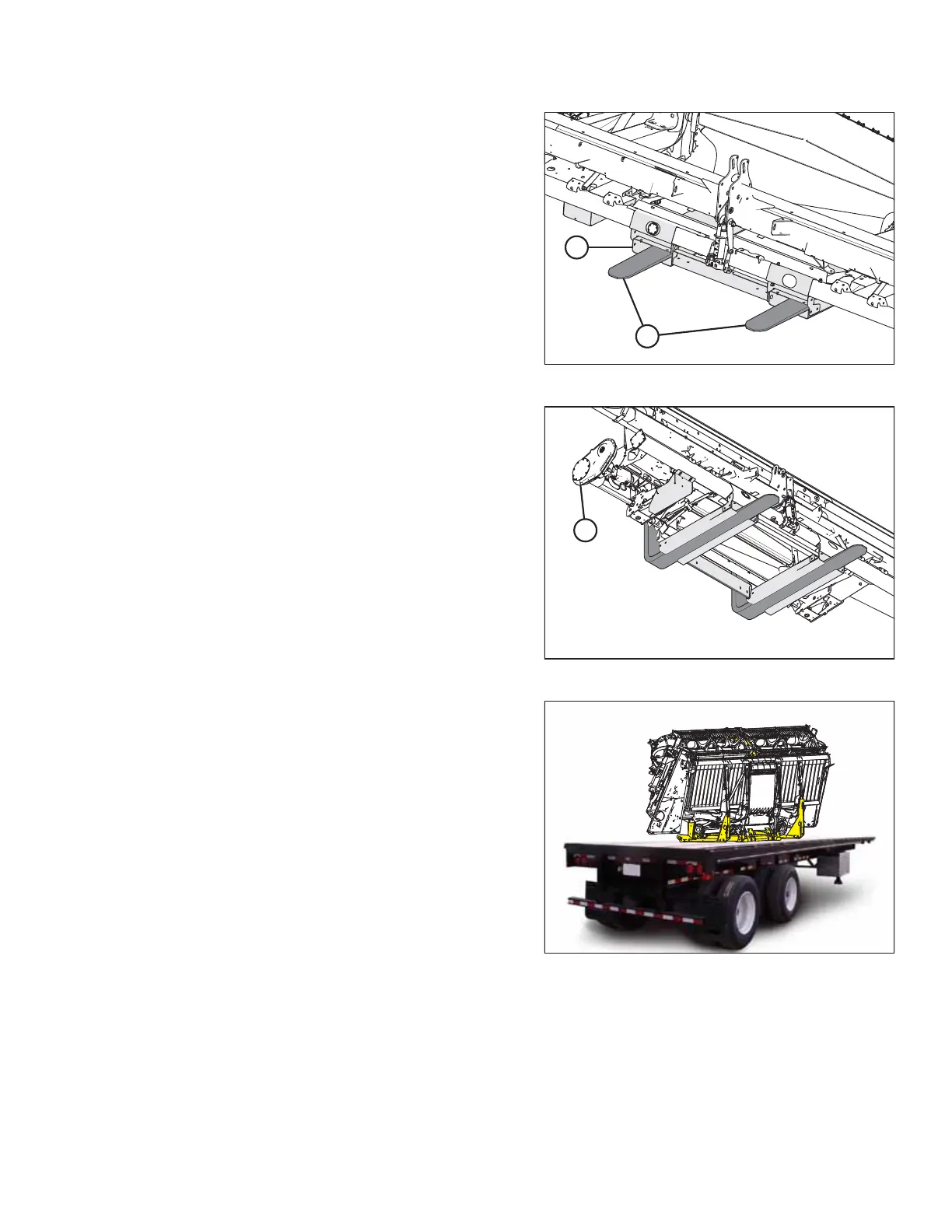

Figure 4.3: Fork Slider Channels
Loading header onto flat deck
3. Approach header and line up forks (A) with fork slider
channels (B).
NOTE:
When possible, approach header from the underside to
minimize potential for damage to the unit.
4. Slide forks (A) in as far as possible.
Figure 4.4: View from below Header
IMPORTANT:
Avoid damage to gearbox (A) when setting the unit down.
Figure 4.5: Header on Flat Deck Trailer
5. Approach the trailer slowly, and raise the forklift until the
header clears the trailer deck by 102–204 mm (4–8 in.).
6. Lower the header onto the trailer deck, and back the
forklift away slowly.
LOADING HEADER FOR TRANSPORT TO DEALERSHIP
