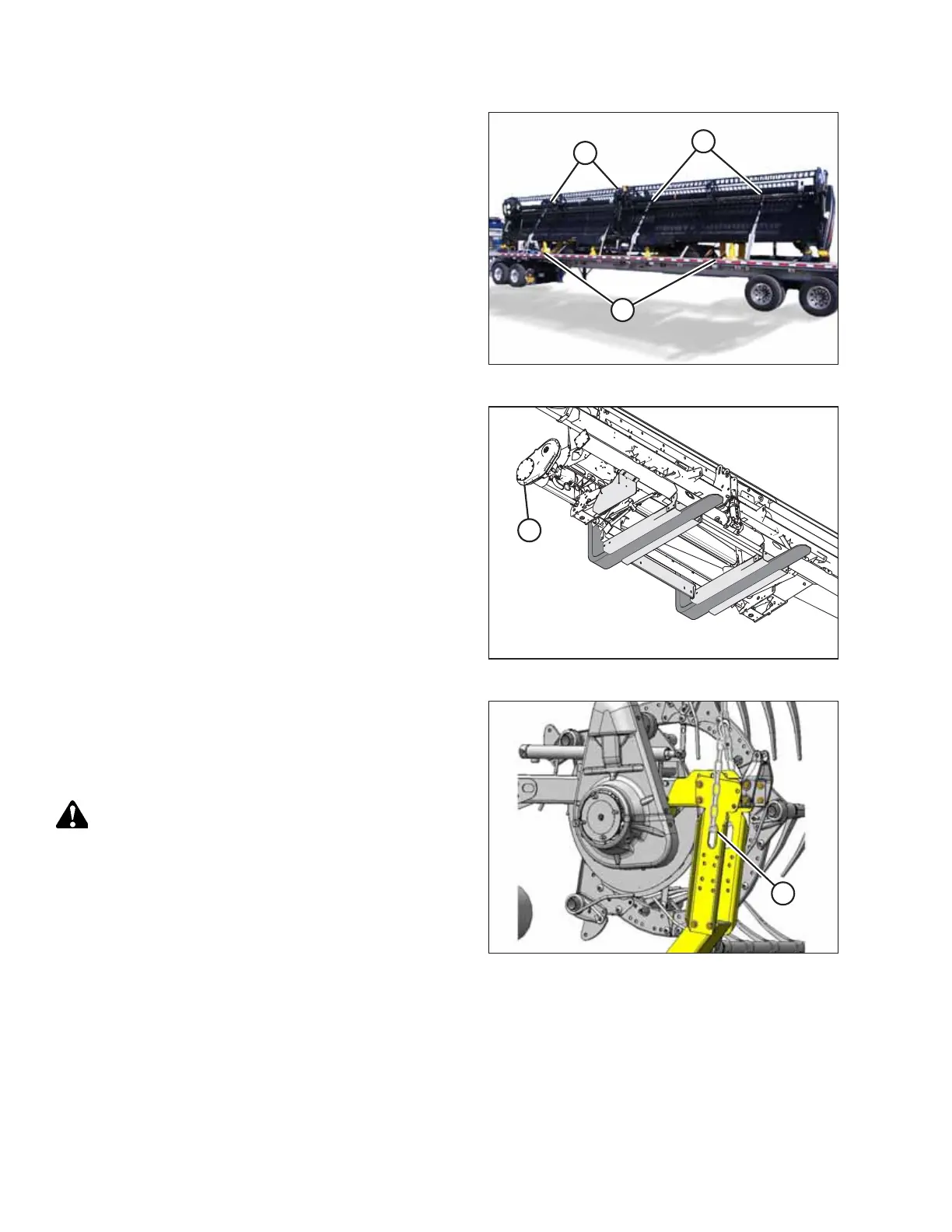

Figure 5.2: Header on Flat Deck
3. Remove hauler’s tie-down straps (A) and chains (B).
4. Slowly raise the header off the trailer.
5. Back up until the unit clears trailer and slowly lower to
150 mm (6 in.) from the ground.
Figure 5.3: View from below Header
6. Move the header to the storage or setup area. Ensure the
ground is flat and free of rocks or debris that could damage
the header.
IMPORTANT:
Avoid damage to gearbox (A) when setting the unit down.
Figure 5.4: Center Support
7. Approach header from the underside with the lifting
vehicle.
8. Attach chain to the shipping support (A) at the center
reel arm.
CAUTION
Stand clear of machine when lowering. The machine may swing
or shift suddenly.
UNLOADING HEADER AT DEALER
