215184 173 Revision A
1023987
A
B
B
C

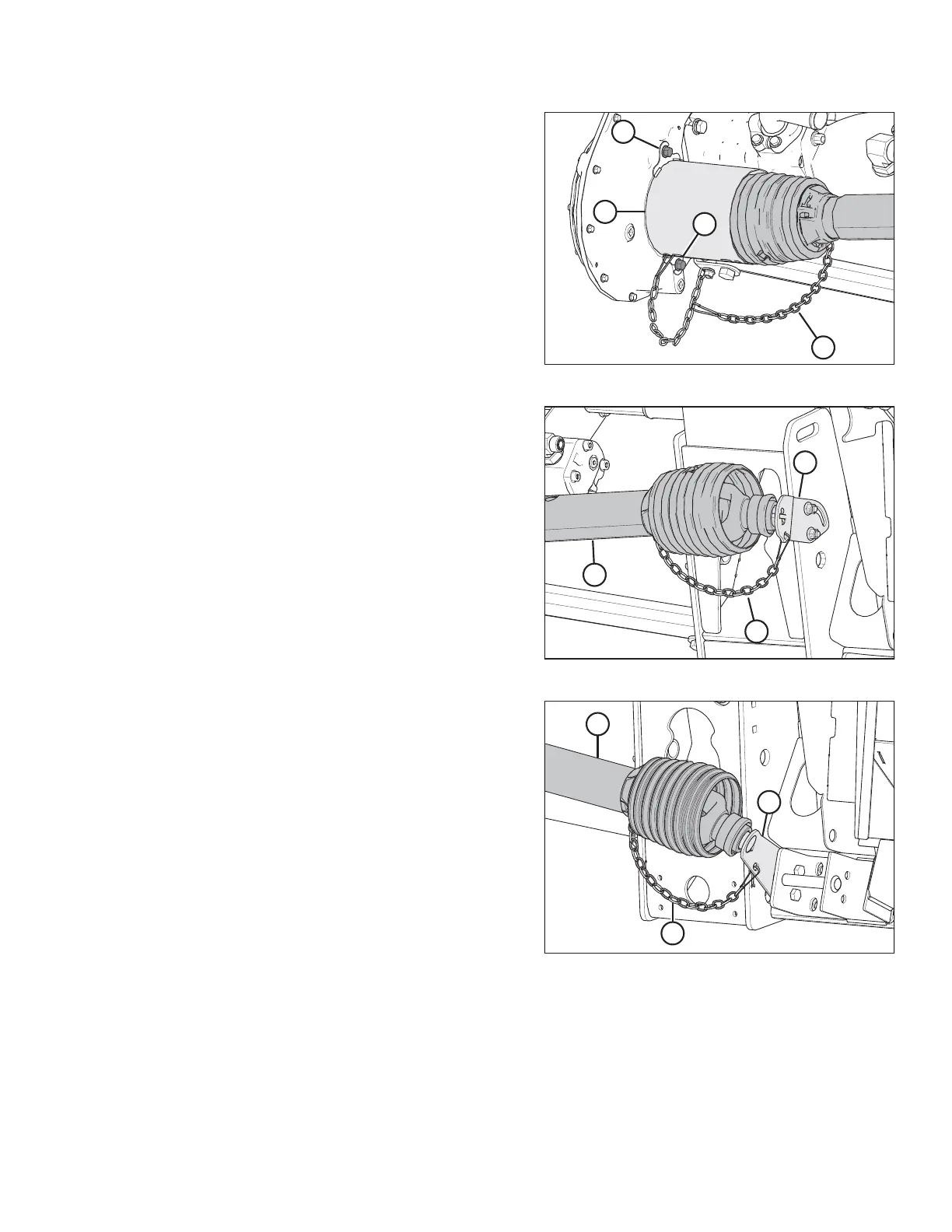

Figure 5.38: Gearbox End of Driveline
3. At gearbox end, remove driveline shield (A) by loosening
nuts (B).
4. Position the driveline quick disconnect onto the float
module gearbox shaft, pull back the collar, and slide onto
the shaft until the yoke locks on to the shaft. Release the
collar.
NOTE:
The arrow on the driveline sticker should point toward the
combine.
5. Position shield (A) on the gearbox and secure with bolts (B).
6. Attach driveline chain (C) to existing chain on shield (A).
1021133
A
B
C
Figure 5.39: Driveline in Storage Position
7. Position the combine end of driveline (A) onto storage
support (B), pull back the collar, and slide onto the shaft
until the yoke locks on to the shaft. Release the collar.
8. Secure loose end of driveline chain (C) to driveline storage
support (B).
1024060
A
B
C
Figure 5.40: Driveline in Storage Position –
Case New Holland
UNLOADING HEADER AT DEALER
