215184 182 Revision A

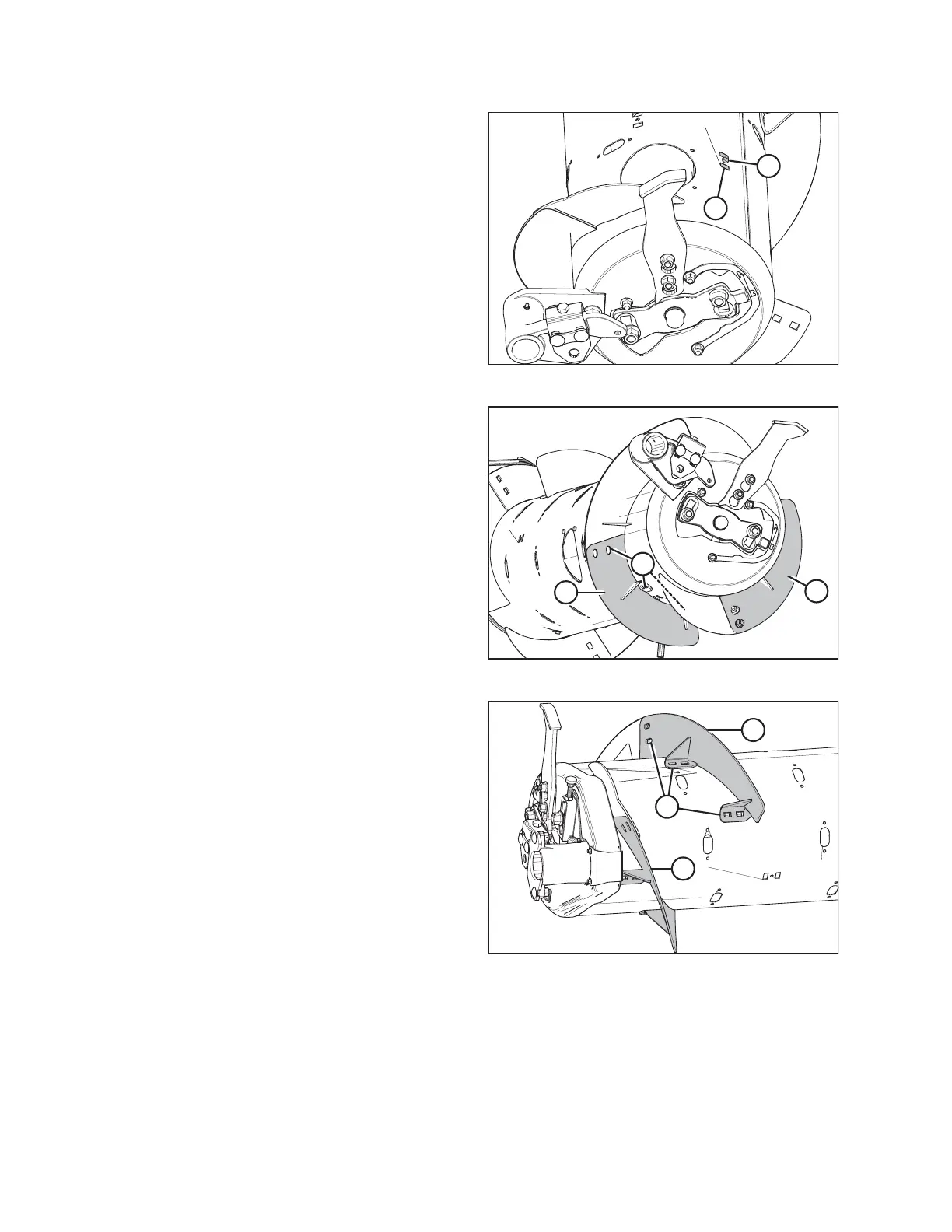

Figure 6.14: Narrow Configuration – Right Side
4. On both sides of the auger, remove M6 bolt (A), tee nut
(not illustrated), and flighting slot plug (B) from inside the
feed auger. Retain parts for installation.
Figure 6.15: Medium Configuration – Right Side
5. Install two bolt-on flightings (A) on the right side of the
auger as shown, and secure each flighting with six retained
carriage head bolts and nuts at locations (B).
IMPORTANT:
Flighting bolt heads must be installed on the inside of the
auger to prevent damaging internal components.
NOTE:
Flighting performs best when no gaps are present. If
desired, use silicone sealant to fill the gaps.
6. Torque all nuts and bolts to 47 Nm (35 lbf·ft) to eliminate
deflection on flighting, then torque them to 58–64 Nm
(43–47 lbf·ft).
Figure 6.16: Medium Configuration – Left Side
7. Install two bolt-on flightings (A) on the left side of the auger
as shown, and secure each flighting with six retained
carriage head bolts and nuts at locations (B).
IMPORTANT:
Flighting bolt heads must be installed on the inside of the
auger to prevent damaging internal components.
NOTE:
Flighting performs best when no gaps are present. If
desired, use silicone sealant to fill the gaps.
8. Torque all nuts and bolts to 47 Nm (35 lbf·ft) to eliminate
deflection on flighting, then torque them to 58–64 Nm
(43–47 lbf·ft).
FLOAT MODULE SETUP AT DEALER
