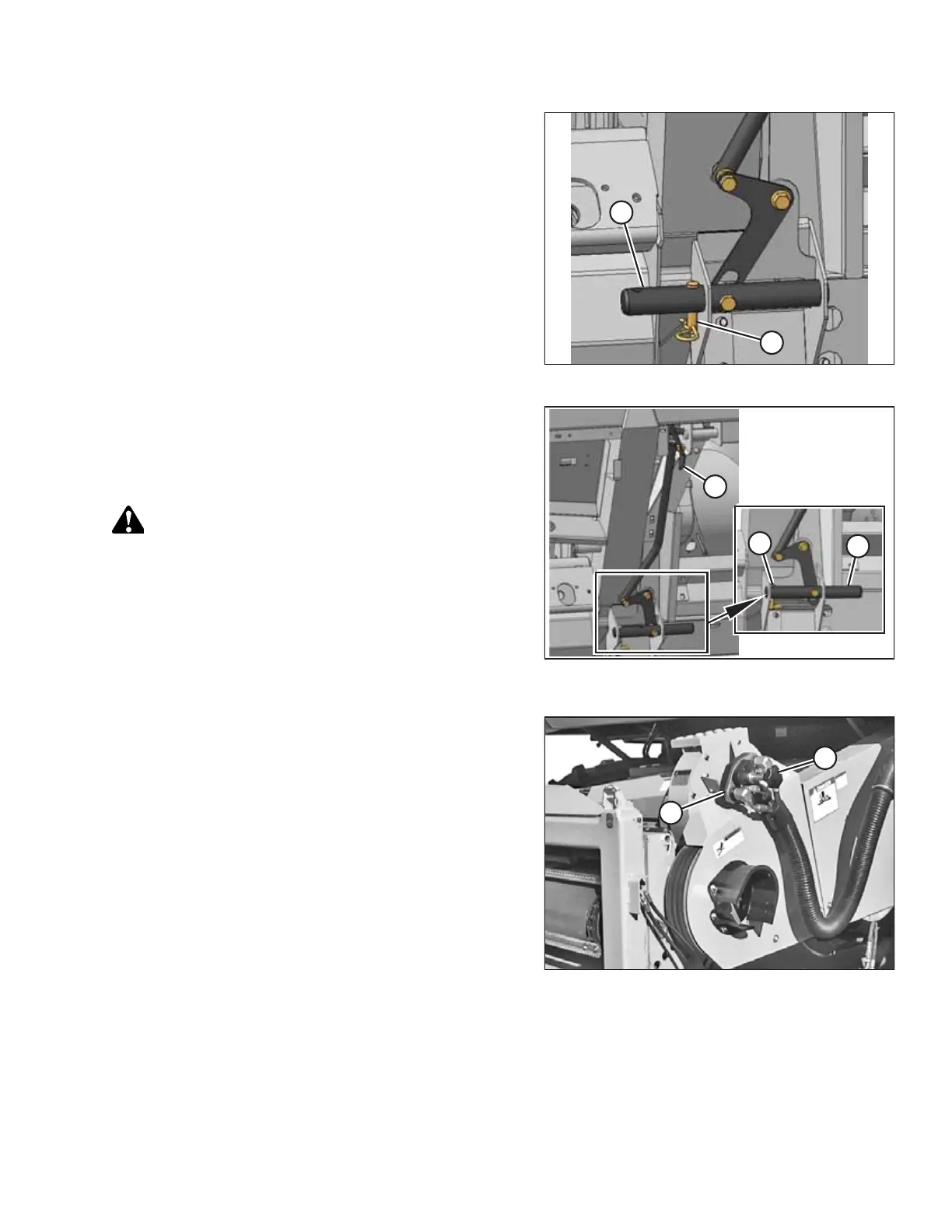

Figure 7.48: Locking Pins
6. Remove locking pin (B) from float module pin (A).
Figure 7.49: Engaging Pins
7. Lower handle (A) to engage float module pins (B) into the
feeder house. Reinsert locking pin (C) and secure with
the hairpin.
8. Remove the blocks from under the cutterbar.
WARNING
Never start or move the machine until you are sure all
bystanders have cleared the area.
9. Start the engine. For instructions, refer to the combine
operator’s manual.
10. Lower the header fully.
11. Shut down the engine, and remove the key from
the ignition.
Figure 7.50: Combine Coupler
12. Unscrew knob (A) on combine coupler (B) to release the
coupler from the receptacle.
13. Clean coupler (B) and receptacle.
ATTACHING HEADER TO COMBINE
