215184 230 Revision A

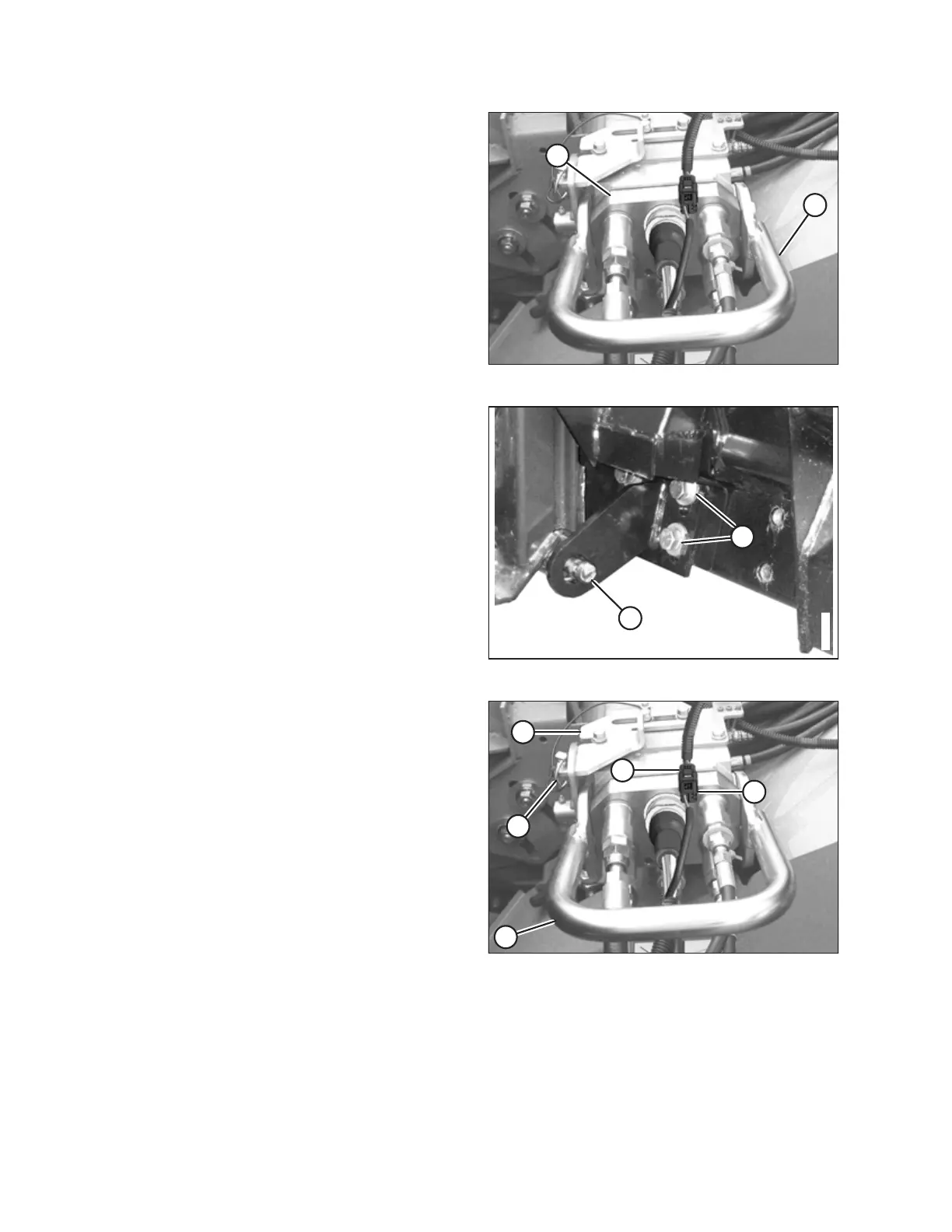

Figure 7.59: Multicoupler
7. Position multicoupler (A) onto the receptacle, and pull
handle (B) to engage the lugs on the multicoupler into the
handle.
8. Pull handle (B) to a horizontal position and ensure
multicoupler (A) is fully engaged into the receptacle.
Figure 7.60: Feeder House Pin
9. Ensure that both feeder house pins (A) are fully engaged
into the float module brackets.
NOTE:
If pins (A) do not fully engage the float module brackets,
loosen bolts (B) and adjust the bracket as required.
10. Tighten bolts (B).
Figure 7.61: Multicoupler
11. Slide latch (A) to lock handle (B) in position and secure with
lynch pin (C).
12. If the float module is equipped with the reel
fore-aft/header tilt selector, connect harness (D) to
combine connector (E).
ATTACHING HEADER TO COMBINE
