215184 238 Revision A

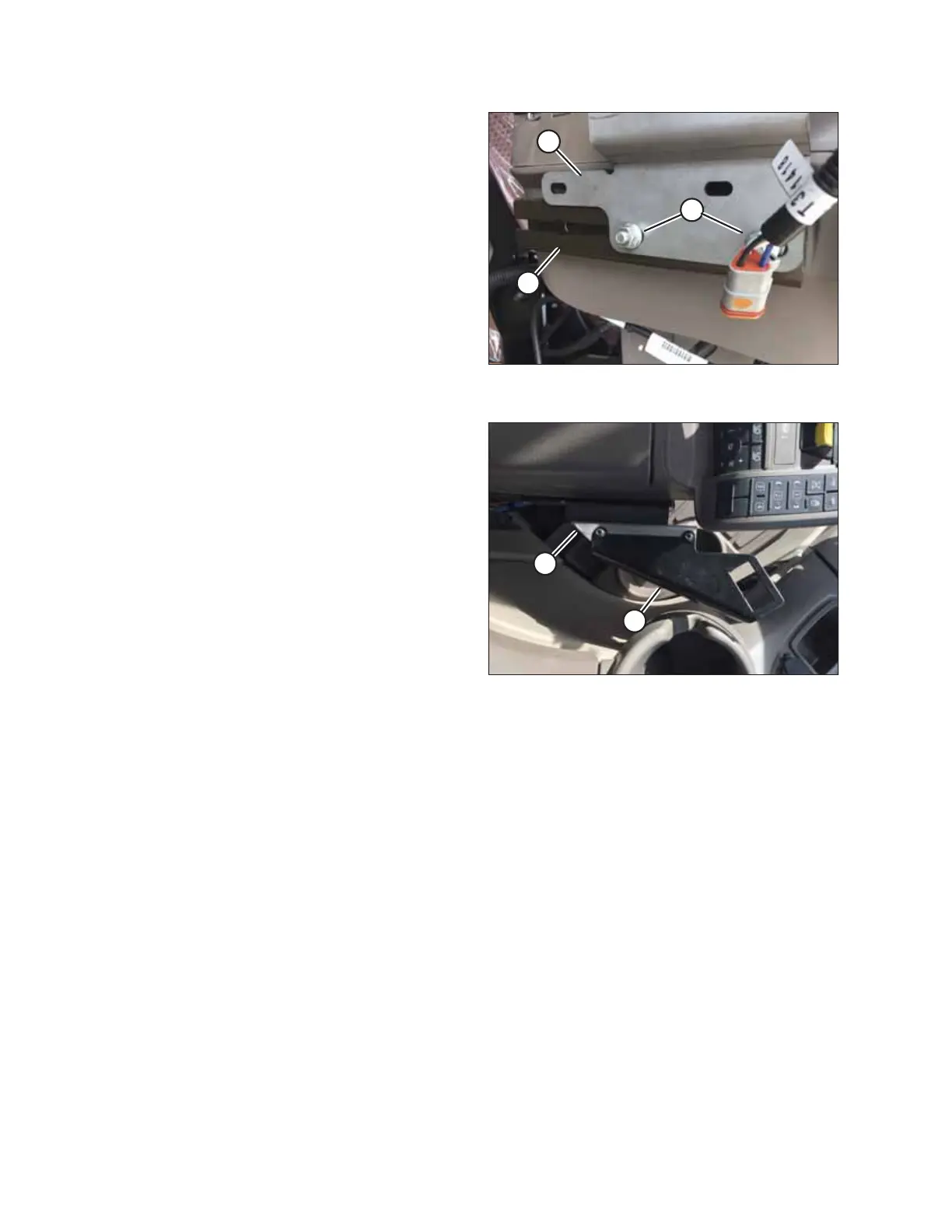

Figure 7.78: Side View of Seat with Supports Installed
in Alternative Location
23. S7 and T7 Series combines only – alternative installation
location: Secure tilt/draper speed support (A) to track (B)
with two M8 carriage head bolts (C) (MD #197171) and two
M8 hex flange lock nuts (MD #135337).
Figure 7.79: Top View of Armrest Showing Supports
Installed in Alternative Location
A - Tilt/Draper Speed Support B - Rocker Switch Support
NOTE:
The rocker switch is not shown in the illustration at right.
ATTACHING HEADER TO COMBINE
