215184 242 Revision A

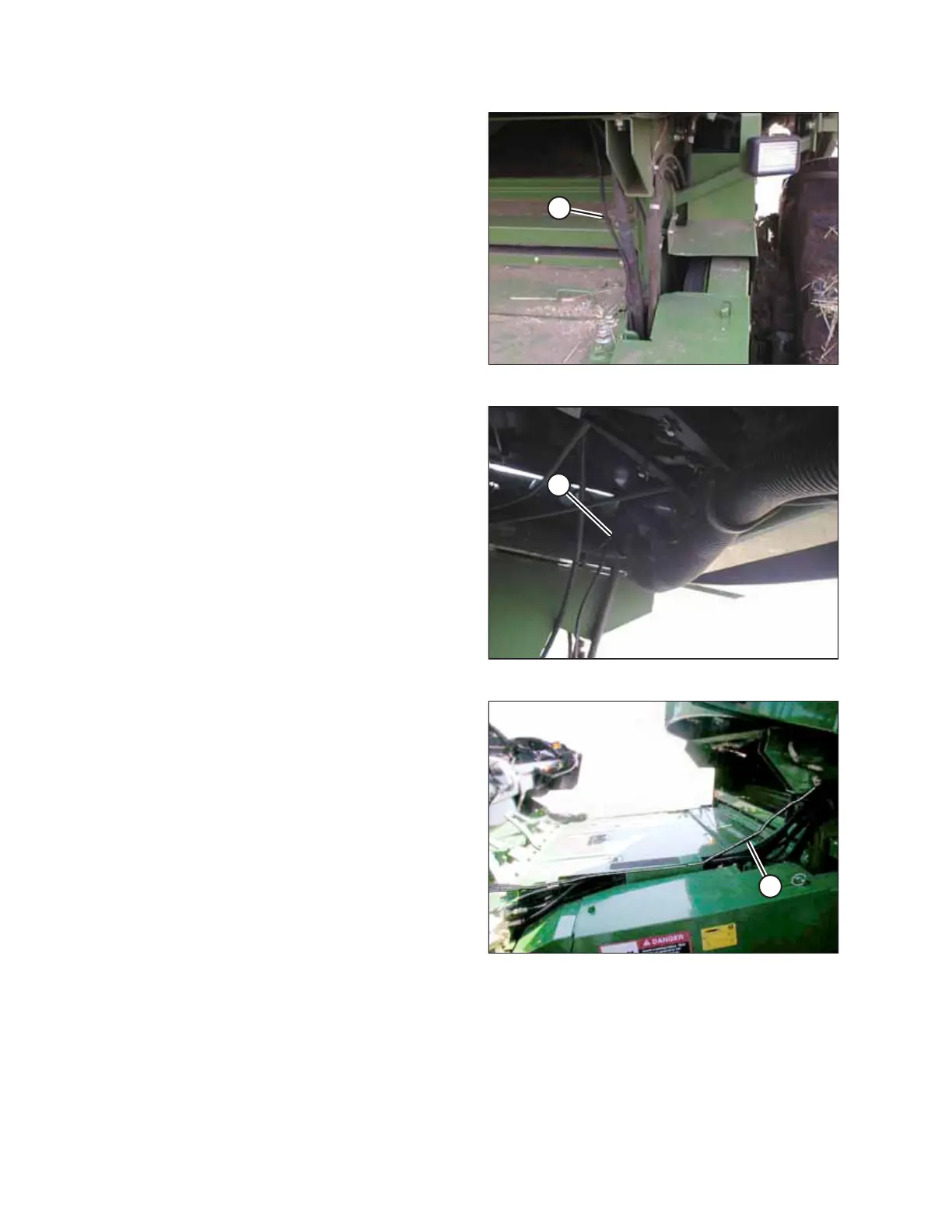

Figure 7.86: Switch Harness Routing
12. Route switch harness (A) across the underside of the cab,
alongside an existing harness, to the left side of the
feeder house.
IMPORTANT:
To prevent damage to harness, ensure adequate slack by
lowering the feeder house fully before securing harness
with cable ties.
Figure 7.87: Switch Harness Routing
13. Secure switch harness (A) at the rear of the feeder house
with cable tie.
Figure 7.88: 60/70 Series Harness Routing
14. Route switch harness (A) through the welded hose guide on
feeder house.
ATTACHING HEADER TO COMBINE
