215184 312 Revision A

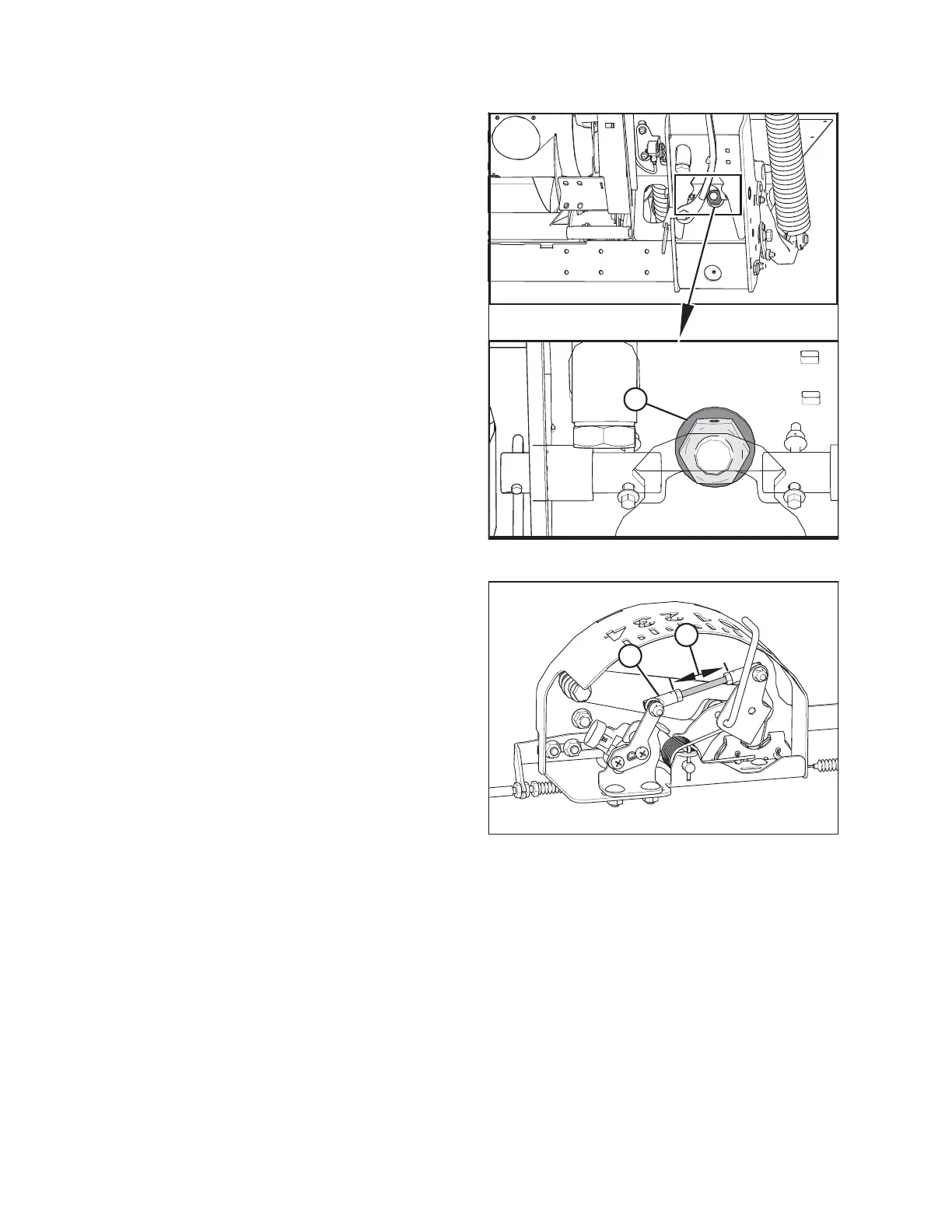

Figure 9.11: Down Stop Washer
4. Check that float lock linkage is on down stops (washer [A]
cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
Figure 9.12: Float Indicator Box
5. Locate linkage assembly (A). Verify that dimension (B) is set
to 55 mm (2 3/16 in.). If it is not, adjust linkage (A).
SETTING UP AUTO HEADER HEIGHT CONTROL
