215184 327 Revision A

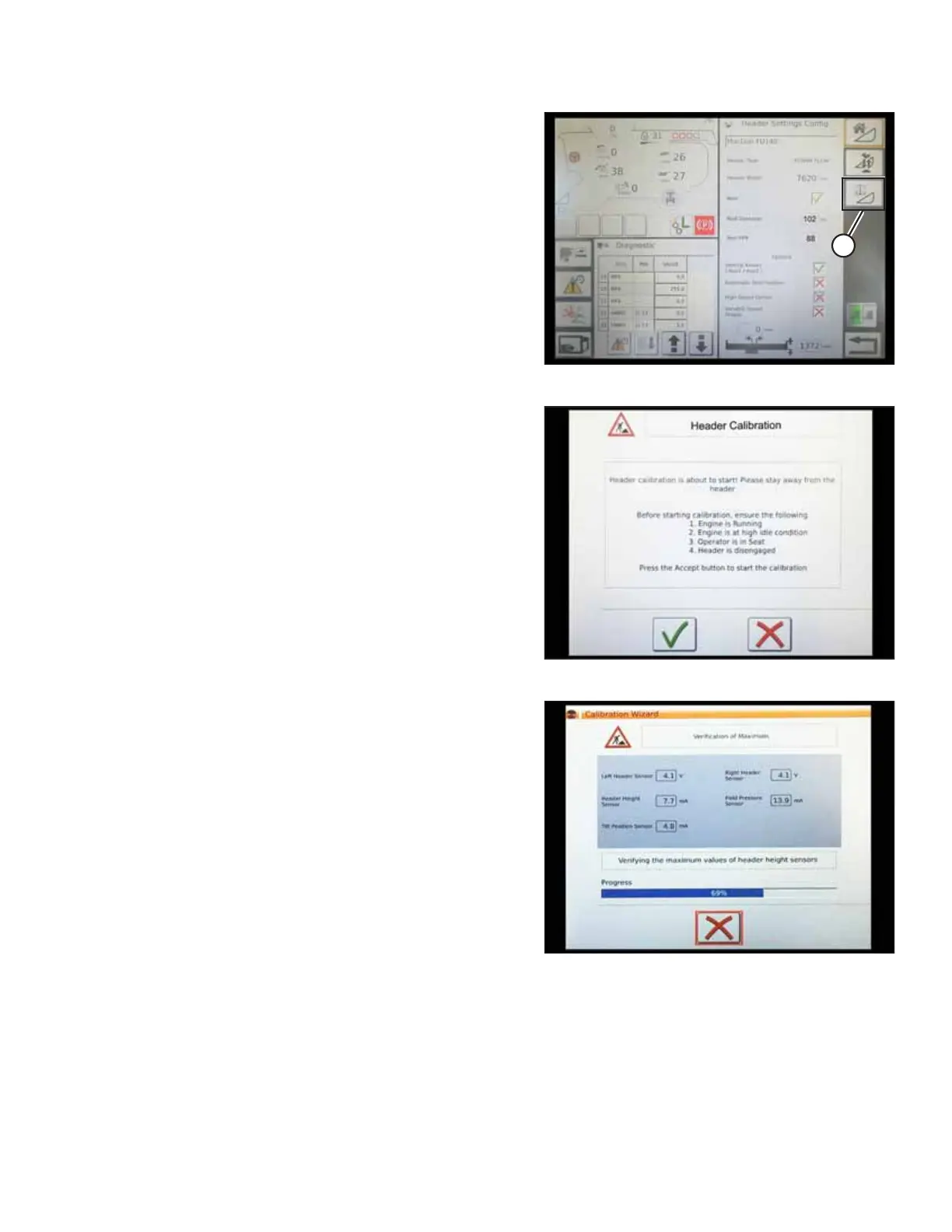

Figure 9.41: Header Settings Page
2. Touch HEADER CALIBRATE (A) at the right side of the
HEADER SETTINGS CONFIG page.
Figure 9.42: Header Calibration Warning
3. The hazard warning for HEADER CALIBRATION appears.
Make sure that all conditions are met.
4. Touch the green check mark at the bottom of the page to
start the calibration and follow the on-screen commands.
Figure 9.43: Calibration in Progress
A progress bar is provided and the calibration can be
stopped by touching the red X. The header moves
automatically and erratically during this process.
SETTING UP AUTO HEADER HEIGHT CONTROL
