WARNING
Check to be sure all bystanders have cleared the area.
1. Position the header 150 mm (6 in.) above the ground, and unlock the float.

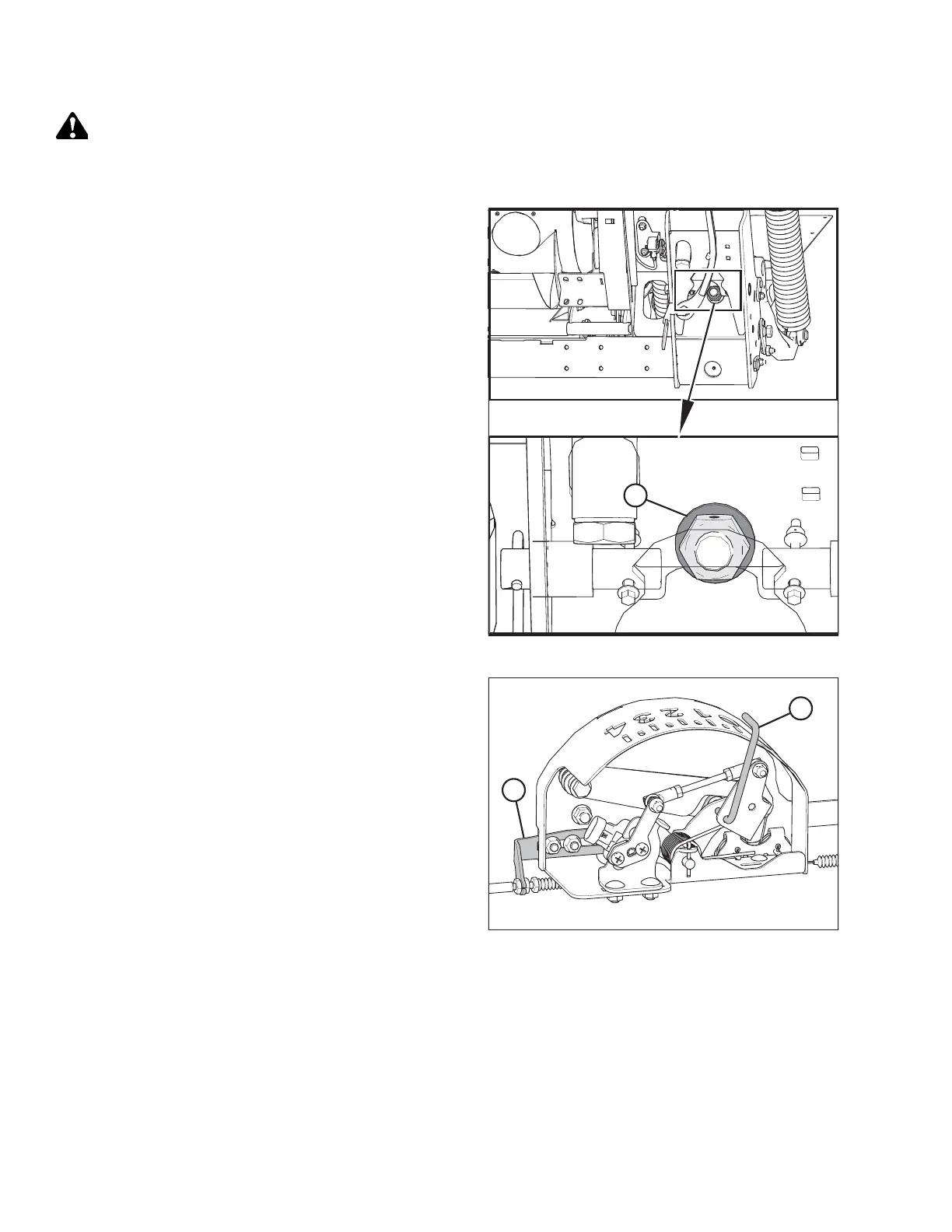

Figure 9.65: Float Lock
2. Check that float lock linkage is on down stops (washer [A]
cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the auto header height control
(AHHC) system.
Figure 9.66: Float Indicator Box
3. Adjust cable take-up bracket (B) (if necessary) until
pointer (A) on float indicator is on 0.
4. Ensure header float is unlocked.
SETTING UP AUTO HEADER HEIGHT CONTROL
