1. Engage separator and header.
1023289
A

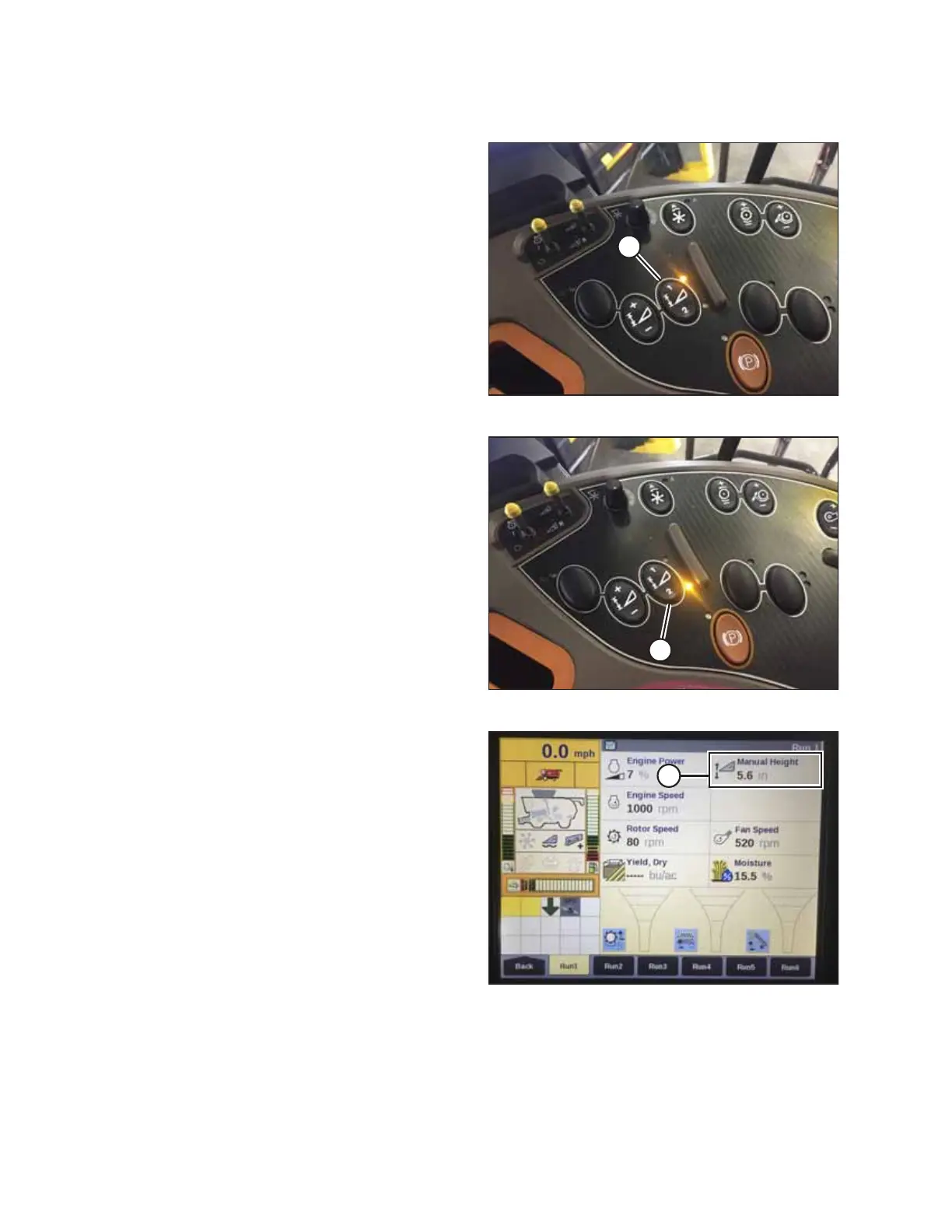

Figure 9.73: Case Combine Console
2. Manually raise or lower the header to the desired cutting
height.
3. Press 1 on button (A). A yellow light next to the button will
illuminate.
NOTE:
When setting presets, always set header position before
setting reel position. If header and reel are set at the same
time, the reel setting will not be saved.
4. Manually raise or lower the reel to the desired working
position.
5. Press 1 on button (A). A yellow light next to the button will
illuminate.
1023288
A
Figure 9.74: Case Combine Console
6. Manually raise or lower the header to a second desired
cutting height.
7. Press 2 on button (A). A yellow light next to the button will
illuminate.
8. Manually raise or lower the reel to the desired working
position.
9. Press 2 on button (A). A yellow light next to the button will
illuminate.
1023291
A
Figure 9.75: Case Combine Display – Run 1 Page
Up and down arrows should now appear in MANUAL
HEIGHT box (A) on the RUN 1 page on the combine display.
This indicates that the auto header height control (AHHC) is
functioning.
