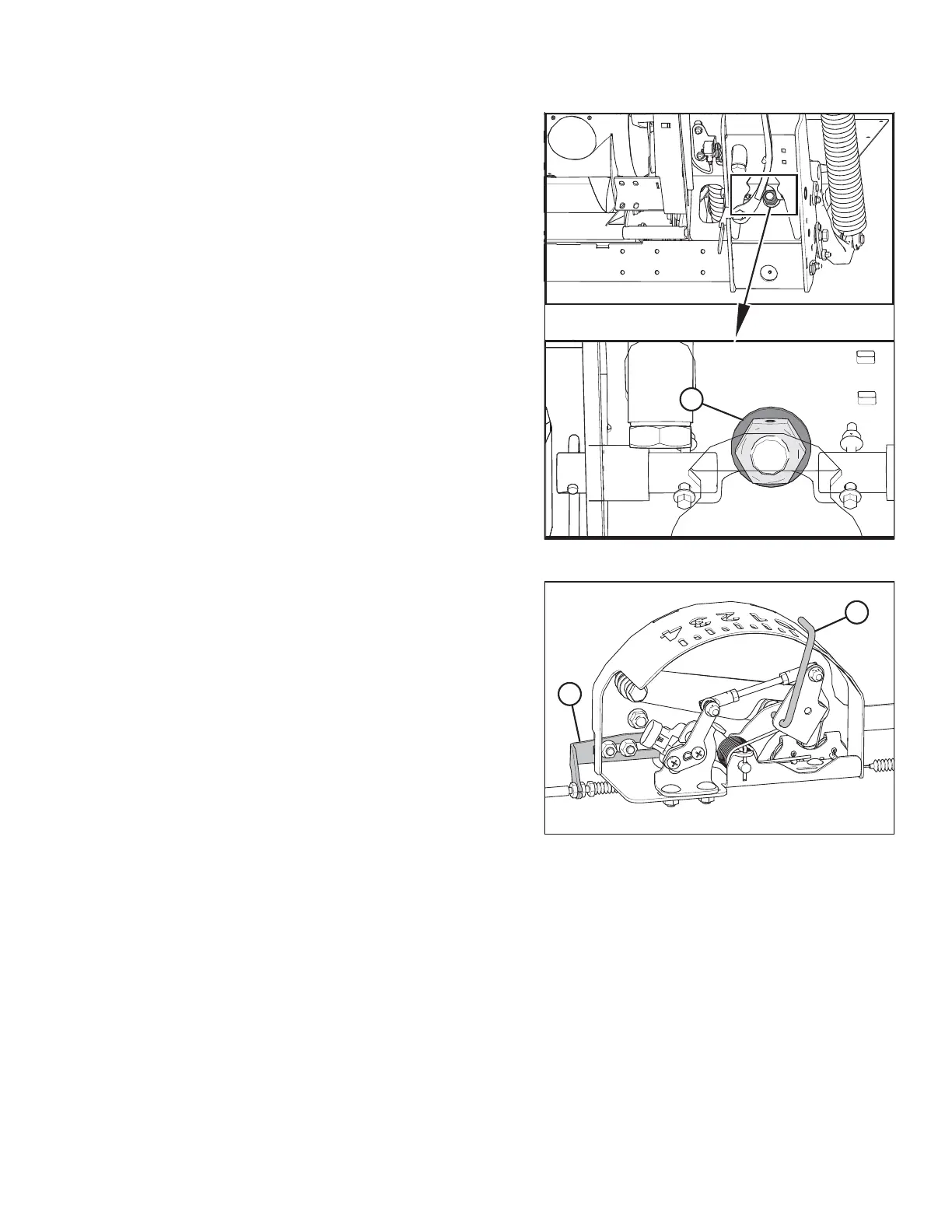

Figure 9.200: Float Lock
2. Check that float lock linkage is on down stops (washer [A]
cannot be moved) at both locations.
NOTE:
If the header is not on down stops during the next two
steps, the voltage may go out of range during operation
causing a malfunction of the AHHC system.
Figure 9.201: Float Indicator Box
3. Ensure pointer (A) on the float indicator box is on 0. If
necessary, adjust cable take-up bracket (B) until pointer is
on 0.
SETTING UP AUTO HEADER HEIGHT CONTROL
