MacDon D1 Series - Page 505

215184 481 Revision A
1016049
A

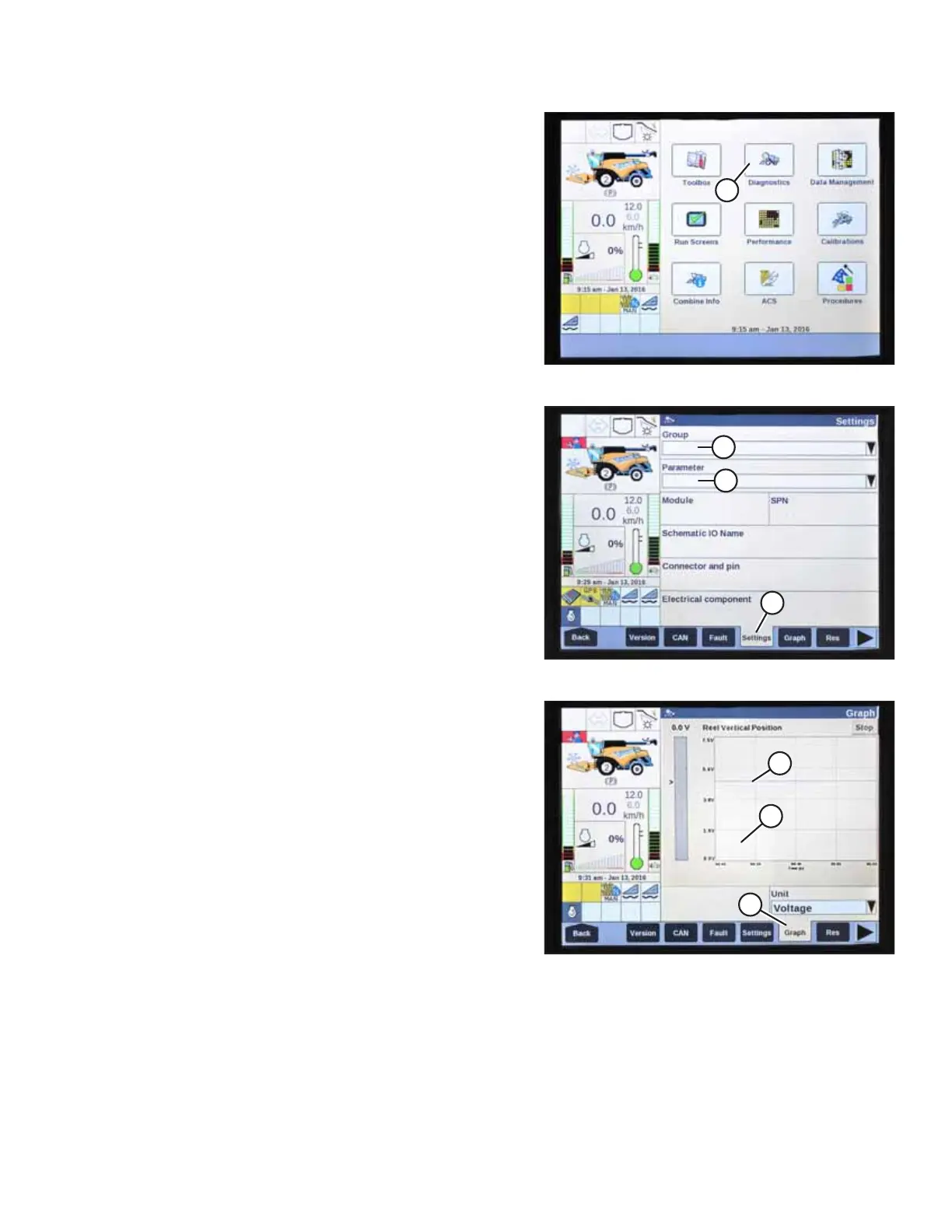

Figure 9.390: New Holland Combine Display
1. On the main page of the combine display, select
DIAGNOSTICS (A). The DIAGNOSTICS page opens.
1024227
A
B
C
Figure 9.391: New Holland Combine Display
2. Select SETTINGS tab (A). The SETTINGS page opens.
3. From GROUP menu (B), select HEADER.
4. From PARAMETER menu (C), select REEL VERTICAL
POSITION.
1023921
A
B
C
Figure 9.392: New Holland Combine Display
5. Select GRAPH tab (A). The REEL VERTICAL POSITION graph
displays.
6. Lower the reel to view high voltage (B). The voltage should
be 4.1– 4.5 V.
7. Raise the reel to view low voltage (C). The voltage should
be 0.5– 0.9 V.
8. If either voltage is out of range, refer to 10 Checking and
Adjusting Reel Height Sensor, page 487.
SETTING UP AUTO HEADER HEIGHT CONTROL
