215184 489 Revision A

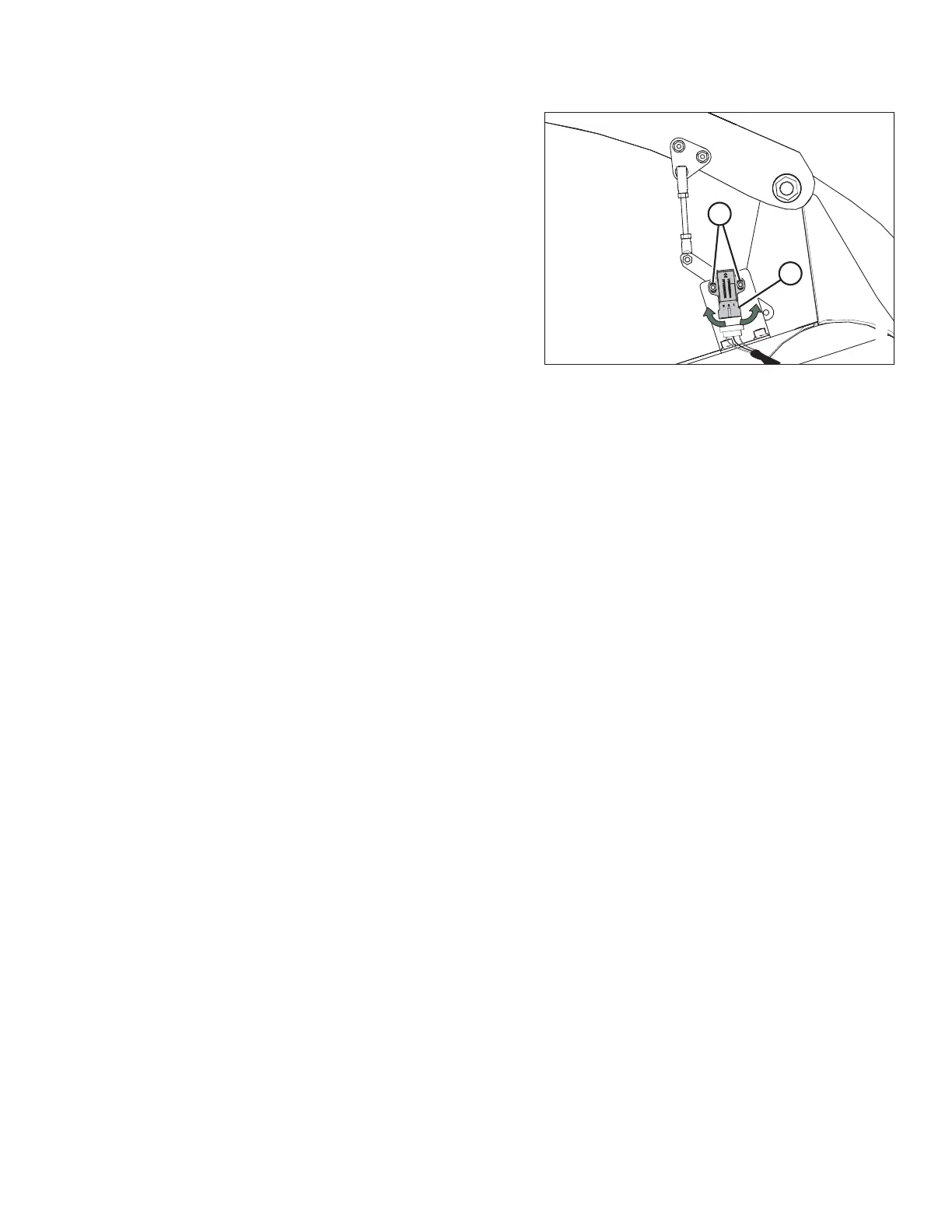

Figure 10.3: Reel Height Sensor – Right Reel Arm with
Reel Up
8. Start the engine.
9. Raise the reel fully.
10. Engage the reel safety props.
11. Use the combine display or a voltmeter (if measuring the
sensor manually) to measure voltage range X. Refer to
Table 10.1, page 488 for range requirements.
12. If using a voltmeter, measure the voltage between the
ground (Pin 2 wire) and the signal (Pin 3 wire) at the reel
height sensor (A).
13. Shut down the engine, and remove the key from
the ignition.
14. Loosen two M5 hex nuts (B) and rotate sensor (A) to
achieve voltage range X.
15. Repeat checking and adjusting until voltage range X is
within the range specified.
16. Start the engine. For instructions, refer to the combine
operator’s manual.
17. Disengage the reel safety props.
18. Lower the reel fully.
19. Recheck voltage range Y and ensure it is still within the
range specified. Adjust if required.
CHECKING AND ADJUSTING REEL HEIGHT SENSOR
