Removing shipping stands from the float module

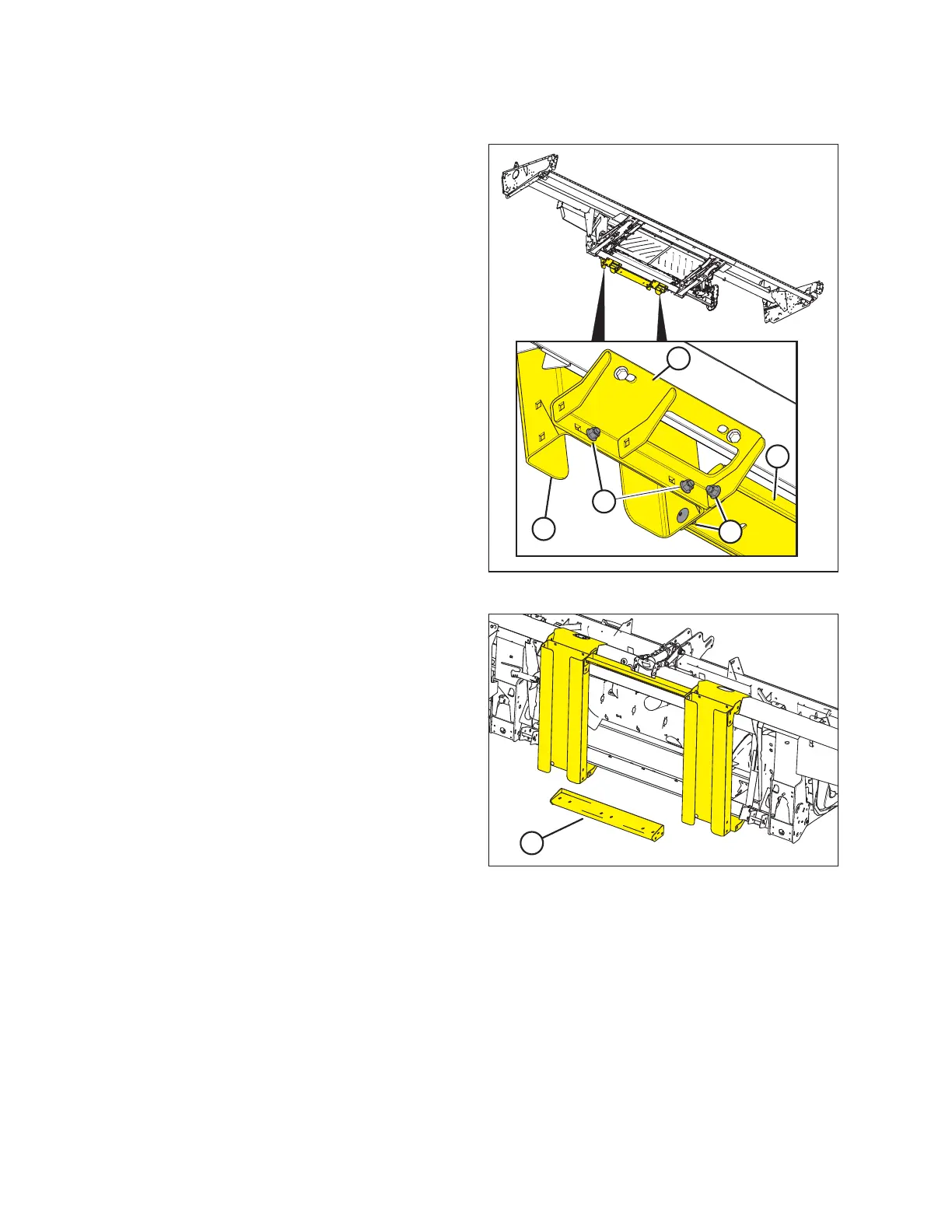

Figure 3.54: Shipping Stands
1. Remove two bolts (A) securing right fork channel (B) to
shipping stand (C).
NOTE:
To access the bolts at the lower stand support, the header
must be supported with 150 mm (6 in.) blocks, as directed
in Step 5, page 18.
2. Remove two bolts (D) securing right fork channel (B) to
lower brace (E).
3. Repeat the steps above for the left side.
Figure 3.55: Shipping Stands
4. Remove lower brace (A).
ASSEMBLING THE HEADER AND FLOAT MODULE
