Center Disc – View from Cam End
1008516
A
B
C

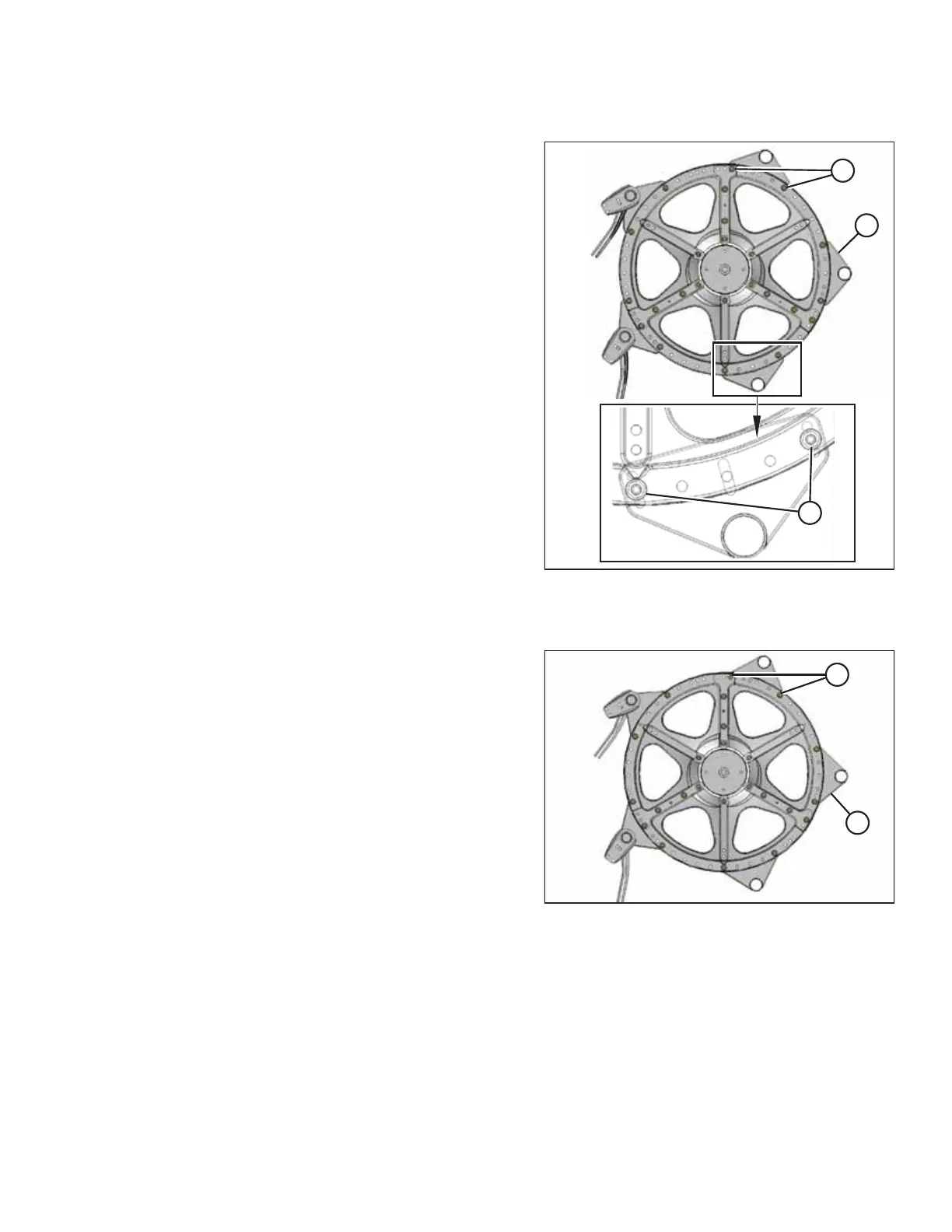

Figure 3.137: Center Disc – View from Cam End
7. Position tine tubes on discs using the template on the cam
track as a guide.
a. Position brackets (B) on far side.
b. Loosely install eleven 1/2 x 3/4 in. Torx
®
bolts (A)
(found in the hardware bag labelled B) into the middle
hole (C).
Tail End Disc – View from Cam End
1008517
A
B
Figure 3.138: Tail End Disc – View from Cam End
8. Position tine tubes on discs using the template on the cam
track as a guide.
a. Position brackets (B) on far side.
b. Loosely install eleven 1/2 x 3/4 in. Torx
®
bolts (A)
(found in the hardware bag labelled B).
