Using Advanced Gaging Features 143

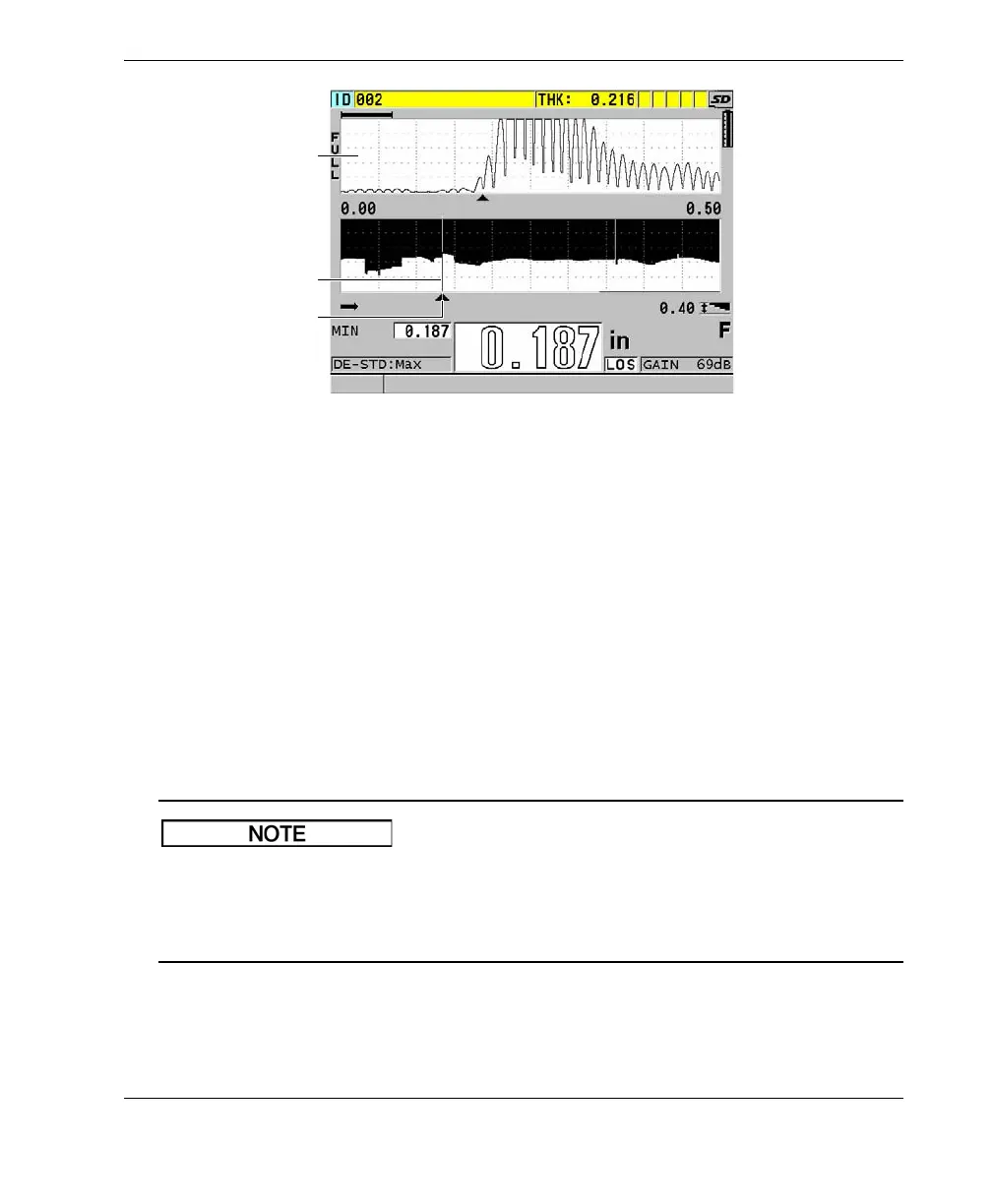

Figure 10‑7 B‑scan freeze review elements
B‑SCAN MAX THK MODE:
Determines the vertical scale of the B-scan with the following two options:
A‑SCAN RANGE
The top and bottom of the vertical scale correspond to the start and end of the
A-scan display range.
SPECIFIED THK
The top of the vertical scale represents the zero value and the bottom of the
scale is the value that you enter in the B‑SCAN MAX THICKNESS
parameter that appears. The allowed range is 0.00 mm to 635.00 mm (0.000 in.
to 25.000 in.).
Olympus does not recommend using the A-scan zoom feature when B‑SCAN MAX
THICKNESS is set to A‑SCAN RANGE. The zoom constantly adjusts the start and
the end points of the A-scan range, resulting in a B-scan image where the scale
changes as the thickness changes.
Waveform at minimum
location
Review marker
Minimum location
marker
NOTE

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
