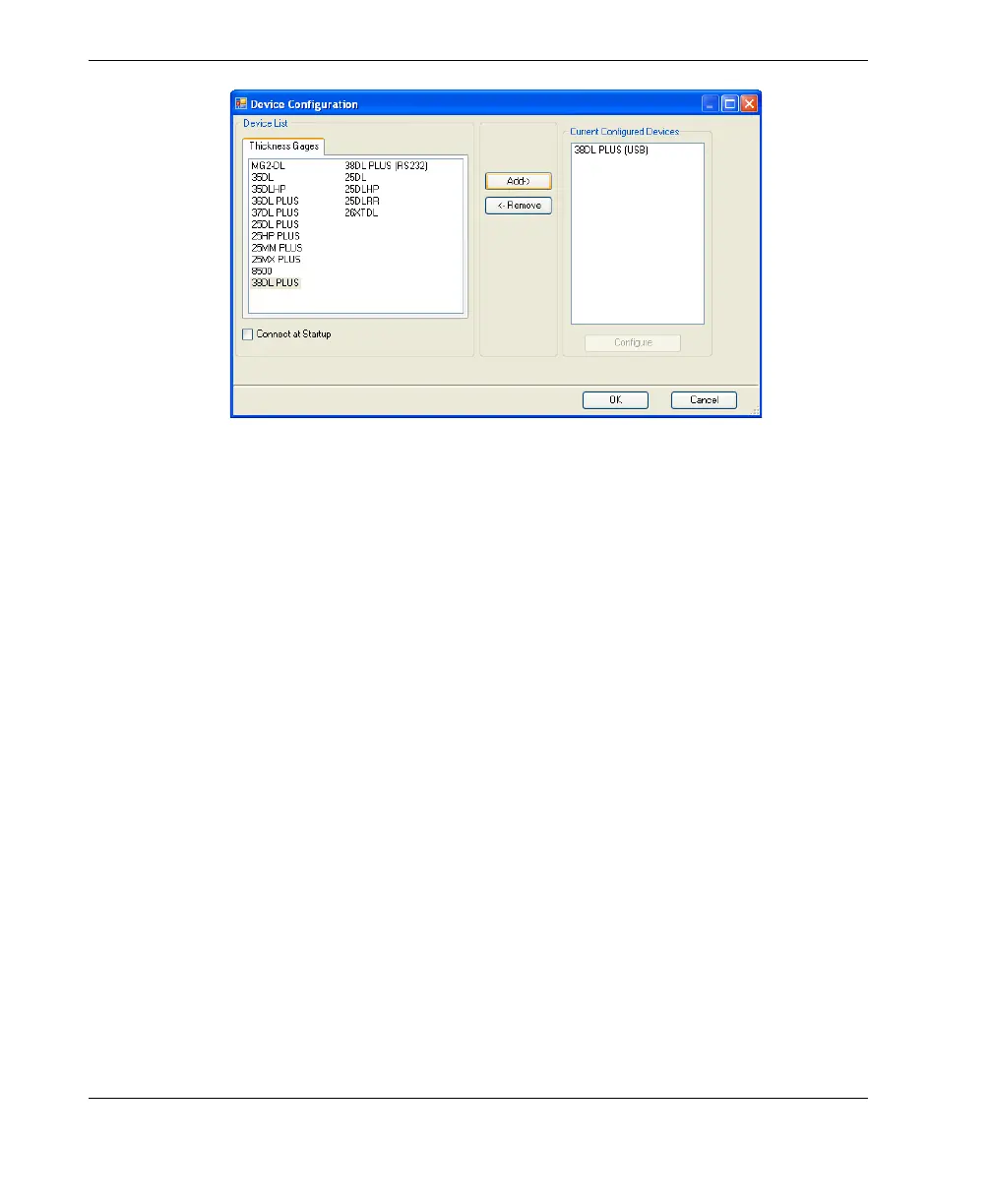

Figure 14‑7 The Device Configuration dialog box
5. In GageView, perform the following tasks:
a) On the menu, select Device > Tools.
b) In the Device Tools dialog box (see Figure 14-8 on page 257), select Screen
Capture, and then click Receive.
The screen image appears when the data transfer completes.
c) Click Copy to copy the screen capture to the Windows clipboard.
OR
Click Save to save the image as a BMP file to a folder and file name of your
choice.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
