Initial Setup 59

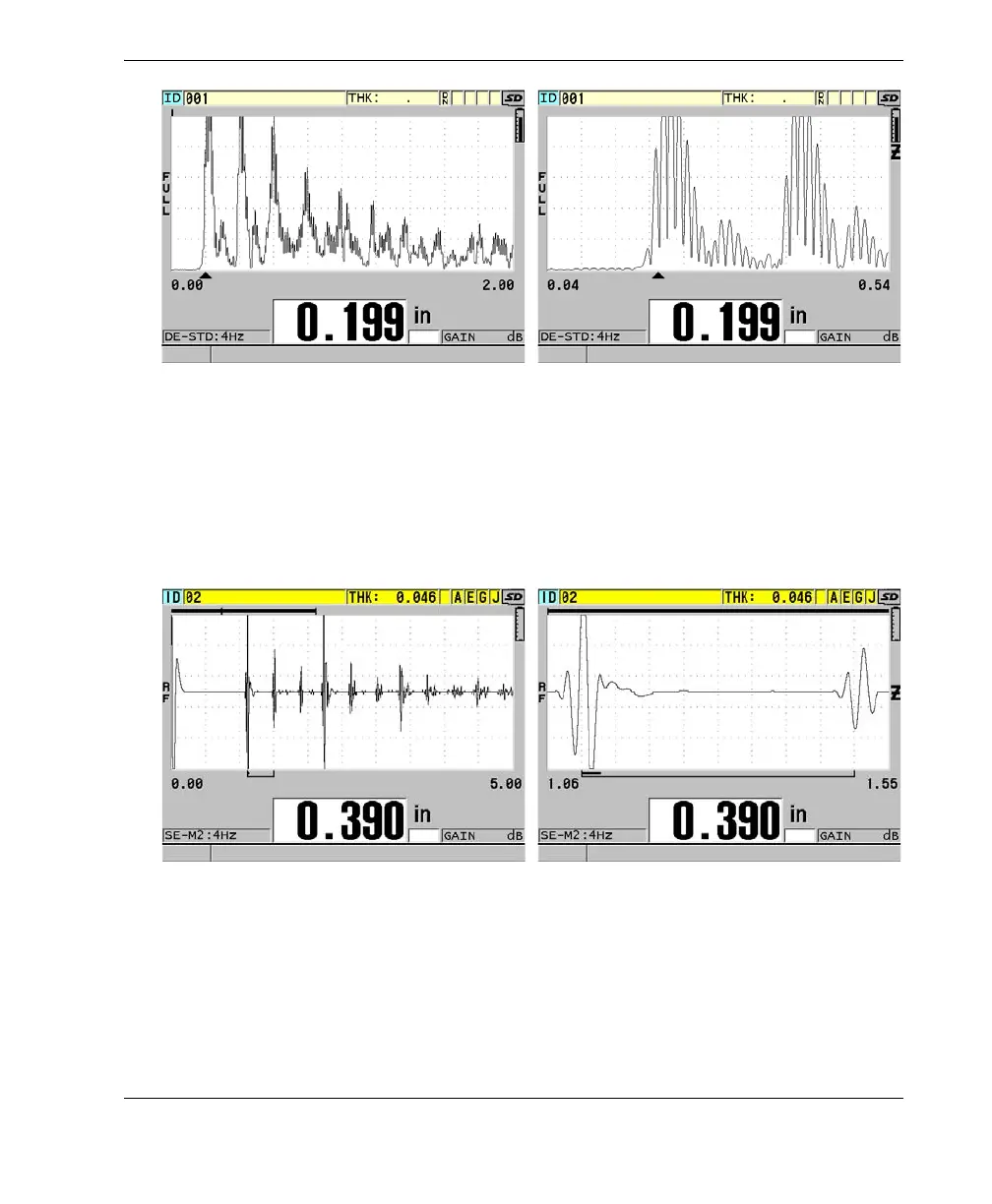

Figure 4‑8 Comparing normal and zoomed display in mode 1
The zoom with single element transducers in mode 2 adjusts the waveform range and
delay so that the interface echo and the first back-wall echo appear on the waveform
display (see Figure 4-9 on page 59).
Figure 4‑9 Comparing normal and zoomed display in mode 2
The zoom with single element transducers in mode 3 adjusts the waveform range and
delay so that the interface echo and the second measured back-wall echo appear on
the waveform display (see Figure 4-10 on page 60).
Normal display Zoomed display
Normal display Zoomed display

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
