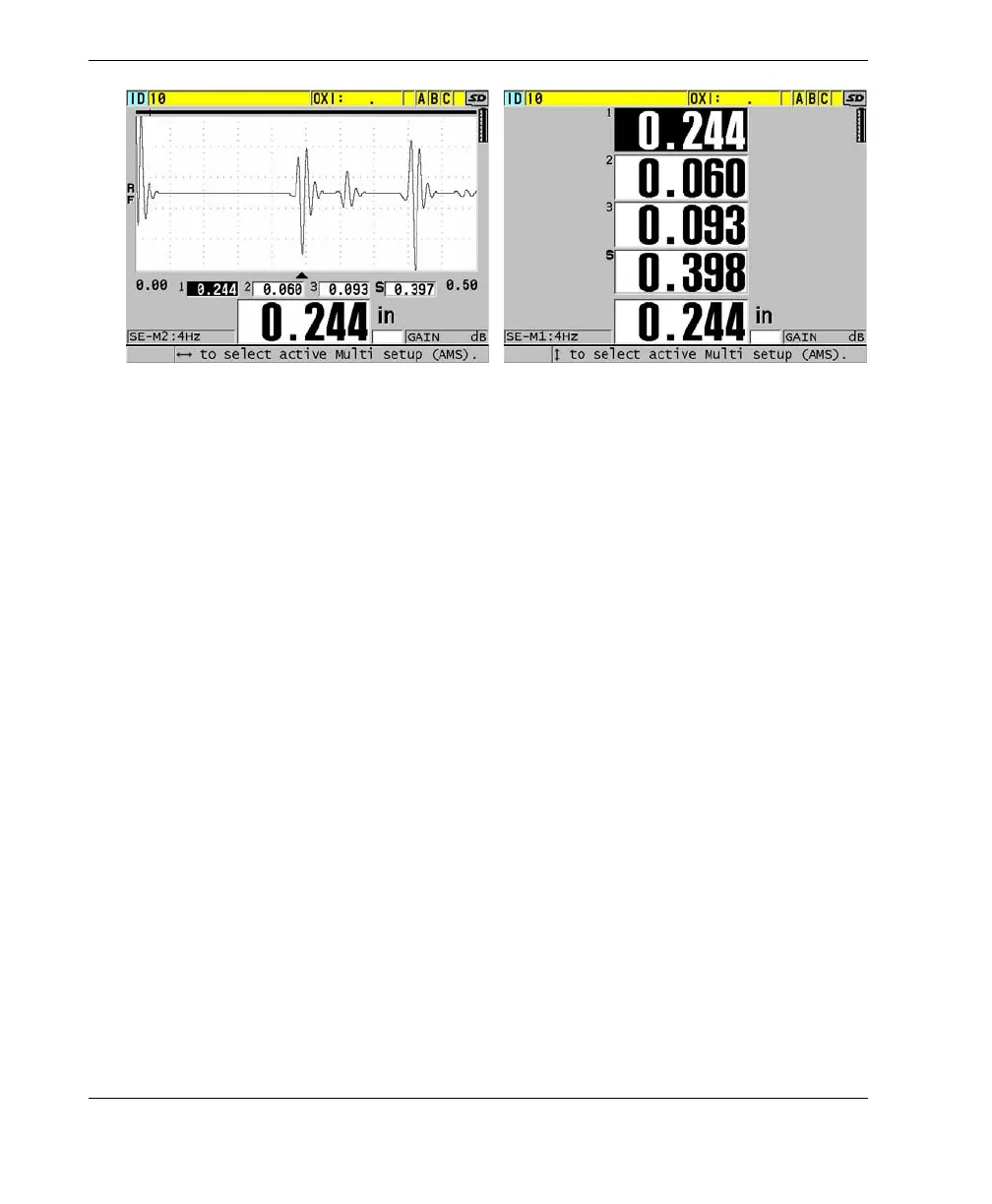

Figure 7‑8 Multi‑measurement display modes with three layers and the sum
e) Set SAVE/SEND KEY to one of the following options to determine the
operation when you press [SAVE/SEND]:
○ ACTIVE: Saves only the active measurement (the highlighted thickness)
to the datalogger.
○ AUTO‑INCR ACTIVE: Saves the active measurement to the datalogger,
and then changes the active setup to the next setup in the
multi-measurement list. This option allows you to easily save all
multilayer measurement by repeatedly pressing [SAVE/SEND].
f) For SETUP 1, SETUP 2, SETUP 3, and SETUP 4, select the custom setups that
you created in step 1 for each of the layers. Selecting NONE shows no
thickness at the location.
g) When SUM MODE is set to ON, in SUMMATION, select the setups for
which you want to sum the thickness measurements.
h) Press [MEAS] to return to the measurement screen with the
multi-measurement function active in the normal mode.
7.4.3 Using the Multi-Measurement with the Soft Contact Mode
Before you can use the multi-measurement function, you must create and save custom
setups for the sagittal height and the lens thickness measurement. The 38DL PLUS
calculates the radius of curvature using the sagittal height value and the diameter of
the pedestal that you enter.
Large fontWaveform

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
