Chapter 4 52
— DISPLAY BRIGHTNESS to select one of the predefined brightness levels
(see “Display Brightness” on page 53 for details).
— WAVEFORM RECTIFICATION to select one of the rectification modes (see
“Waveform Rectification” on page 54 for details).
— WAVEFORM TRACE to select one of the trace types (see “Waveform Trace”
on page 55 for details).
— VGA OUTPUT to turn ON or OFF, the VGA signal for the VGA output (see
“Using the VGA Output” on page 86 for details).

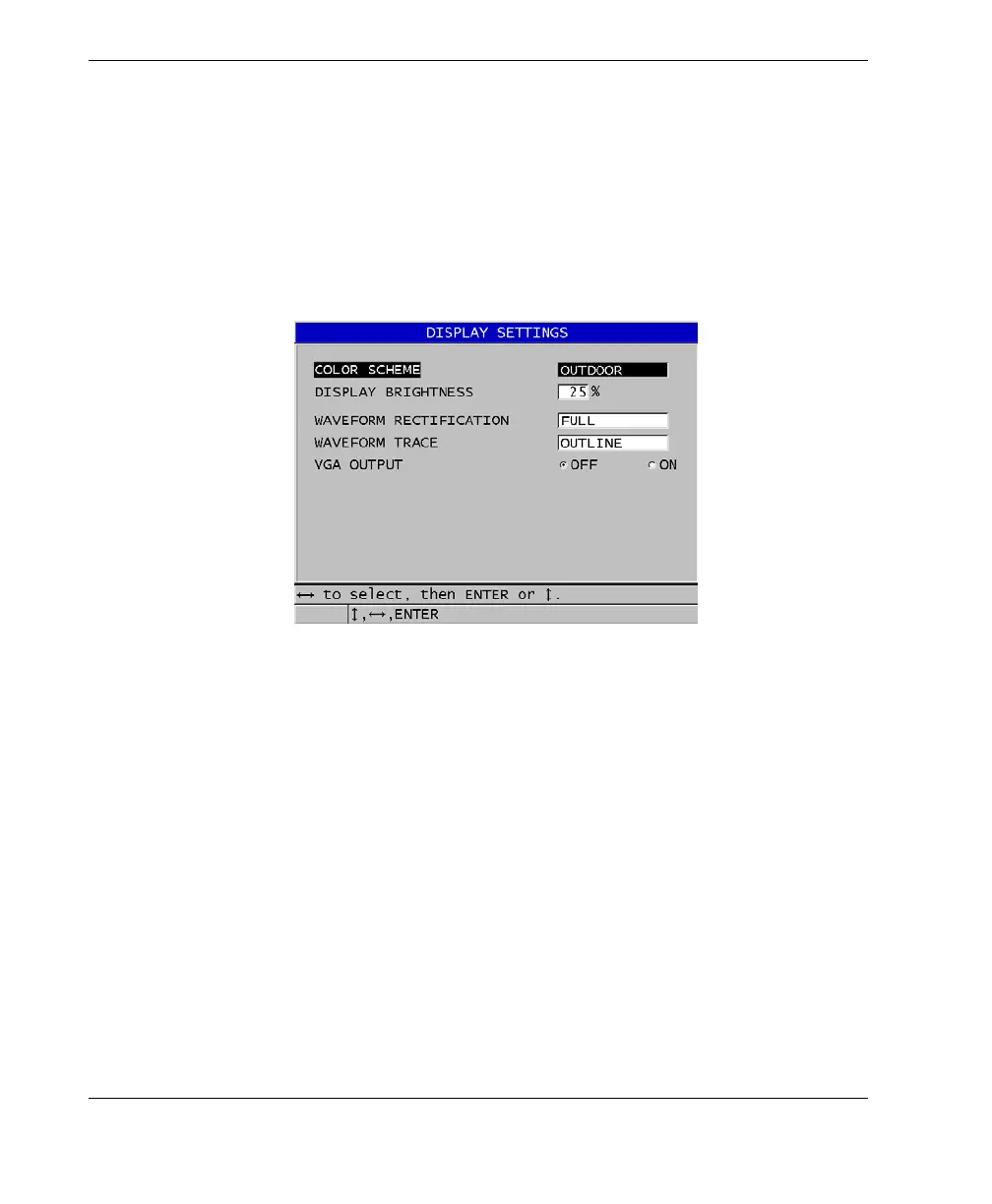

Figure 4‑3 The DISPLAY SETTINGS screen
3. Press [MEAS] to return to the measurement screen.
4.4.1 Color Schemes
The 38DL PLUS offers two standard color schemes designed to provide best display
visibility in indoor or outdoor lighting conditions (see Figure 4-4 on page 53). From
the measurement screen, press [DISPLAY] to access the COLOR SCHEME
parameter.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
