Olympus 38DL PLUS User Manual

DMTA-10004-01EN, Rev. D, November 2016
Chapter 5 80
Pressing [2nd F], [CAL VEL] (VEL) opens the VELOCITY screen where you can see
and edit the calibrated metal sound velocity. Pressing [2nd F], [CAL VEL] (VEL) again
opens the VELOCITY screen for the calibrated sound velocity through the coating.
5.6 Echo Detection Modes with Dual Element Transducers
With dual element transducers, the 38DL PLUS offers three echo detection modes
allowing you to measure thicknesses in various material conditions. A description of
each of the three echo detection modes (STANDARD, AUTO E‑TO‑E, and MANUAL
E‑TO‑E) follows:
STANDARD
The standard echo detection mode measures the thickness based on the time of
flight between the main bang to the first back-wall echo. Use this mode for
uncoated materials with good echo waveforms.
The DE‑STD indicator appears to the left of the thickness reading and a
triangular echo detection marker appears at the back-wall echo below the
waveform display (see Figure 5-12 on page 80).

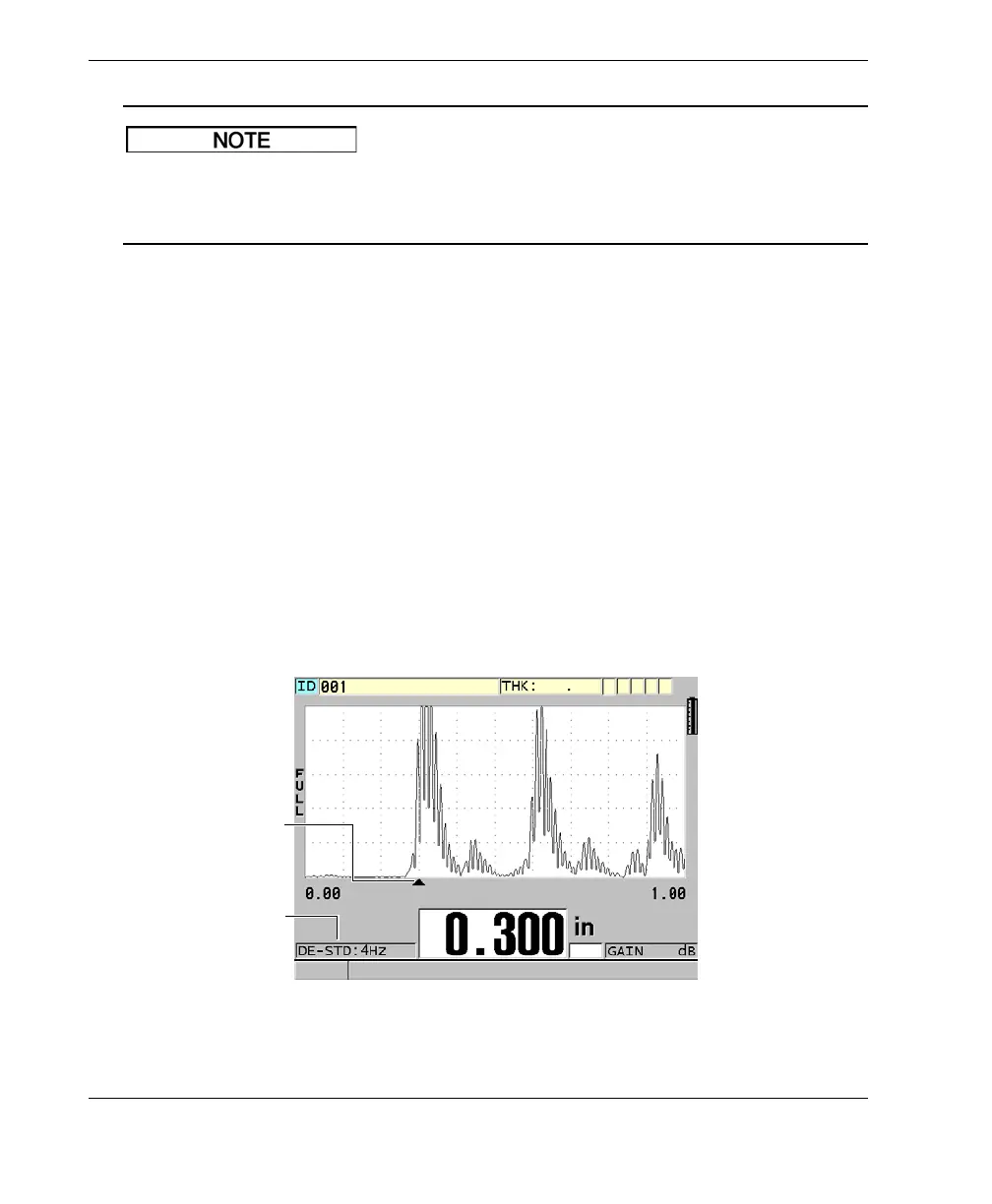

Figure 5‑12 Measuring with the standard echo detection mode
NOTE
Dual element (DE)
standard (STD) echo
detection mode
Echo detection marker

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
