2. In the menu, select TESTS.
3. In the TESTS screen, select the desired test, and then press [ENTER].
4. When KEYPAD TEST is selected, in the KEYPAD TEST screen (see Figure 15-2
on page 268):
a) Test any key by pressing it on the keypad.
When that specific key is working correctly, the instrument displays the name
of the key in the last key pressed box.
b) Press [ENTER] to terminate the keypad test.

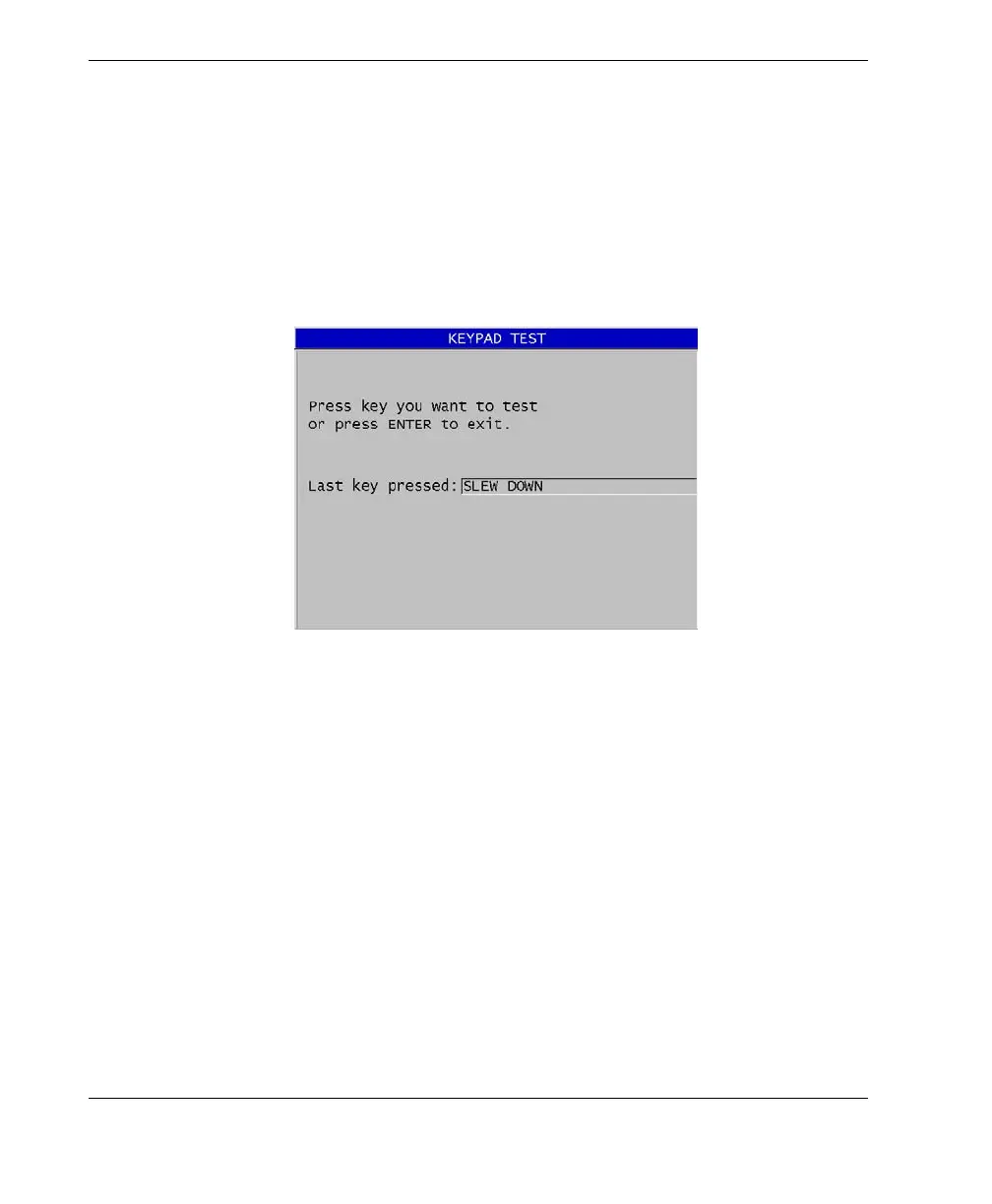

Figure 15‑2 The KEYPAD TEST screen
5. When VIDEO TEST is selected:
a) In the VIDEO TEST screen, press [DISPLAY] to start the video test.
The display shows three vertical color strips that darken to black. Any
problems with the display show up as a disruption of the pattern.
b) Press [ENTER] to terminate the video test.
6. When INTERNAL SD CARD TEST or EXTERNAL SD CARD TEST is selected,
in the INTERNAL SD CARD TEST or EXTERNAL SD CARD TEST screen:
a) Press [DISPLAY] to start the test.
The test result appears in SD Card Test Status. The possible results are:
○ PASS: indicates that the card is functioning properly.
○ FAIL: indicates that there is a problem with the memory card. When the
external card fails, re-install or replace the card, and then restart the
instrument. When the internal card fails, contact Olympus for service.

Olympus 38DL PLUS Specifications

General

Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Data Logger	Yes
Interface	USB, RS-232
Thickness Range	0.08 mm to 635 mm (0.003 in. to 25 in.) depending on material and transducer
Display	Backlit LCD
Battery Type	Three alkaline or NiMH AA cells
Pulser	Adjustable square wave pulser
Receiver Bandwidth	0.5 MHz to 20 MHz
Languages	English, French, German, Spanish, Italian, Russian, Japanese, Chinese
Resolution	0.001 mm or 0.0001 in.
Transducer Frequency	2 MHz to 30 MHz
Material	Plastic housing
